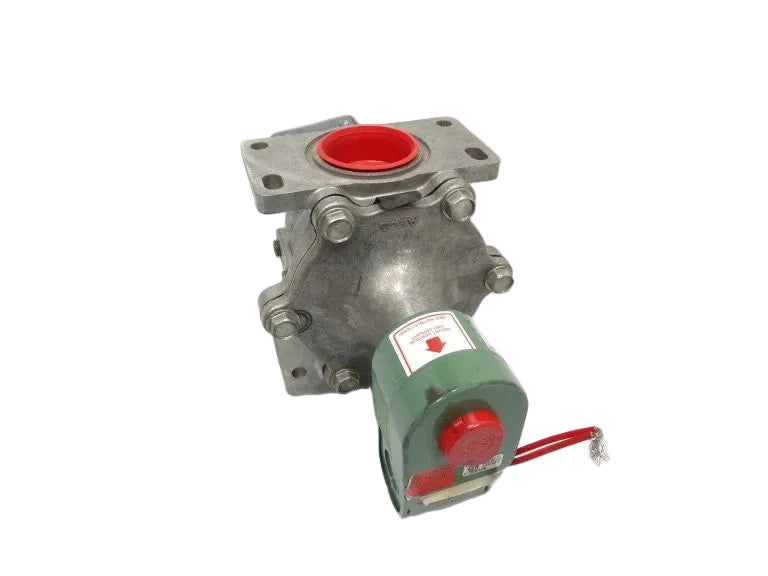

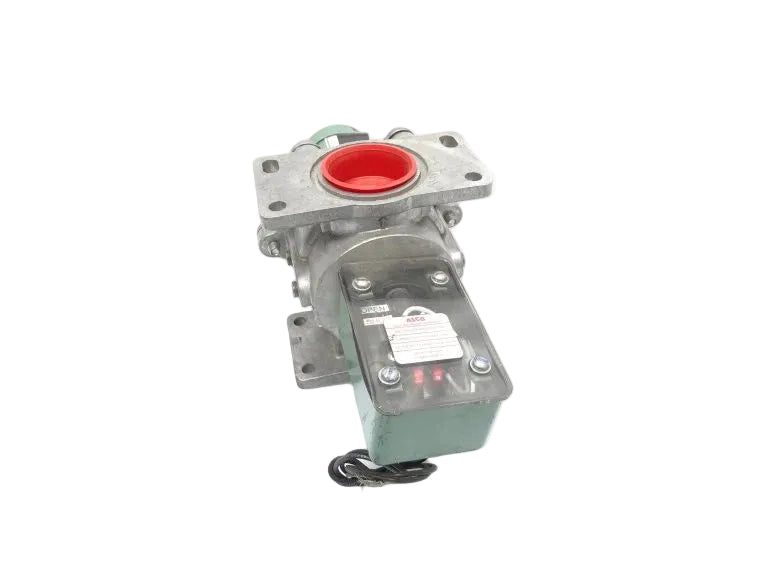

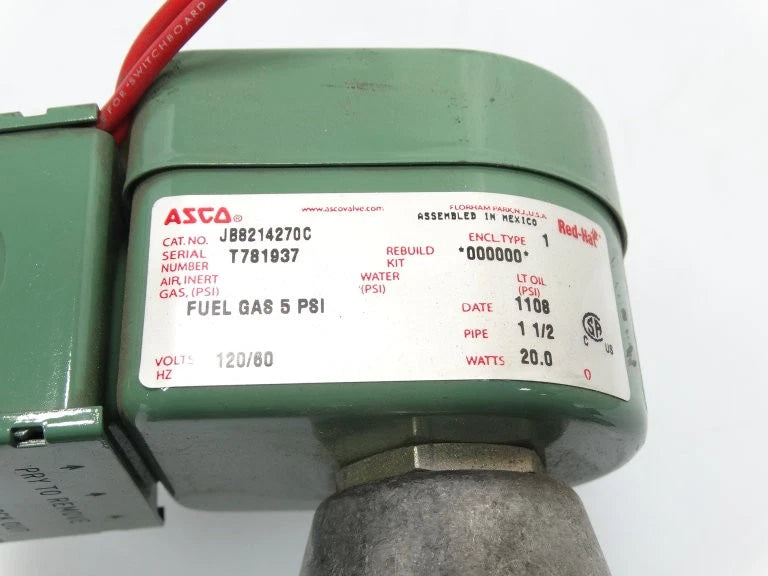

ASCO JB8214270C 1-1/2" 120V NC Gas Shut-Off Solenoid Valve
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JB8214270C
Description
ASCO JB8214270C is a 1-1/2-inch normally closed gas shut-off solenoid valve designed for reliable on/off control of fuel gas in commercial and industrial combustion systems. Operating at 120V AC with a 0–5 PSI pressure range and 35 Cv flow capacity, it provides high-flow, fail-safe gas isolation for burners, boilers, and heating equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Part Number | JB8214270C |
| Series | 8214 Series |
| Product Type | Gas Shut-Off Solenoid Valve |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Port Size | 1-1/2 in. NPT |
| Orifice Size | 1-5/8 in. |
| Input Voltage | 120 VAC / 60 Hz; 110 VAC / 50 Hz |
| Power Rating | 20 W |
| Pressure Range | 0–5 PSI |
| Flow Factor | 35 Cv |
| Body Material | Aluminum |
| Seal Material | NBR |
| Enclosure Type | NEMA Type 1 |
| Electrical Connection | Junction Box |
| Test Port | 1/8 in. NPT |
| Application | Fuel Gas Shut-Off |
| Approvals | UL / CSA / FM |
| Country of Origin | Mexico |
| Weight | Approx. 4.7 lbs |
Information About JB8214270C
The ASCO JB8214270C is a Series 8214 gas safety shut-off solenoid valve designed for commercial and industrial fuel gas applications. It features a normally closed configuration that automatically stops gas flow when electrical power is removed. The valve combines a 1-1/2-inch NPT connection with a 35 Cv flow factor for high-capacity gas control systems. Its integrated junction box provides protected field wiring for the 120V AC control coil while supporting dependable operation in indoor installations.
Key Features:
- Normally Closed Design: Provides fail-safe fuel gas shutoff when the solenoid is de-energized.
- 1-1/2-Inch NPT Ports: Supports high-capacity commercial and industrial gas piping installations.
- 120V AC Coil: Operates at 120V AC/60 Hz or 110V AC/50 Hz.
- 0–5 PSI Pressure Range: Designed for low-pressure fuel gas control with zero minimum pressure differential.
- High Flow Capacity: Provides a 35 Cv flow factor for demanding gas burner applications.
- Junction Box Connection: Integrated electrical junction box simplifies protected field wiring.
- Aluminum Body: Provides durable construction while keeping overall valve weight relatively low.
- Safety Certifications: Designed for critical gas applications with UL, CSA, and FM approvals.
The ASCO JB8214270C delivers the reliability and precision required for high-flow fuel gas shut-off and industrial combustion control applications.
