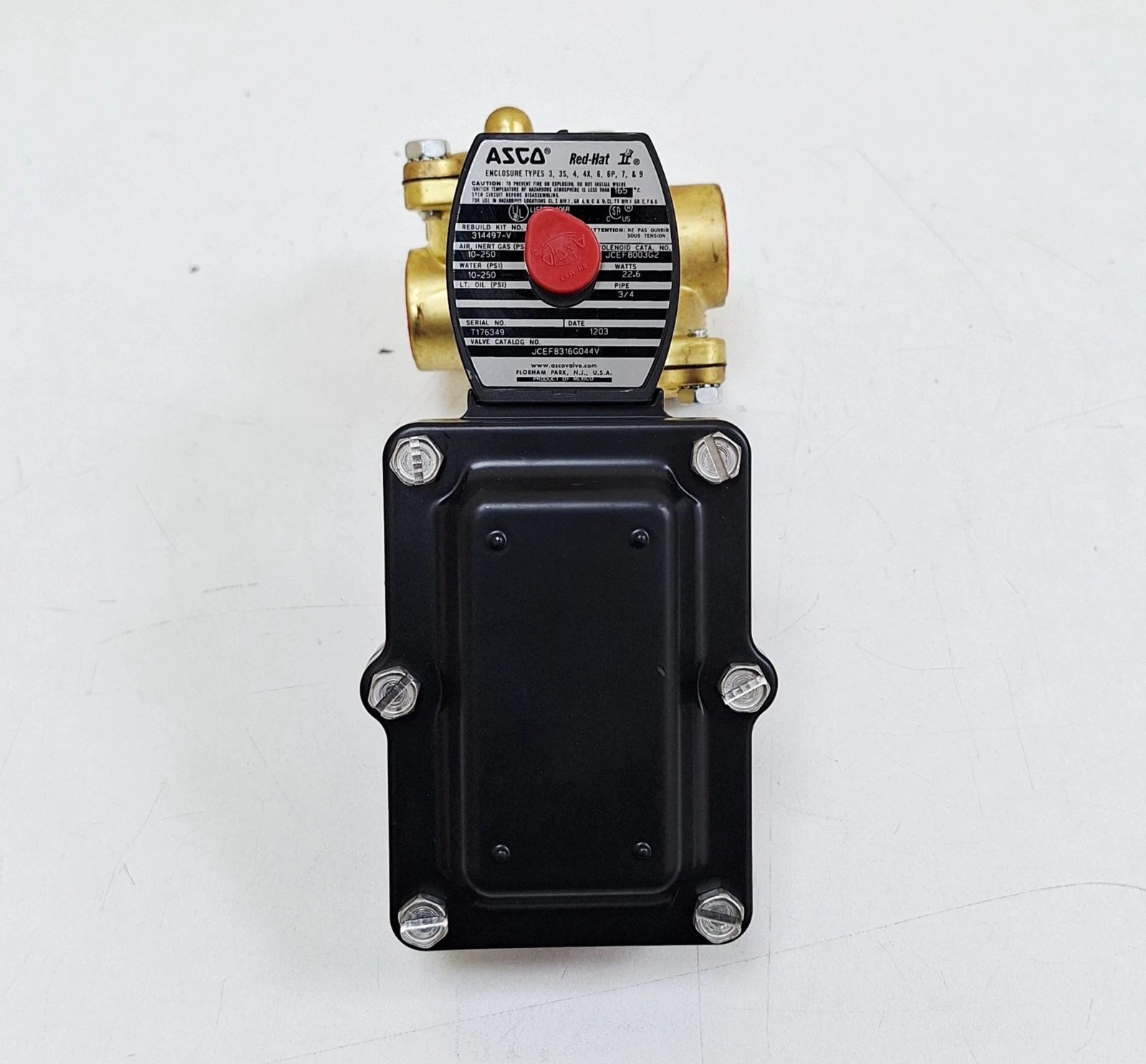

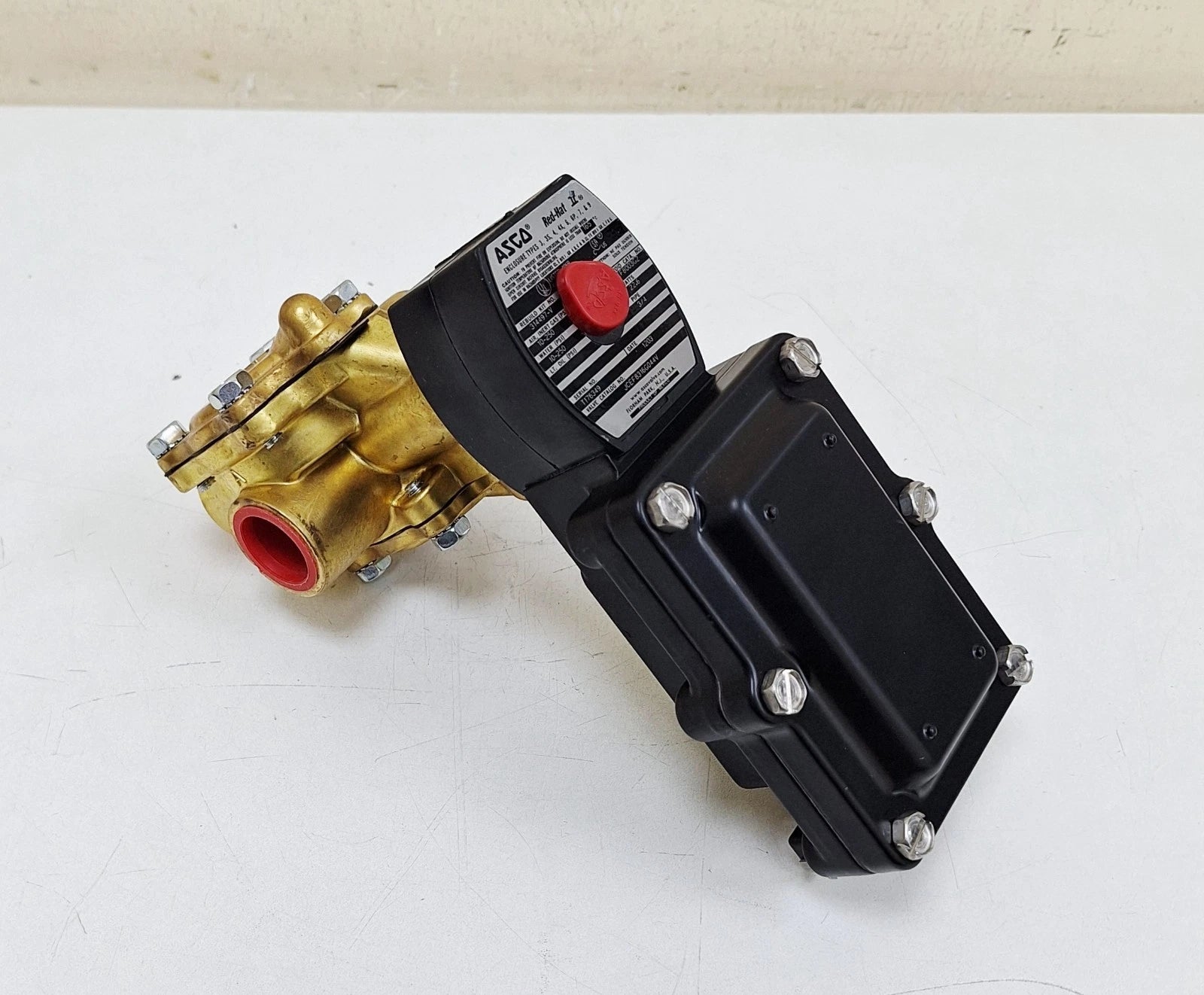

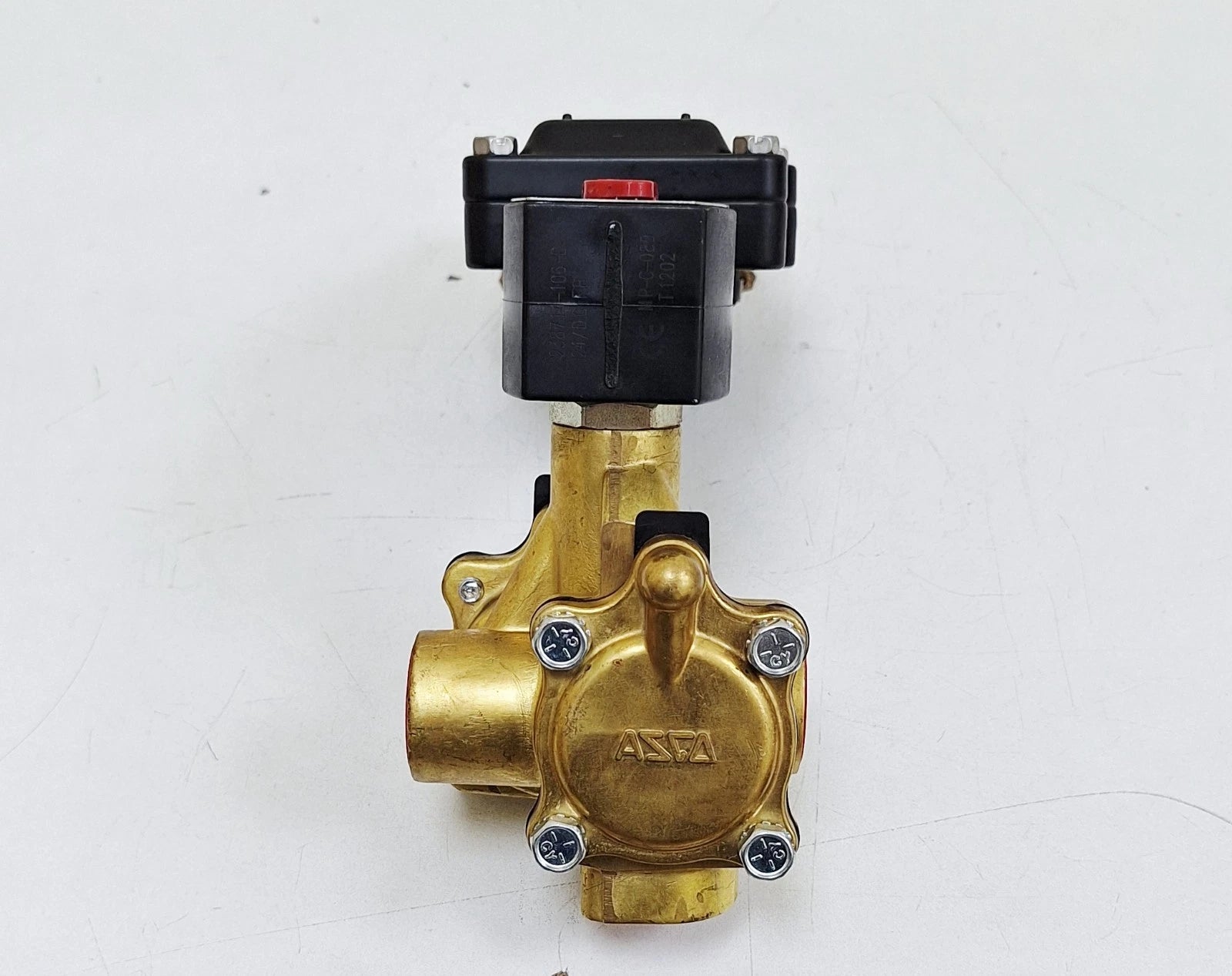

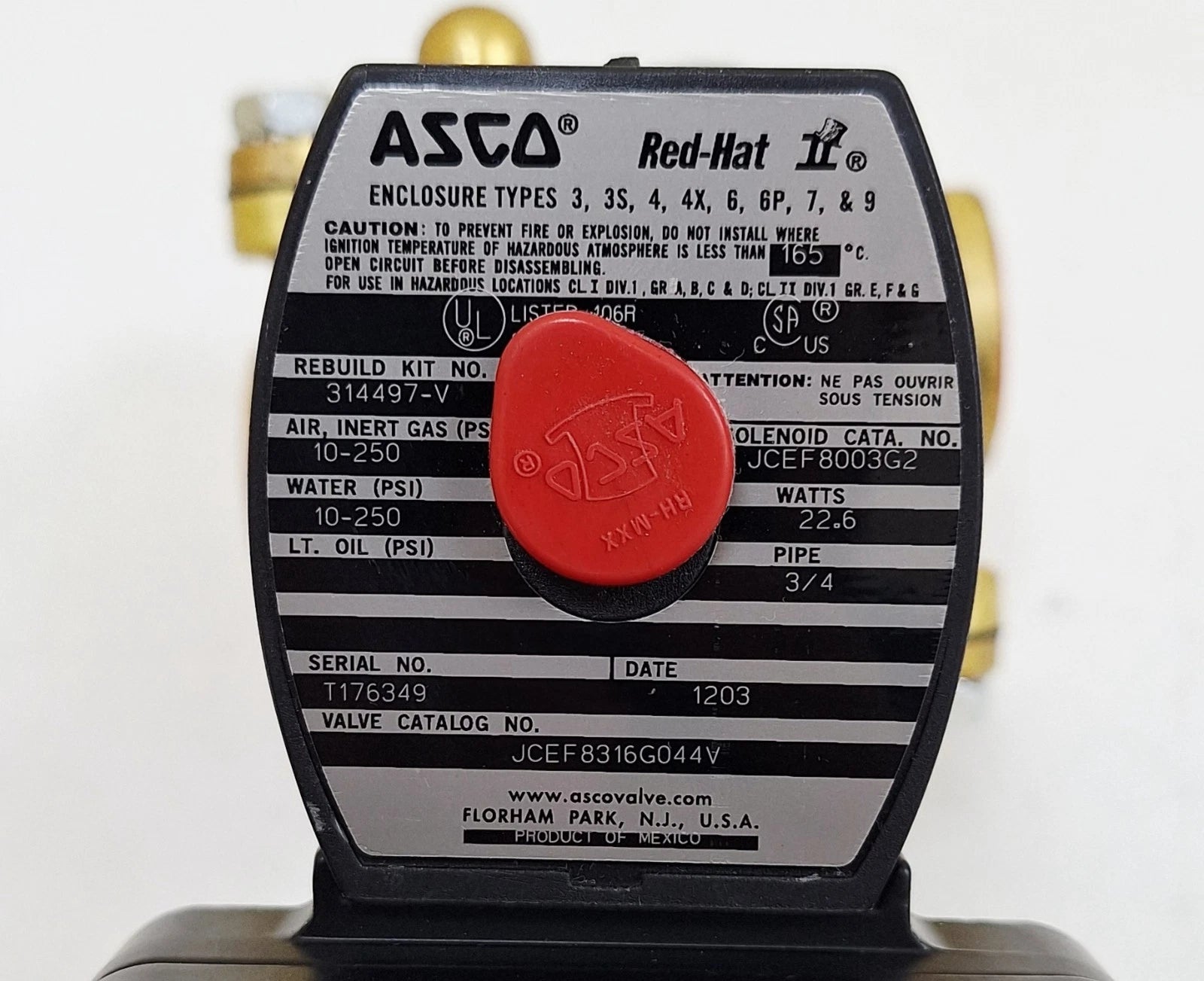

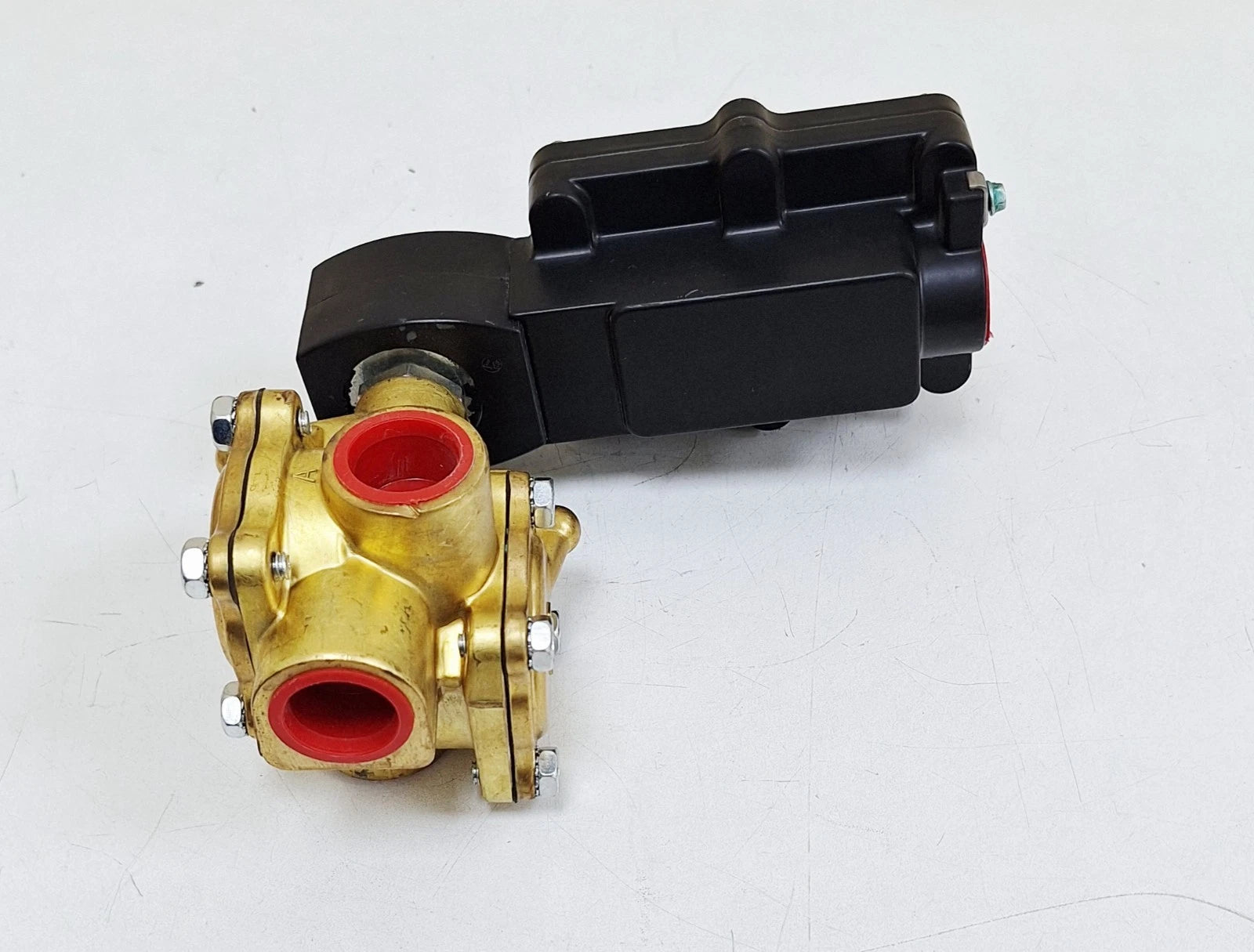

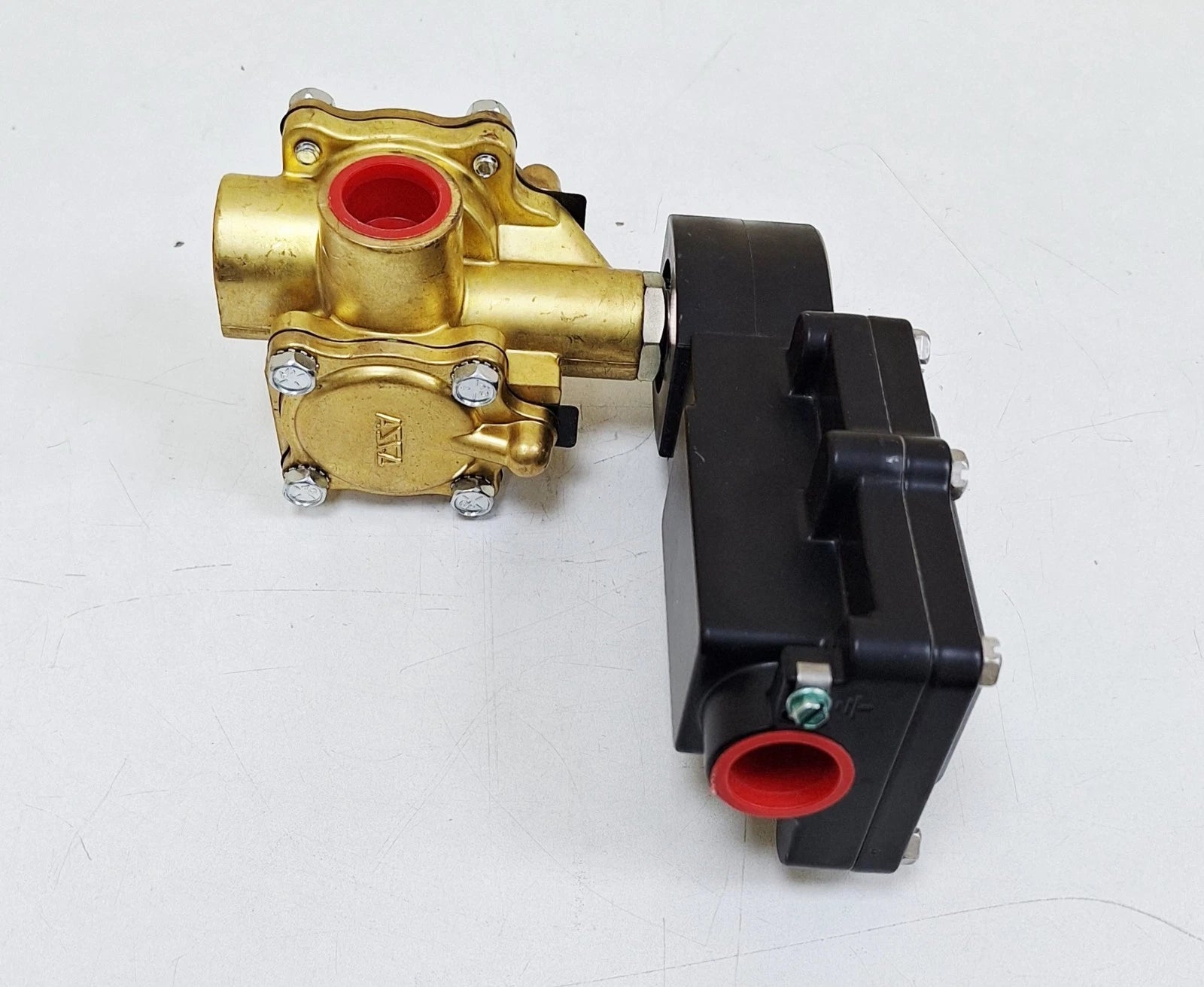

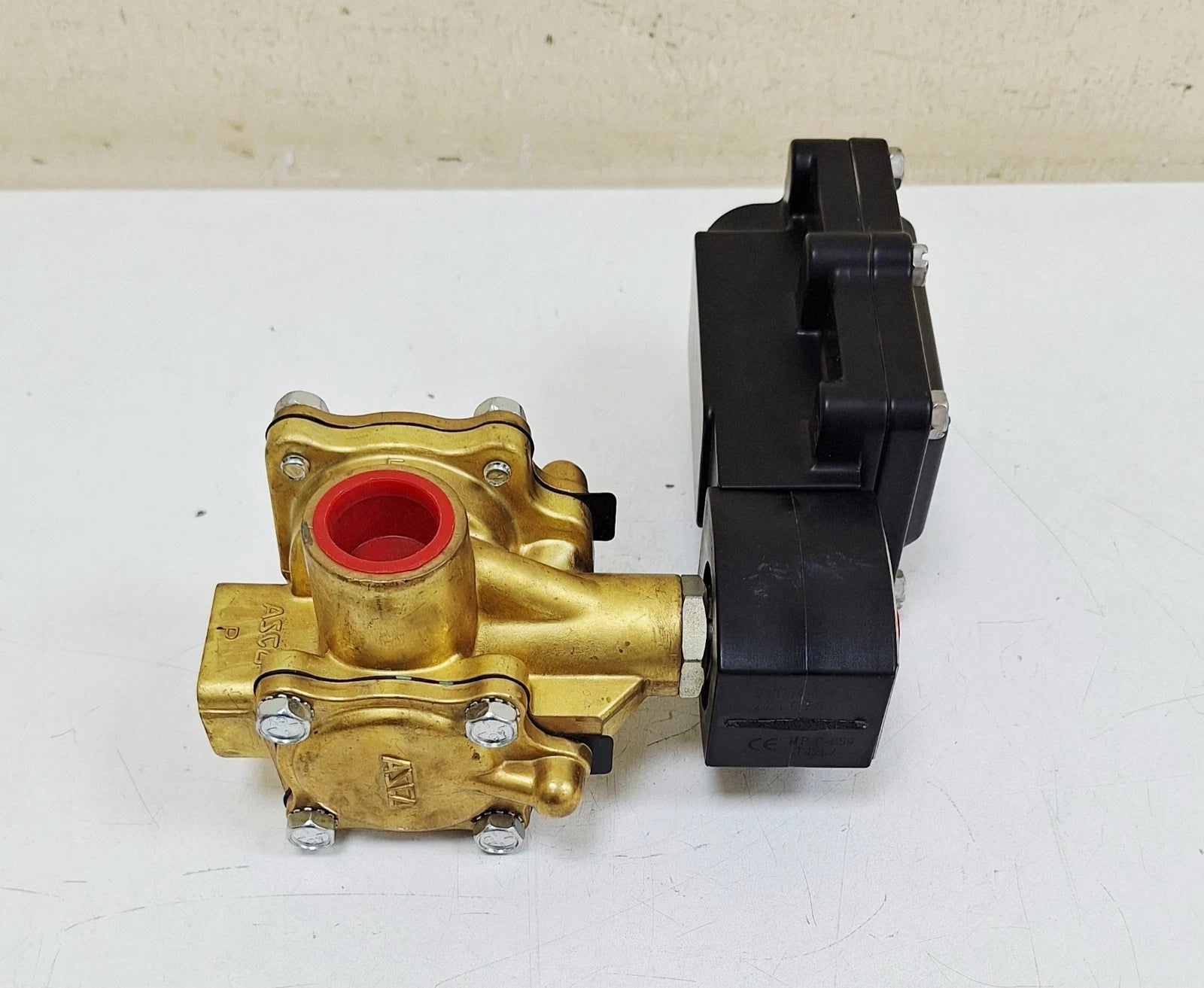

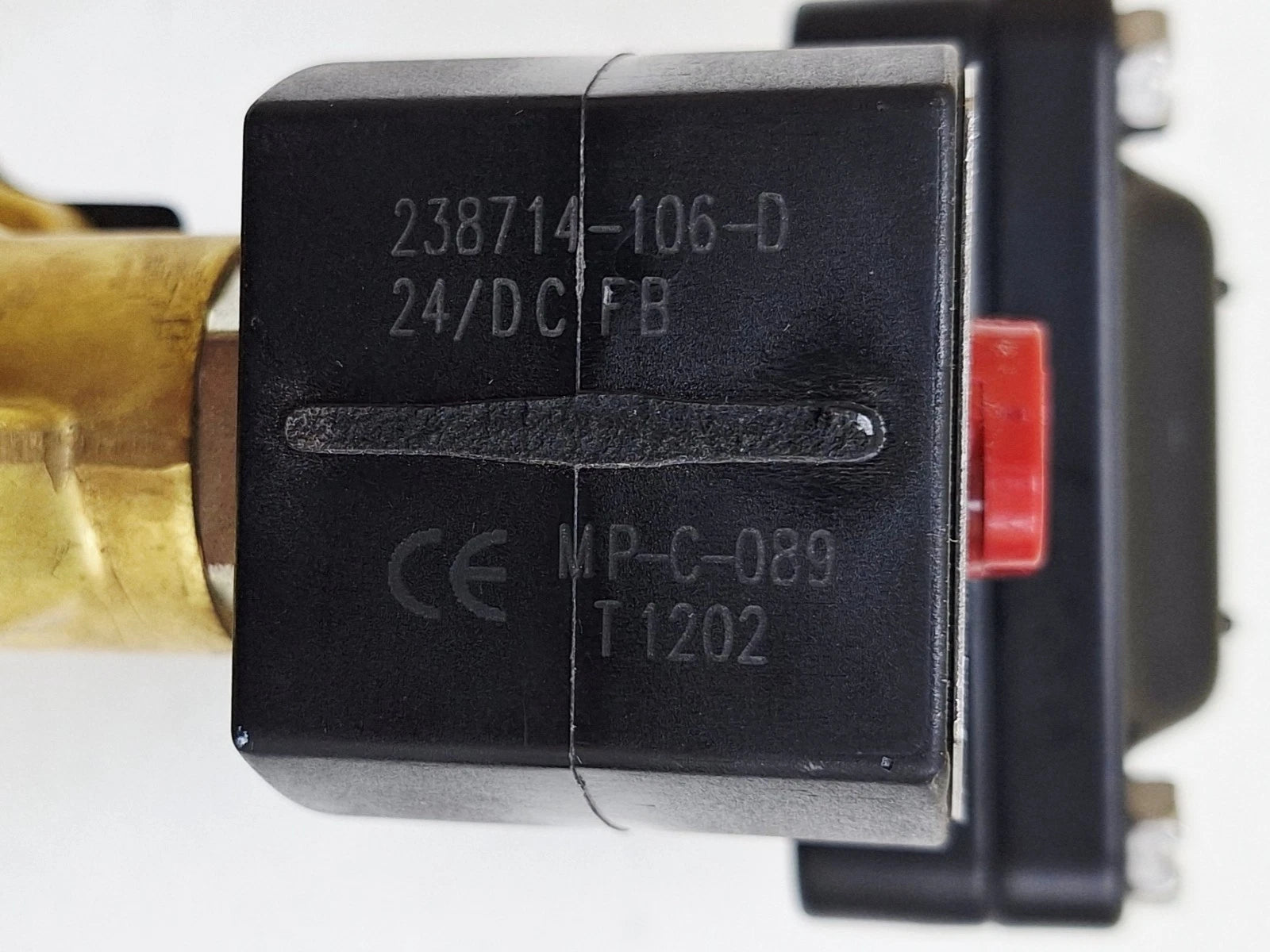

ASCO JCEF8316G044V Series 8316 Explosion-Proof Three-Way Solenoid Valve for Hazardous Industrial Applications
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JCEF8316G044V
Description
The ASCO JCEF8316G044V is a Series 8316 three-way pilot-operated solenoid valve designed for dependable control of air and inert gas in industrial pneumatic systems installed in hazardous locations. It incorporates an explosion-proof junction box enclosure that protects electrical connections while maintaining reliable valve performance in classified environments. The valve is commonly used for piloting large actuators, controlling pneumatic cylinders, and providing rapid operation in process automation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | JCEF8316G044V |
| Subcategory | Solenoid Valve |
| Series | 8316 |
| Valve Type | Pilot-Operated Solenoid Valve |
| Valve Function | Three-Way, Normally Closed |
| Body Material | Brass |
| Port Size | 3/4 Inch National Pipe Thread |
| Orifice Size | 11/16 Inch |
| Operating Media | Air, Inert Gas |
| Operating Pressure Range | 10 to 250 PSI |
| Power Consumption | 17.1 Watts |
| Enclosure Type | Explosion-Proof Junction Box |
| Hazardous Location Rating | Class I Division 1 / Zone 1 (configuration dependent) |
| Typical Applications | Pneumatic Actuators, Process Automation, Hazardous Locations |
| Weight | 3.00 lbs |
Information About JCEF8316G044V
The JCEF8316G044V is based on the ASCO Series 8316 family of high-flow three-way pilot-operated solenoid valves developed for industrial automation and process control. This model combines a brass valve body with an explosion-proof junction box enclosure that is factory assembled for installation in hazardous locations requiring protection against flammable gases and dust. The valve is engineered to operate with compressed air and inert gases while supporting operating pressures from 10 to 250 pounds per square inch, depending on the specific configuration. Its rugged construction, industrial-grade sealing components, and hazardous-area enclosure make it suitable for refineries, chemical processing facilities, oil and gas installations, power generation plants, and other demanding industrial environments.
Key Features:
- Series 8316 Construction: Designed for high-flow industrial pneumatic control applications.
- Three-Way Pilot-Operated Valve: Provides dependable directional control for pneumatic actuators and process equipment.
- Explosion-Proof Junction Box: Protects electrical wiring in hazardous locations while simplifying installation.
- Brass Valve Body: Offers durability and corrosion resistance for long-term industrial service.
- Hazardous Area Certification: Suitable for installations requiring explosion-proof electrical protection.
- High Operating Pressure: Supports pneumatic systems operating up to 250 pounds per square inch depending on configuration.
- Factory-Assembled Enclosure: Reduces installation time by eliminating the need for a separate explosion-proof splice box.
- Industrial Automation Application: Ideal for actuator piloting, valve automation, and process control systems.
The JCEF8316G044V delivers the reliability and precision required for hazardous-location pneumatic control, industrial process automation, and critical actuator applications.
