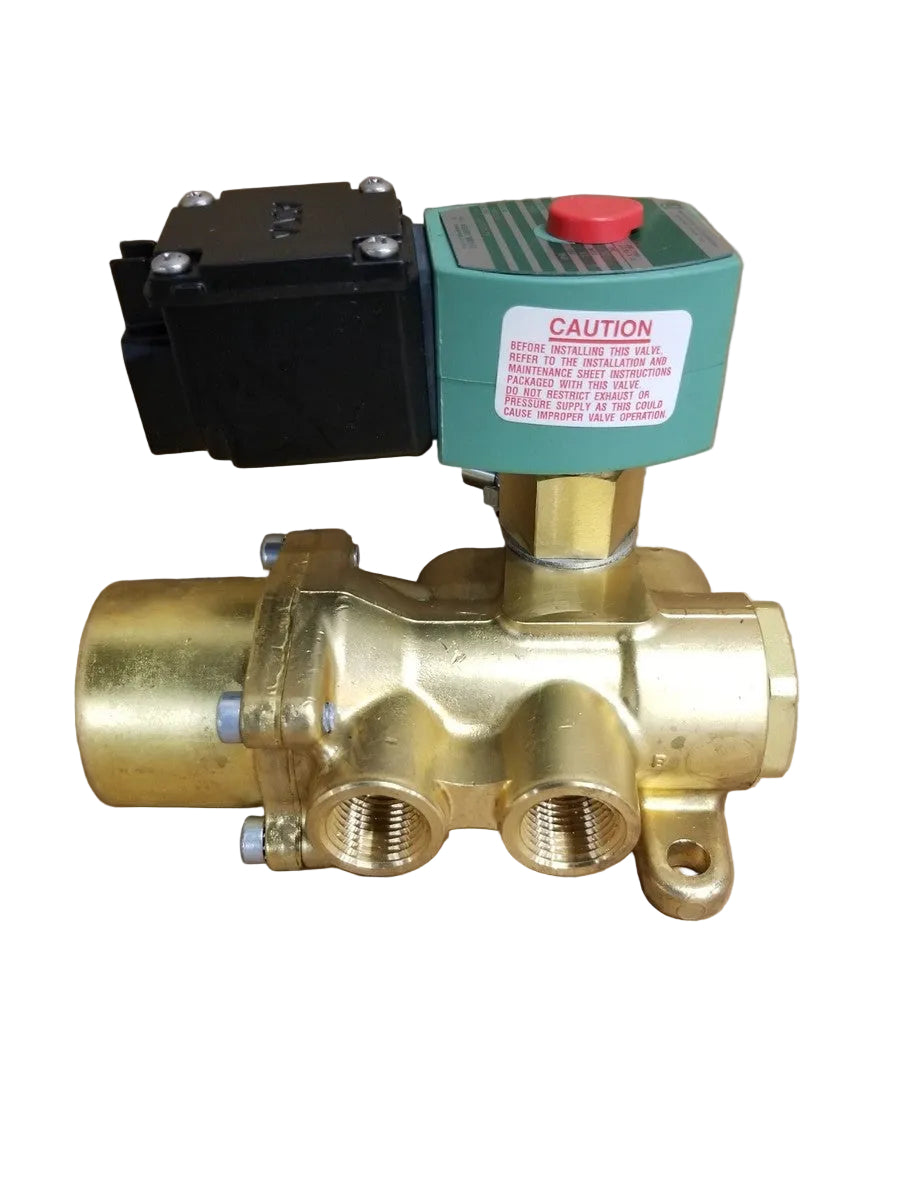

ASCO JKF8344G074MO RedHat 4-Way 1/2" NPT 120 VAC Solenoid Valve
- Regular price
- $2,465.00
- Sale price
- $2,465.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JKF8344G074MO
Description
The ASCO JKF8344G074MO is a RedHat 4-way solenoid valve designed for directional control of pneumatic actuators, cylinders, and compatible fluid-control equipment. It combines a 1/2-inch NPT brass valve body, 120 VAC coil, manual operator, and junction-box enclosure for reliable industrial air, inert gas, water, and light-oil service.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Industrial Valves |
| Part Number | JKF8344G074MO |
| Subcategory | Solenoid Valves |
| Alternate Part Number | JKF8344G74MO |
| Series | ASCO RedHat 8344 Series |
| Product Type | 4-Way Solenoid Valve |
| Primary Application | Actuator and Directional Flow Control |
| Port Size | 1/2 in NPT |
| Connection Type | Female Threaded NPT |
| Body Material | Brass |
| Coil Voltage | 120 VAC, 60 Hz / 110 VAC, 50 Hz |
| Manual Operator | Yes |
| Electrical Enclosure | Junction Box (JK) |
| Compatible Media | Air, Inert Gas, Water, Light Oil |
| Pressure Range – Air / Inert Gas | 10–150 psi |
| Pressure Range – Water | 10–125 psi |
| Pressure Range – Light Oil | 25–125 psi |
| Control Function | Directional Switching |
| Weight | Approximately 5 lb (2.3 kg) |
Information About JKF8344G074MO
The JKF8344G074MO is part of the ASCO 8344 Series of 4-way general-service solenoid valves engineered for actuator and process-control applications. Its brass construction and threaded 1/2-inch NPT ports provide a durable connection for compatible pneumatic and fluid lines. The valve is rated for air and inert gas service from 10 to 150 psi, while water service is rated from 10 to 125 psi and light-oil service from 25 to 125 psi. The JK prefix identifies a junction-box electrical enclosure configuration, while the MO suffix indicates an integrated manual operator that allows mechanical valve actuation when required.
Key Features:
- 4-Way Flow Control: Directs supply and exhaust flow for controlling double-acting actuators and cylinders.
- 1/2-Inch NPT Connections: Provides standard threaded ports for integration into industrial piping and pneumatic systems.
- 120 VAC Solenoid: Configured for 120 VAC at 60 Hz and 110 VAC at 50 Hz electrical supplies.
- Brass Body: Provides durable construction for general-purpose pneumatic and fluid-control installations.
- Manual Operator: Allows the valve to be manually shifted for setup, testing, commissioning, or service procedures.
- Junction Box Enclosure: JK configuration provides an enclosed electrical termination arrangement for field wiring.
- Air and Inert Gas Service: Supports operating pressures from 10 to 150 psi.
- Water Compatibility: Suitable for compatible water-control applications at pressures from 10 to 125 psi.
- Light Oil Service: Supports light-oil applications within an operating pressure range of 25 to 125 psi.
- Actuator Control Application: Designed for directional control of industrial pneumatic actuators and related equipment.
- RedHat Design: Uses ASCO solenoid actuation technology for electrically controlled directional switching.
- Alternate Part Number: Also identified as JKF8344G74MO in supplier and inventory references.
The JKF8344G074MO delivers the reliability and precision required for industrial actuator control, pneumatic automation, and general-purpose directional fluid systems.
