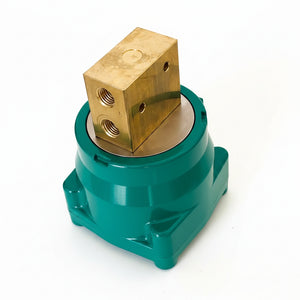

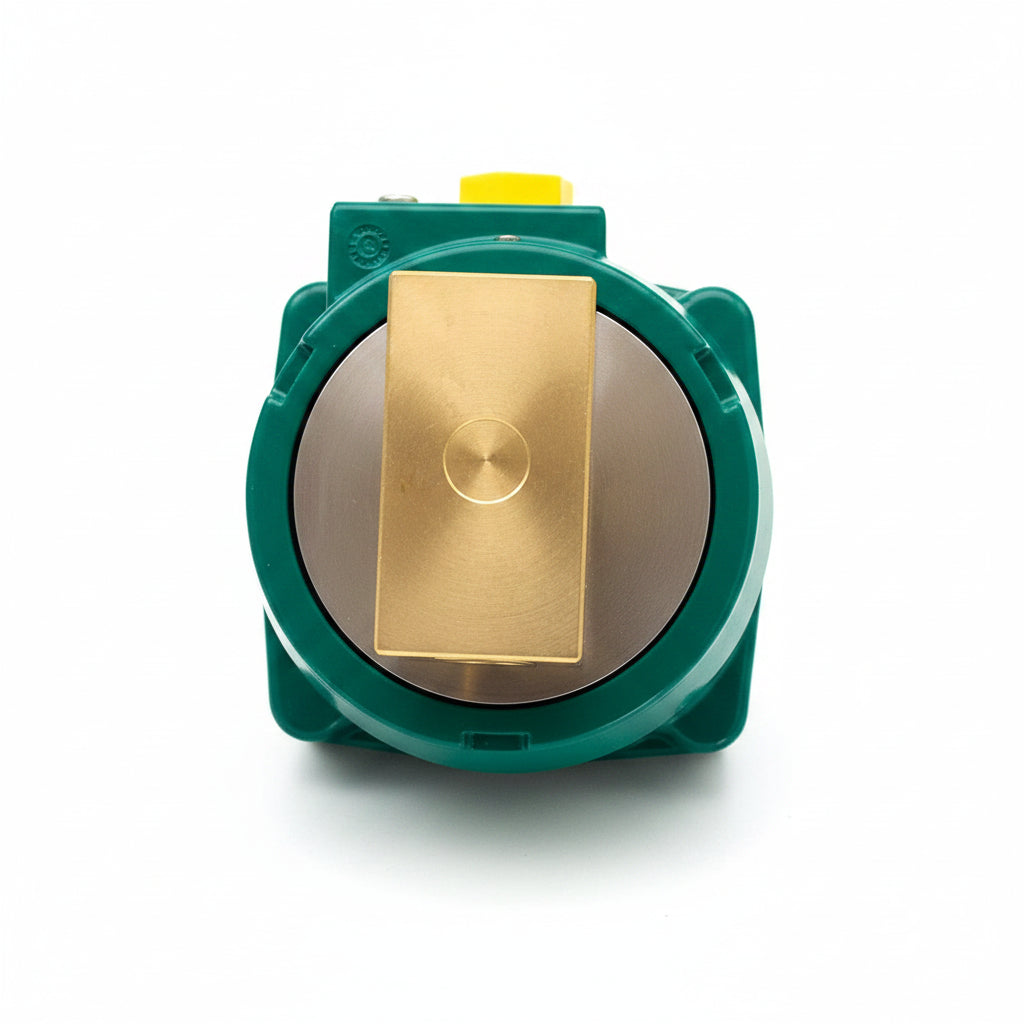

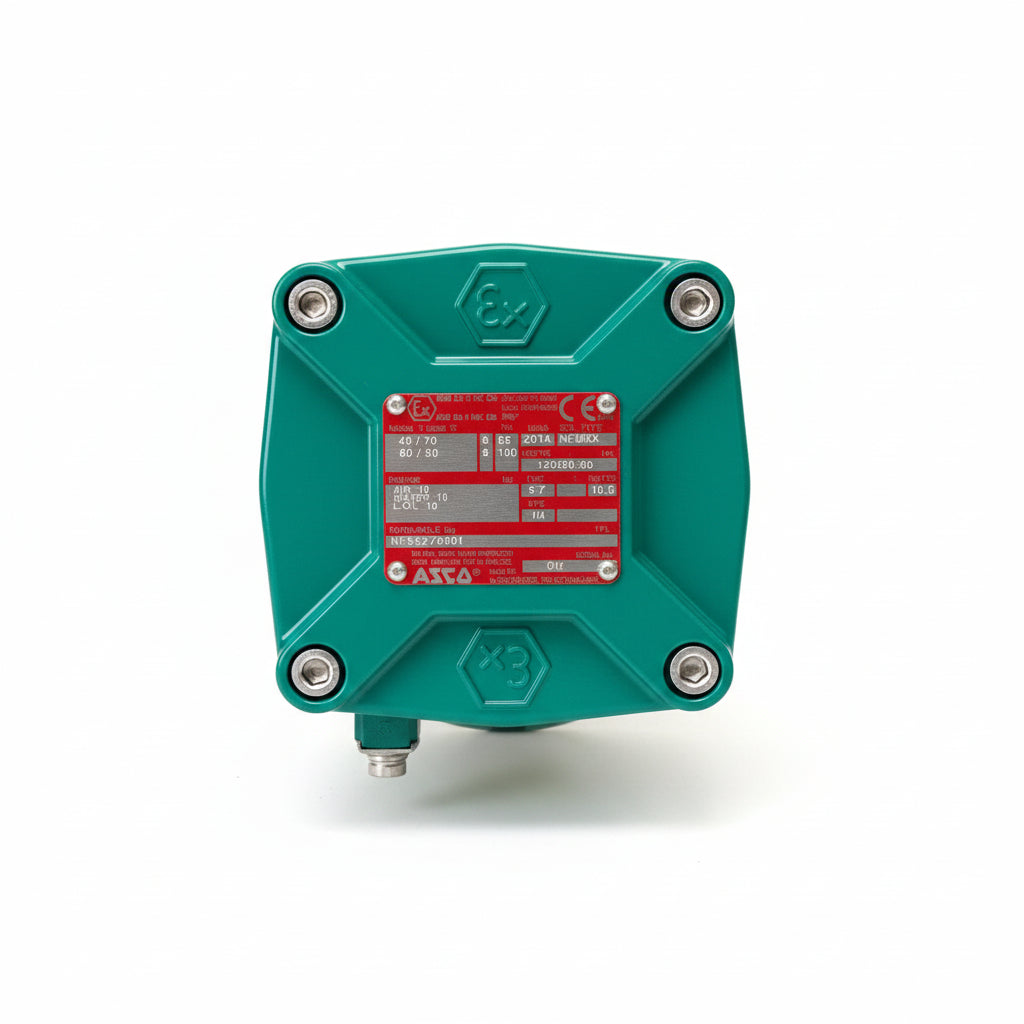

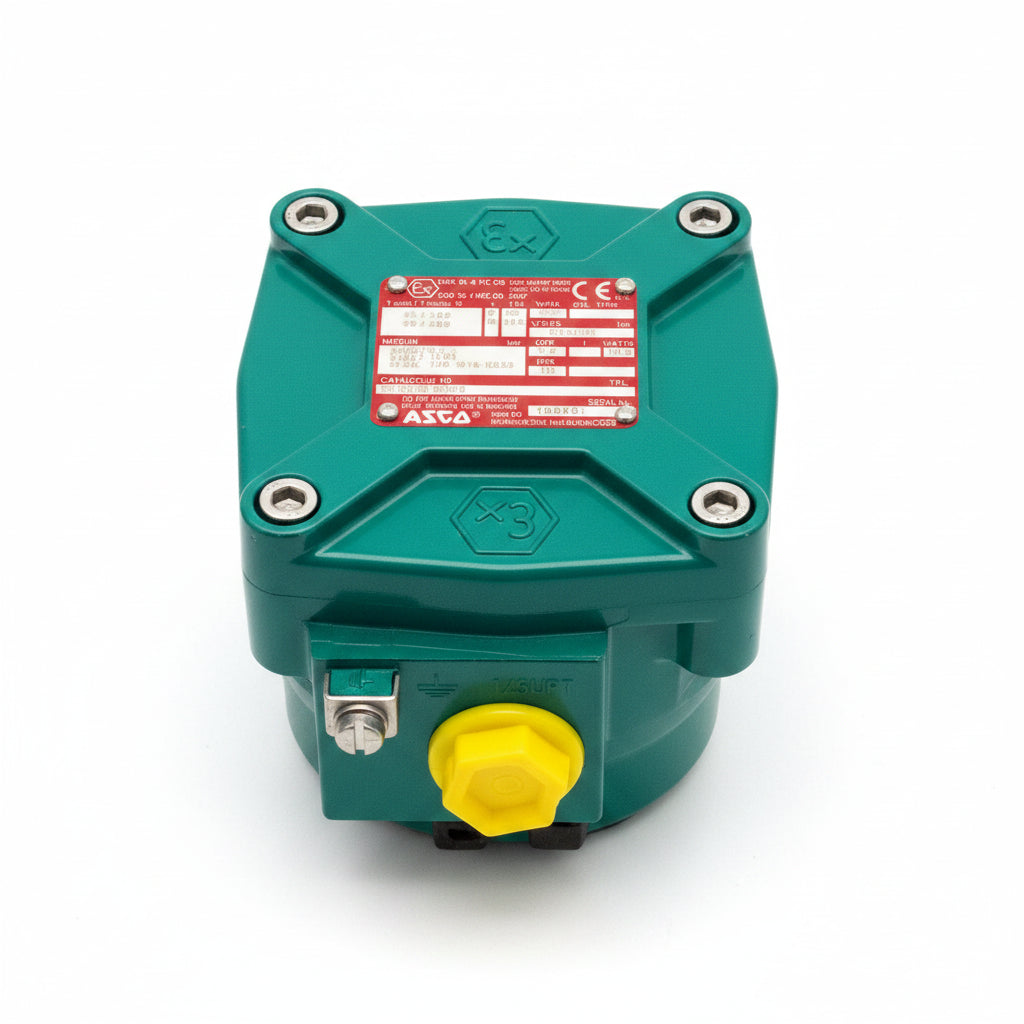

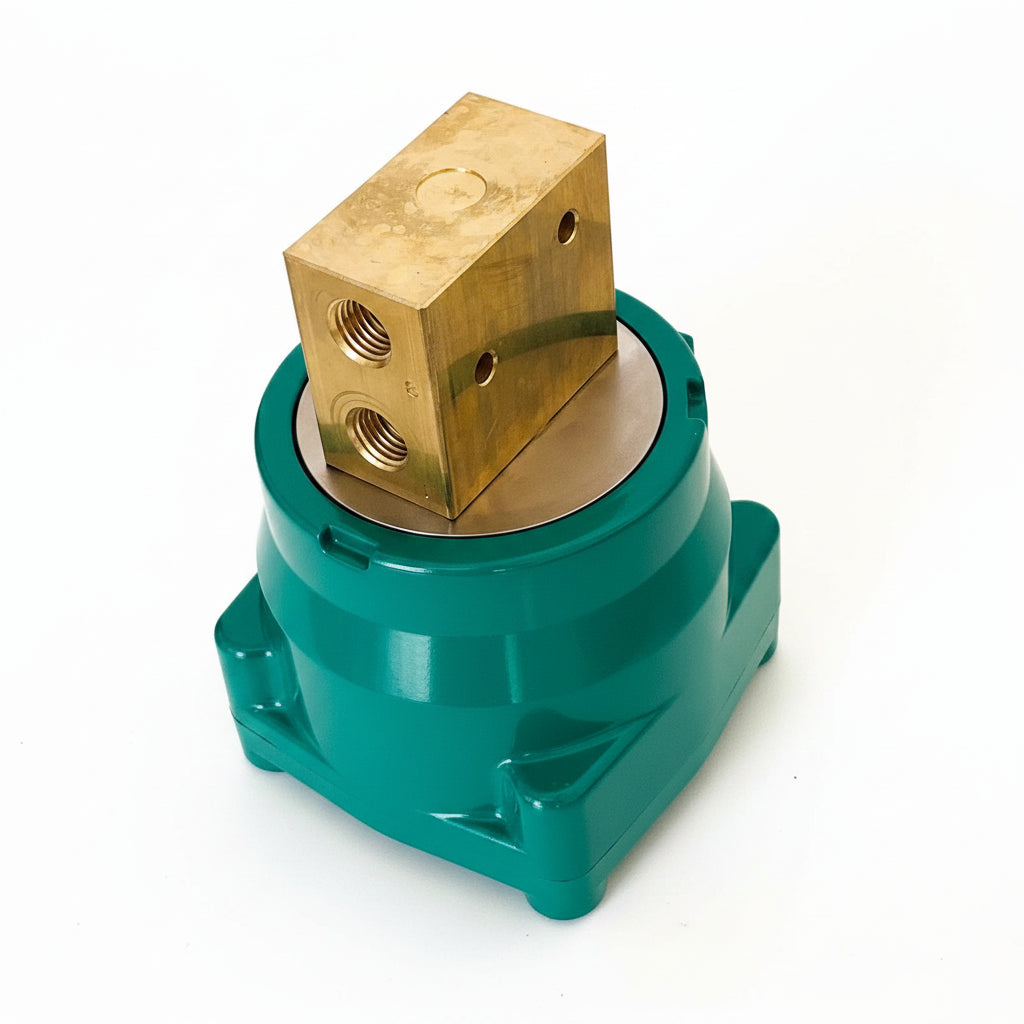

Asco NF8327B001 Series 327 Explosion-Proof 3/2 Universal Solenoid Valve 110V AC
- Regular price
- $1,057.00
- Sale price
- $1,057.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NF8327B001
Description
Asco NF8327B001 is a Series 327 explosion-proof solenoid valve designed for hazardous-area industrial fluid-control applications. It uses a direct-operated, balanced-poppet 3/2 universal configuration with a 5.7 mm orifice and a working pressure range from 0 to 10 bar.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Industrial Valves |
| Part Number | NF8327B001 |
| Subcategory | Explosion-Proof Solenoid Valves |
| Series | 327 |
| Function | 3/2 Universal |
| Operation Type | Direct Operated / Balanced Poppet |
| Operator Type | NF |
| Working Pressure Minimum | 0 bar |
| Working Pressure Maximum | 10 bar |
| Orifice Size | 5.7 mm |
| Flow Coefficient (Kv) | 0.45 m³/h / 7.5 L/min |
| Port Size | 1/4 in |
| Thread Type | NPT |
| Voltage | 110V AC |
| Power Level | BP |
| Explosion Protection | Ex db IIC Gb / Ex tb IIIC Db |
| Ingress Protection | IP66/67 |
| Applicable Standards | EN/IEC 60079-1, EN/IEC 60079-31 |
| Overall Dimensions | Approx. 97 x 54 x 136 mm |
| Weight | 2.6 kg / 5.73 lb |
Information About NF8327B001
The NF8327B001 is an Asco Series 327 solenoid valve combining direct operation with a balanced-poppet design for process-control applications. Its 3/2 universal function allows flexible routing of compatible process media while operating without a minimum pressure differential. The NF explosion-protected solenoid construction is certified to EN/IEC 60079 standards and carries Ex db IIC / Ex tb IIIC hazardous-area protection with IP66/67 environmental protection. Manufacturer documentation identifies NF8327B001 as a Type 01 configuration and specifies an assembly weight of 2.6 kg including the coil.
Key Features:
- Explosion-Proof Construction: NF solenoid configuration is designed for installation in specified hazardous industrial environments.
- Series 327 Design: Uses Asco's direct-operated balanced-poppet valve architecture for process control.
- 3/2 Universal Function: Provides three ports and two positions with a universal flow arrangement.
- Zero Minimum Pressure: Operates from a minimum working pressure of 0 bar without requiring line pressure for actuation.
- 10-Bar Maximum Pressure: Rated for a maximum working pressure of 10 bar in the specified configuration.
- 5.7 mm Orifice: Provides a 5.7 mm flow opening with a Kv coefficient of 0.45 m³/h.
- Hazardous-Area Certification: NF construction complies with EN/IEC 60079-1 and EN/IEC 60079-31 requirements.
- IP66/67 Protection: Provides environmental protection against dust and water ingress for demanding installations.
The NF8327B001 delivers the reliability and precision required for automated fluid control in hazardous industrial and process environments.
