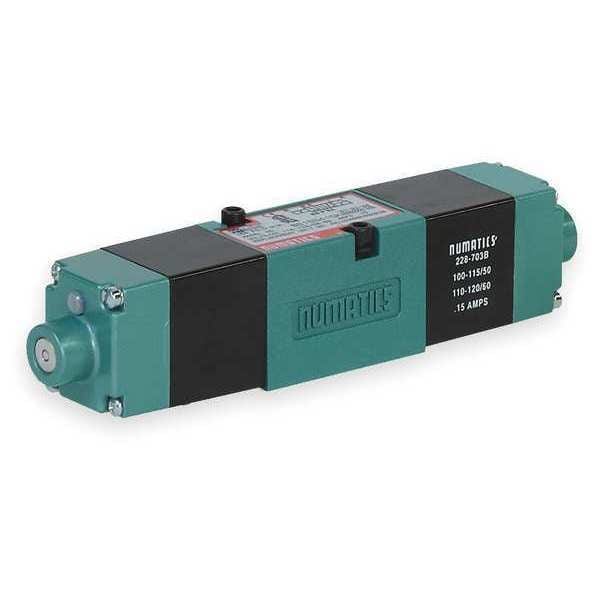

Asco Numatics 081SS400K000030 Mark 8 Double Solenoid Pneumatic Directional Control Valve
- Regular price
- $319.00
- Sale price
- $319.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 081SS400K000030
Description
The Asco Numatics 081SS400K000030 is a double-solenoid pneumatic directional valve for controlling actuator movement in automated machinery. Its two-position, five-port arrangement switches pressure and exhaust paths to operate compatible double-acting cylinders. Direct solenoid actuation supports repeated switching in high cycle-rate applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco Numatics |
| Category | Pneumatic Controls |
| Part Number | 081SS400K000030 |
| Subcategory | Directional Solenoid Valves |
| Series | Mark 8 / 081 |
| Valve Configuration | 4-way, 2-position; five ports (5/2) |
| Actuation / Return | Double direct solenoid / solenoid |
| Shifting Technology | Spool and sleeve |
| Body / Spool Material | Steel body / stainless steel spool |
| Nominal Port Designation | 1/8-inch NPTF; external connections depend on the selected base |
| Coil Supply | 110–120 VAC, 50/60 Hz |
| Electrical Connection | Plug-in with indicator light |
| Manual Override | Flush, non-locking |
| Flow Coefficient | Cv 0.8 for the 1/8-inch configuration |
| Nominal Flow Capacity | 37 SCFM at 80 PSIG upstream pressure, exhausting to atmosphere |
| Operating Pressure Range | Vacuum to 150 PSIG, manufacturer series rating |
| Ambient Temperature Range | −10°F to +115°F (approximately −23°C to +46°C) |
| Enclosure / Duty Rating | NEMA 4 / IP65; continuous-duty solenoids |
| Mounting and Supply Scope | Valve unit only; compatible base or manifold required |
| Weight | 1.16 lb (0.53 kg) |
Information About 081SS400K000030
The 081SS400K000030 is a Mark 8 series valve using spool-and-sleeve shifting technology. Its modular construction fits compatible Mark 8 bases and manifolds. The plug-in electrical arrangement allows valve replacement without disconnecting the base piping or wiring. This configuration includes illuminated AC connections and flush, non-locking manual overrides.
Key Features:
- Double Solenoid Actuation: Uses separate solenoids to shift the valve between its two operating positions.
- Directional Control: Provides 4-way, 2-position operation with five ports, designated 5/2.
- Spool-and-Sleeve Technology: Redirects pressure and exhaust through the internal sliding valve assembly.
- Manual Overrides: Includes flush, non-locking overrides for manual valve actuation.
- Illuminated Connections: Uses plug-in electrical connections with indicator lights.
- AC Coil Supply: Operates from 110–120 VAC at 50/60 Hz.
- Continuous Duty: Uses solenoids rated for continuous energization.
- Modular Installation: Fits compatible Mark 8 mounting bases and manifold assemblies.
The 081SS400K000030 delivers the reliability and precision required for pneumatic actuator sequencing and repeated directional switching in automated machinery.
