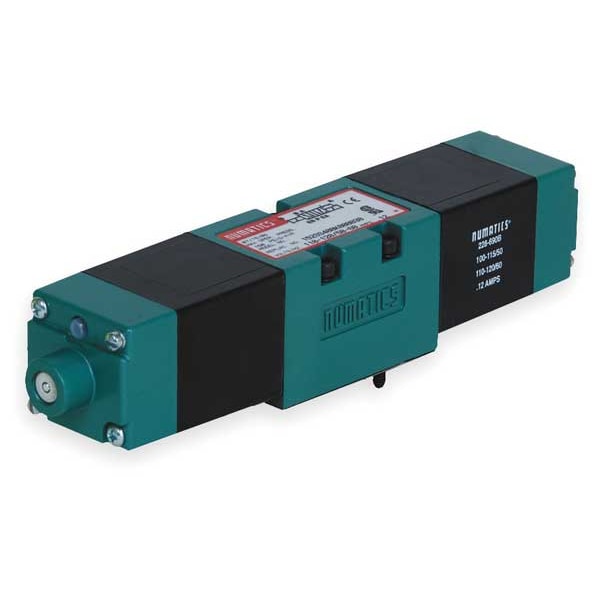

Asco Numatics 152SS400K000030 Mark 15 Double Solenoid Pneumatic Directional Control Valve
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 152SS400K000030
Description
The Asco Numatics 152SS400K000030 is a double-solenoid pneumatic directional valve for switching airflow to double-acting actuators. Its two-position, five-port arrangement alternates pressure and exhaust connections to control actuator direction. The 110–120 VAC assembly uses illuminated plug-in connections for installation in compatible machine control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco Numatics |
| Category | Pneumatic Controls |
| Part Number | 152SS400K000030 |
| Subcategory | Directional Solenoid Valves |
| Series | Mark 15 |
| Valve Configuration | 4-way, 2-position; five ports (5/2) |
| Actuation Method | Double direct solenoid |
| Shifting Technology | Spool and sleeve |
| Body Material | Steel |
| Spool Material | Stainless steel |
| Nominal Port Configuration | 1/4-inch NPTF; external connections depend on the selected base |
| Coil Supply | 110–120 VAC, 50/60 Hz |
| Electrical Connection | Plug-in AC with indicator light |
| Manual Override | Flush, non-locking |
| Flow Coefficient | Cv 1.4 for the 1/4-inch NPTF configuration |
| Nominal Flow Capacity | 65 SCFM at 80 PSIG upstream pressure, exhausting to atmosphere |
| Series Operating Pressure Range | 28 in. Hg vacuum to 150 PSIG; actuation pressure requirements also apply |
| Ambient Temperature Range | −10°F to +115°F (approximately −23°C to +46°C) |
| Enclosure / Supply Scope | NEMA 4; valve unit only, mounting assembly not included |
| Weight | 1.76 lb (0.80 kg) |
Information About 152SS400K000030
The 152SS400K000030 is part of Asco Numatics’ Mark 15 series of spool-and-sleeve valves. Its configuration incorporates two direct solenoids and flush, non-locking manual overrides. The valve unit fits compatible Mark 15 bases and manifolds, which provide the external piping connections. Supplied without a mounting assembly, it supports modular installation in pneumatic equipment using matching components.
Key Features:
- Double Solenoid Actuation: Uses separate electrical actuators to select the two directional positions.
- Two-Position Control: Provides 4-way operation through five ports, designated 5/2.
- Spool-and-Sleeve Technology: Switches pressure and exhaust paths through an internal sliding assembly.
- AC Coil Supply: Operates from 110–120 VAC at 50/60 Hz.
- Illuminated Connections: Incorporates AC plug-in wiring with indicator lights.
- Manual Overrides: Includes flush, non-locking overrides for manual actuation.
- Flow Performance: Provides Cv 1.4 for the nominal 1/4-inch NPTF configuration.
- Modular Construction: Fits compatible Mark 15 mounting bases and manifold assemblies.
The 152SS400K000030 delivers the reliability and precision required for pneumatic actuator reversal and directional sequencing in automated machinery.
