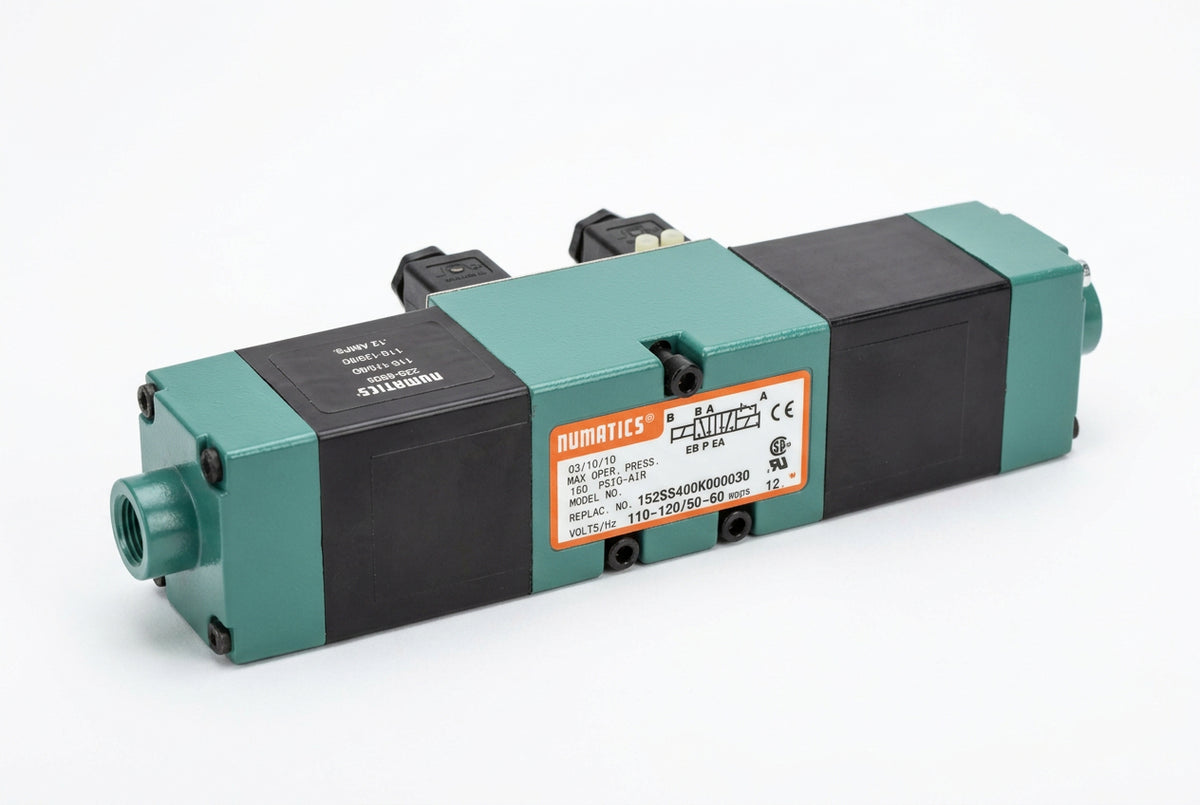

Asco Numatics 152SS500K046T30 Mark 15 Open Center Double Solenoid Directional Valve
- Regular price
- $429.00
- Sale price
- $429.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 152SS500K046T30
Description
The Asco Numatics 152SS500K046T30 is a double-solenoid pneumatic directional valve for controlling actuator flow in automated machinery. Its three-position, five-port configuration provides opposing directional states and an open center position. This AC version includes illuminated plug-in connections and the zinc-plated solenoid armature option.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco Numatics |
| Category | Pneumatic Controls |
| Part Number | 152SS500K046T30 |
| Subcategory | Directional Solenoid Valves |
| Series | Mark 15 |
| Valve Configuration | 4-way, 3-position; five ports (5/3) |
| Center Position | Open center |
| Actuation Method | Double direct solenoid |
| Shifting Technology | Spool and sleeve |
| Nominal Port Configuration | 1/4-inch NPTF; external connections depend on the selected base |
| Coil Voltage | 110–120 VAC |
| Supply Frequency | 50/60 Hz |
| Electrical Connection | Plug-in AC with indicator light |
| Manual Override | Flush, non-locking |
| Armature Option | 046T; zinc-plated solenoid armature |
| Flow Coefficient | Cv 1.4 for the 1/4-inch NPTF configuration |
| Nominal Flow Capacity | 65 SCFM at 80 PSIG upstream pressure, exhausting to atmosphere |
| Series Operating Pressure Range | 28 in. Hg vacuum to 150 PSIG; actuation pressure requirements also apply |
| Ambient Temperature Range | −10°F to +115°F (approximately −23°C to +46°C) |
| Weight | 1.94 lb (0.88 kg) |
Information About 152SS500K046T30
The 152SS500K046T30 is part of Asco Numatics’ Mark 15 series of spool-and-sleeve valves. Its model code identifies double direct solenoid actuation with flush, non-locking manual overrides. The 046T option specifies zinc plating on the solenoid armature. Supplied as a valve unit without mounting, it requires a compatible Mark 15 base or manifold for installation.
Key Features:
- Open Center Configuration: Provides an open center flow arrangement between the two directional operating positions.
- Three-Position Control: Uses a five-port, 4-way configuration designated 5/3.
- Double Solenoid Actuation: Uses separate electrical actuators to command opposing valve positions.
- Spool-and-Sleeve Technology: Switches pressure and exhaust paths through an internal sliding assembly.
- Zinc-Plated Armature: Incorporates the specified 046T solenoid armature treatment.
- Illuminated Connections: Uses AC plug-in electrical connections with indicator lights.
- Manual Overrides: Includes flush, non-locking overrides for manual valve actuation.
- AC Coil Supply: Operates from 110–120 VAC at 50/60 Hz.
The 152SS500K046T30 delivers the reliability and precision required for pneumatic directional switching and open-center operation in industrial automation systems.
