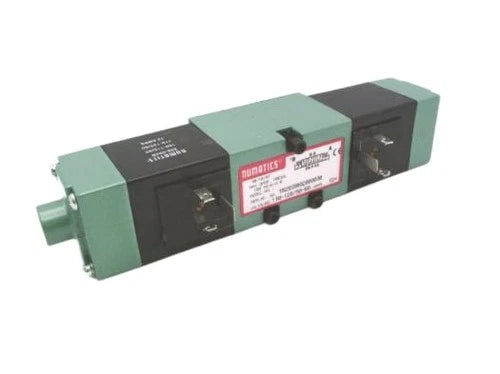

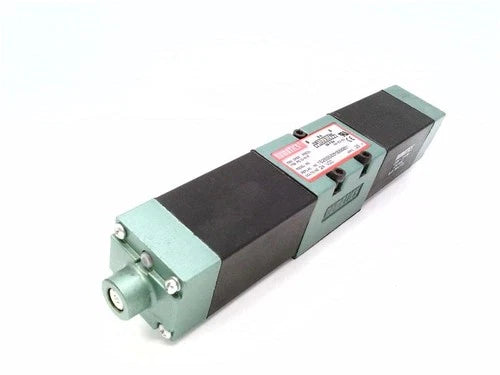

Asco Numatics 152SS500M000061 Mark 15 Open Center Double Solenoid Directional Valve
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 152SS500M000061
Description
The Asco Numatics 152SS500M000061 is a double-solenoid pneumatic directional valve for controlling actuator flow in automated equipment. Its three-position, five-port arrangement provides opposing directional states and an open center position. The 24 VDC assembly uses illuminated plug-in connections for integration into compatible pneumatic control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco Numatics |
| Category | Pneumatic Controls |
| Part Number | 152SS500M000061 |
| Subcategory | Directional Solenoid Valves |
| Series | Mark 15 |
| Valve Configuration | 4-way, 3-position; five ports (5/3) |
| Center Position | Open center |
| Actuation Method | Double direct solenoid |
| Shifting Technology | Spool and sleeve |
| Body / Spool Material | Steel body / stainless steel spool |
| Nominal Port Configuration | 1/4-inch NPTF; external connections depend on the selected base |
| Coil Voltage | 24 VDC |
| Electrical Connection | Plug-in DC with indicator light |
| Manual Override | Flush, non-locking |
| Flow Coefficient | Cv 1.4 for the 1/4-inch NPTF configuration |
| Nominal Flow Capacity | 65 SCFM at 80 PSIG upstream pressure, exhausting to atmosphere |
| Series Operating Pressure Range | 28 in. Hg vacuum to 150 PSIG; actuation pressure requirements also apply |
| Ambient Temperature Range | −10°F to +115°F (approximately −23°C to +46°C) |
| Enclosure / Supply Scope | NEMA 4; valve unit only, mounting assembly not included |
| Weight | 2.60 lb (1.18 kg) |
Information About 152SS500M000061
The 152SS500M000061 is part of Asco Numatics’ Mark 15 series of spool-and-sleeve valves. Its model code specifies double direct solenoid actuation with flush, non-locking manual overrides. The open-center configuration supports pneumatic circuits requiring an unblocked center flow arrangement. Supplied as a valve unit without mounting, it requires a compatible Mark 15 base or manifold. externalassets.unilogcorp.com
Key Features:
- Three-Position Operation: Provides two directional switching positions and an open center position.
- Five-Port Configuration: Uses a 4-way, 3-position arrangement designated 5/3.
- Double Solenoid Control: Uses separate electrical actuators to command opposing flow states.
- Spool-and-Sleeve Technology: Routes pressure and exhaust through an internal sliding valve assembly.
- DC Coil Supply: Operates from a 24 VDC electrical supply.
- Illuminated Connections: Incorporates DC plug-in wiring with indicator lights.
- Manual Overrides: Includes flush, non-locking overrides for manual valve actuation.
- Modular Mounting: Fits compatible Mark 15 bases and manifolds supplied separately.
The 152SS500M000061 delivers the reliability and precision required for pneumatic directional switching and open-center control in automated machinery.
