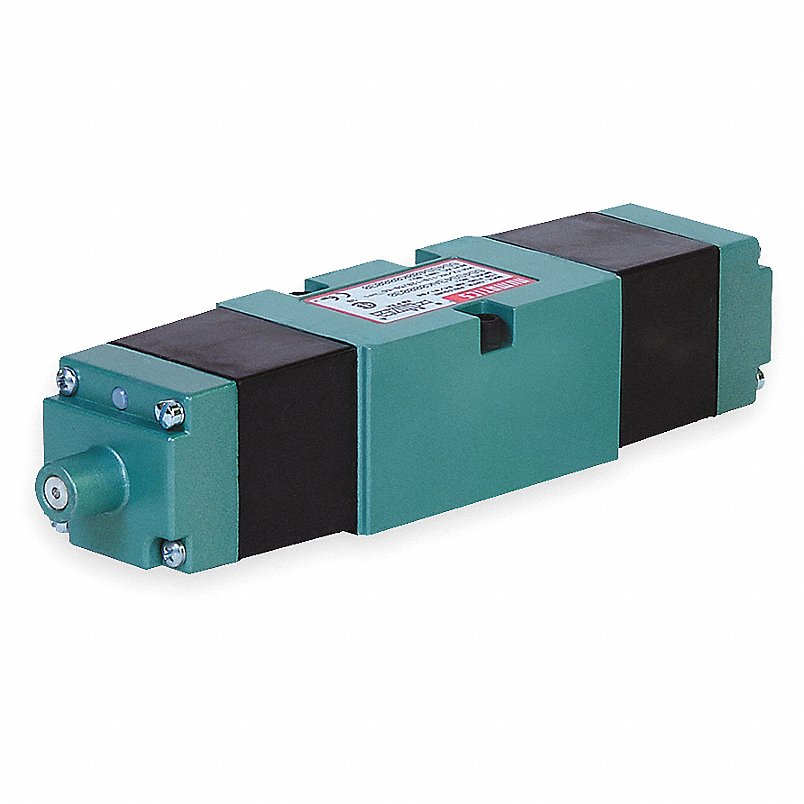

Asco Numatics 554SS600K000030 Mark 55 Closed Center Double Solenoid Directional Valve
- Regular price
- $642.00
- Sale price
- $642.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 554SS600K000030
Description
The Asco Numatics 554SS600K000030 is a double-solenoid directional valve for controlling pneumatic actuators in industrial machinery. Its three-position, five-port configuration provides two directional flow states and a closed center position that blocks the main flow paths. The Mark 55 design offers a Cv of 5.0 for the nominal 1/2-inch configuration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco Numatics |
| Category | Pneumatic Controls |
| Part Number | 554SS600K000030 |
| Subcategory | Directional Solenoid Valves |
| Series | Mark 55 |
| Valve Configuration | 4-way, 3-position; five ports (5/3) |
| Center Position | Closed / blocked center |
| Actuation Method | Double direct solenoid |
| Shifting Technology | Spool and sleeve |
| Body / Spool Material | Steel body / stainless steel spool |
| Nominal Port Configuration | 1/2-inch NPTF; external connections depend on the selected base |
| Coil Supply | 110–120 VAC, 50/60 Hz |
| Electrical Connection | Plug-in AC with indicator light |
| Manual Override | Flush, non-locking |
| Flow Coefficient | Cv 5.0 |
| Nominal Flow Capacity | 232 SCFM at 80 PSIG upstream pressure, exhausting to atmosphere |
| Series Operating Pressure Range | 28 in. Hg vacuum to 150 PSIG; actuation pressure requirements also apply |
| Ambient Temperature Range | −10°F to +115°F (approximately −23°C to +46°C) |
| Enclosure / Supply Scope | NEMA 4 / IP65; valve unit only, mounting assembly not included |
| Weight | 4.85 lb (2.20 kg) |
Information About 554SS600K000030
The 554SS600K000030 is part of Asco Numatics’ Mark 55 series of spool-and-sleeve valves. Its model code identifies double direct solenoid actuation with flush, non-locking overrides. The assembly uses illuminated AC plug-in connections and fits compatible mounting bases or manifolds. It is supplied as a valve unit only, requiring a separate mounting assembly for installation.
Key Features:
- Three-Position Control: Provides two directional operating positions and a central blocked position.
- Closed Center Function: Blocks the main pressure, actuator, and exhaust flow paths in the center position.
- Double Solenoid Actuation: Uses two electrical actuators to command opposing valve positions.
- Spool-and-Sleeve Construction: Routes compressed air through an internal sliding valve assembly.
- High Flow Capacity: Provides Cv 5.0 and nominal flow of 232 SCFM for the 1/2-inch configuration.
- Manual Overrides: Includes flush, non-locking overrides for manual actuation.
- Illuminated Connections: Uses AC plug-in electrical connections with indicator lights.
- Continuous Duty: Incorporates solenoids rated for continuous energization.
The 554SS600K000030 delivers the reliability and precision required for pneumatic directional switching and closed-center control in automated production equipment.
