ASCO P159A111X1X11F0 Series 159 Motorized Actuator for Industrial Gas Safety Shut-Off Valve Applications
- Regular price
- $1,989.00
- Sale price
- $1,989.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P159A111X1X11F0
Description

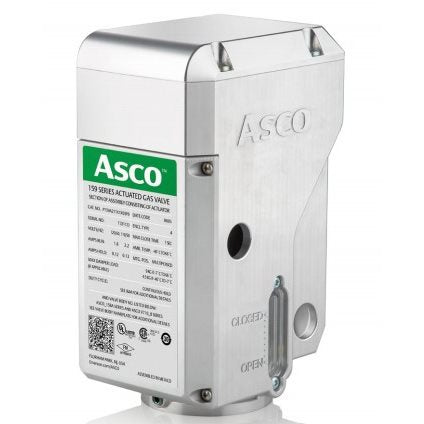

The ASCO P159A111X1X11F0 is a Series 159 motorized actuator designed to operate compatible ASCO Series 158 and V710 gas safety shut-off valves in industrial combustion systems. This electrohydraulic on/off actuator provides fast, repeatable valve positioning while maintaining reliable operation in demanding indoor and outdoor environments. Engineered for 120 VAC 60 Hz and 110 VAC 50 Hz power supplies, it is suitable for boilers, furnaces, ovens, dryers, and other gas-fired equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Pneumatics |
| Part Number | P159A111X1X11F0 |
| Subcategory | Pneumatic Actuator |
| Product Type | Series 159 Motorized Actuator |
| Function | On/Off |
| Actuator Technology | Electrohydraulic Linear Actuator |
| Compatible Valve Series | ASCO Series 158 and V710 Gas Valves |
| Supply Voltage | 120 VAC 60 Hz / 110 VAC 50 Hz |
| Enclosure Type | Watertight, NEMA Type 4, IP65 |
| Opening Time | Fast Opening (Approximately 9 Seconds) |
| Mechanical Option | Damper Shaft with Arm |
| Electrical Connection | 1/2 Inch Threaded Conduit Connection |
| Mounting Position | Any Position |
| Ambient Temperature Range | -40 °F to 150 °F (-40 °C to 66 °C) |
| Approvals | UL Listed, CSA Certified, FM Approved, RoHS Compliant |
| Weight | 10.00 lbs |
Information About P159A111X1X11F0

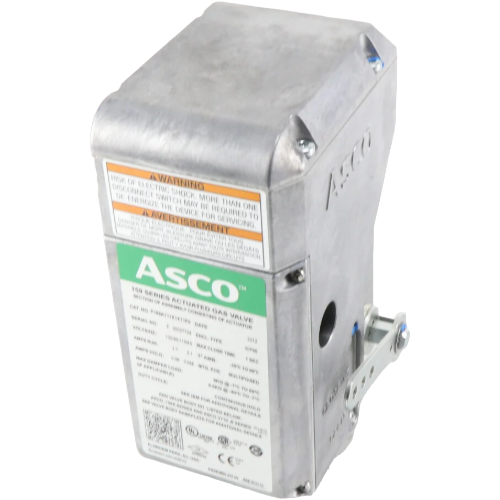

The P159A111X1X11F0 is a member of the ASCO Series 159 family of electrohydraulic motorized actuators developed for automatic gas safety shut-off applications. This model features an on/off operating function, a watertight Type 4 enclosure with a fast-opening mechanism, and a damper shaft with arm for simultaneous valve and damper operation. Designed for direct installation on compatible ASCO Series 158 and V710 gas valve bodies, the actuator delivers accurate positioning through dual internal hydraulic control valves and integrated travel limit switches. Its rugged construction, wide ambient temperature range, and visual position indicators make it suitable for industrial combustion systems operating in demanding environments.
Key Features:
- Series 159 Construction: Designed specifically for ASCO Series 158 and V710 gas valve assemblies.
- Electrohydraulic Operation: Uses a self-contained hydraulic mechanism for smooth and repeatable valve positioning.
- On/Off Control: Provides reliable open and closed valve operation for gas safety shut-off systems.
- Fast Opening Design: Typical opening time of approximately 9 seconds for rapid system response.
- Watertight Enclosure: Type 4 and IP65 enclosure protects internal components in harsh environments.
- Damper Shaft with Arm: Allows simultaneous operation of compatible dampers and gas valves.
- Visual Position Indicators: Displays valve position on both sides of the actuator for simplified inspection.
- Flexible Installation: Can be mounted in any position on compatible valve bodies.
The P159A111X1X11F0 delivers the reliability and precision required for industrial gas safety shut-off valve actuation and combustion control applications.
