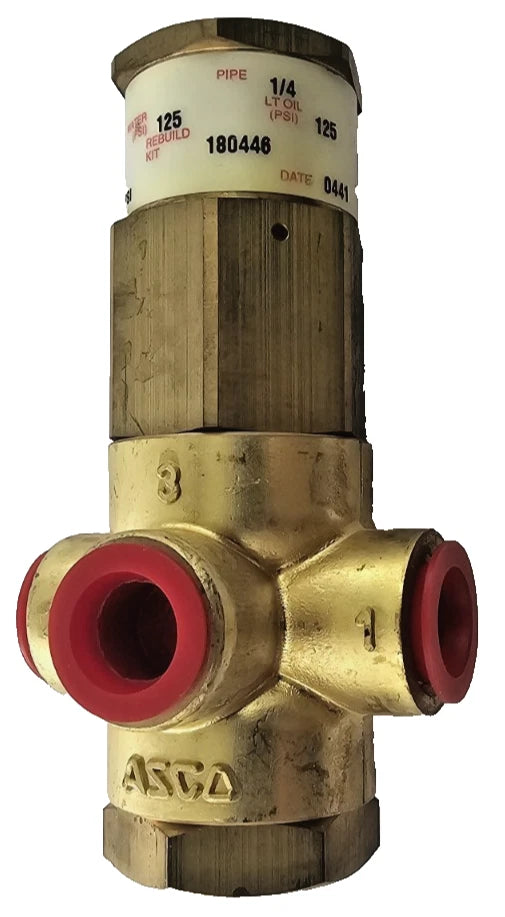

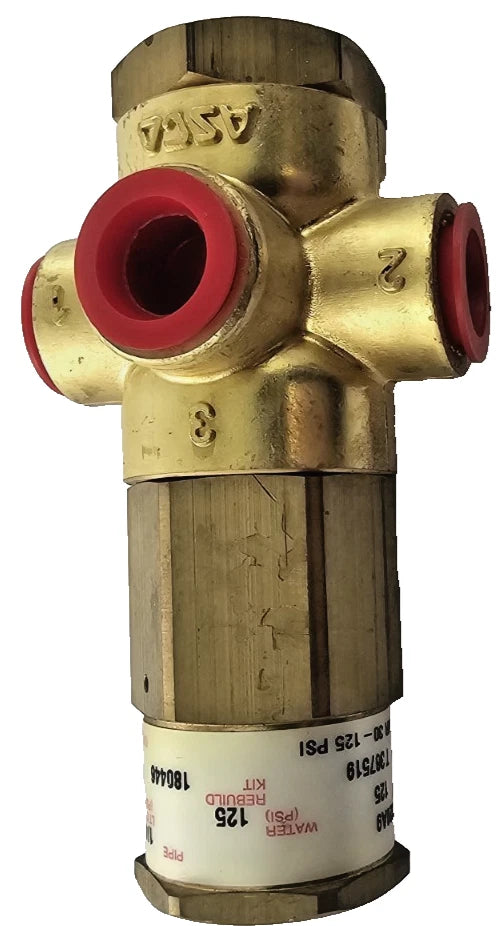

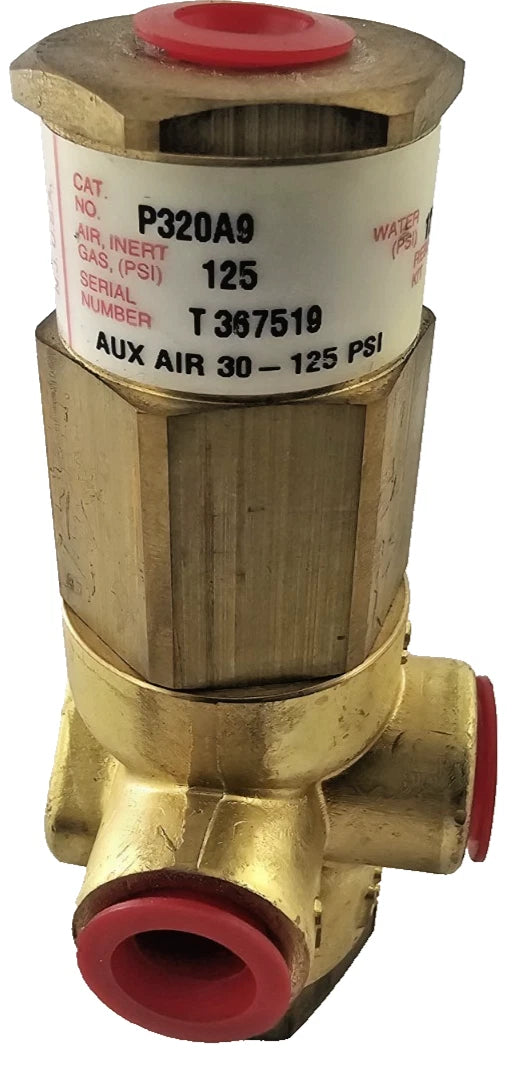

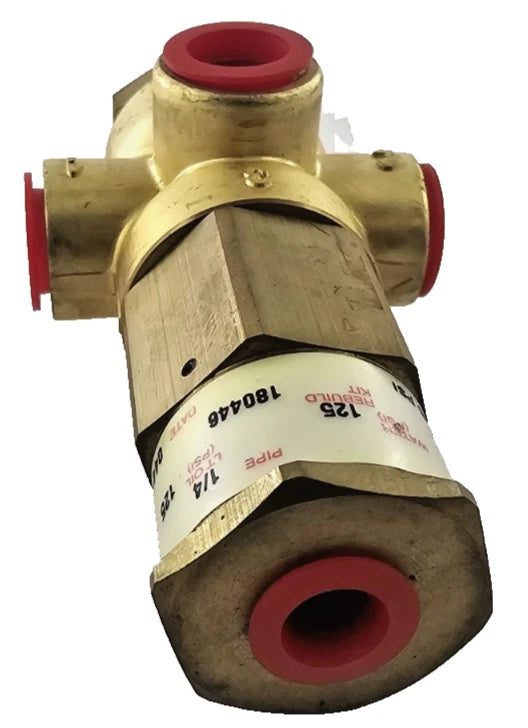

ASCO P320A9 Series 320 3-Way 1/4" Air Operated Valve
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P320A9
Description
ASCO P320A9 is a Series 320 air-operated valve designed for reliable pneumatic and fluid control in industrial applications. The 3-way universal valve features a brass body, 1/4-inch FNPT process connections, and pneumatic pilot operation for dependable control without an electrical solenoid coil.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | P320A9 |
| Subcategory | Air Operated Valves |
| Series | 320 |
| Valve Configuration | 3-Way / 2-Position |
| Valve Function | Universal |
| Actuation | Air Operated / Pneumatic Pilot |
| Body Material | Brass |
| Process Connection | 1/4 in. FNPT |
| Pilot Connection | 1/8 in. FNPT |
| Orifice Size | 1/8 in. |
| Flow Factor | 0.31 Cv |
| Operating Pressure | 0–125 PSI |
| Pilot Pressure | 30–125 PSI |
| Maximum Fluid Temperature | 200°F (93°C) |
| Seal Material | NBR |
| Weight | 1.0 lb |
Information About P320A9
The ASCO P320A9 is a 3-way, 2-position universal air-operated valve from the Series 320 product line. It uses an external pneumatic pilot signal to actuate the valve and can be configured for normally closed, normally open, or directional flow applications. The valve supports main operating pressures up to 125 PSI and fluid temperatures up to 200°F. Its compact brass construction makes it suitable for pneumatic systems, industrial automation, process equipment, and compatible fluid-control applications.
Key Features:
- Air-Operated Actuation: Uses an external pneumatic pilot signal instead of an electrical solenoid coil.
- Universal 3-Way Design: Can be piped for normally closed, normally open, or directional flow configurations.
- 1/4-Inch FNPT Connections: Provides standard female threaded process connections for industrial installations.
- 125 PSI Maximum Pressure: Supports main system operating pressures from 0 to 125 PSI.
- Pneumatic Pilot Control: Designed for pilot pressures ranging from 30 to 125 PSI.
- Brass Body Construction: Provides durability and resistance for demanding industrial fluid-control applications.
- High-Temperature Capability: Handles compatible fluids at temperatures up to 200°F.
- Compact Design: Small physical dimensions allow installation in space-constrained pneumatic and process-control systems.
The ASCO P320A9 delivers the reliability and precision required for pneumatic control, industrial automation, process equipment, and compatible fluid-handling systems.
