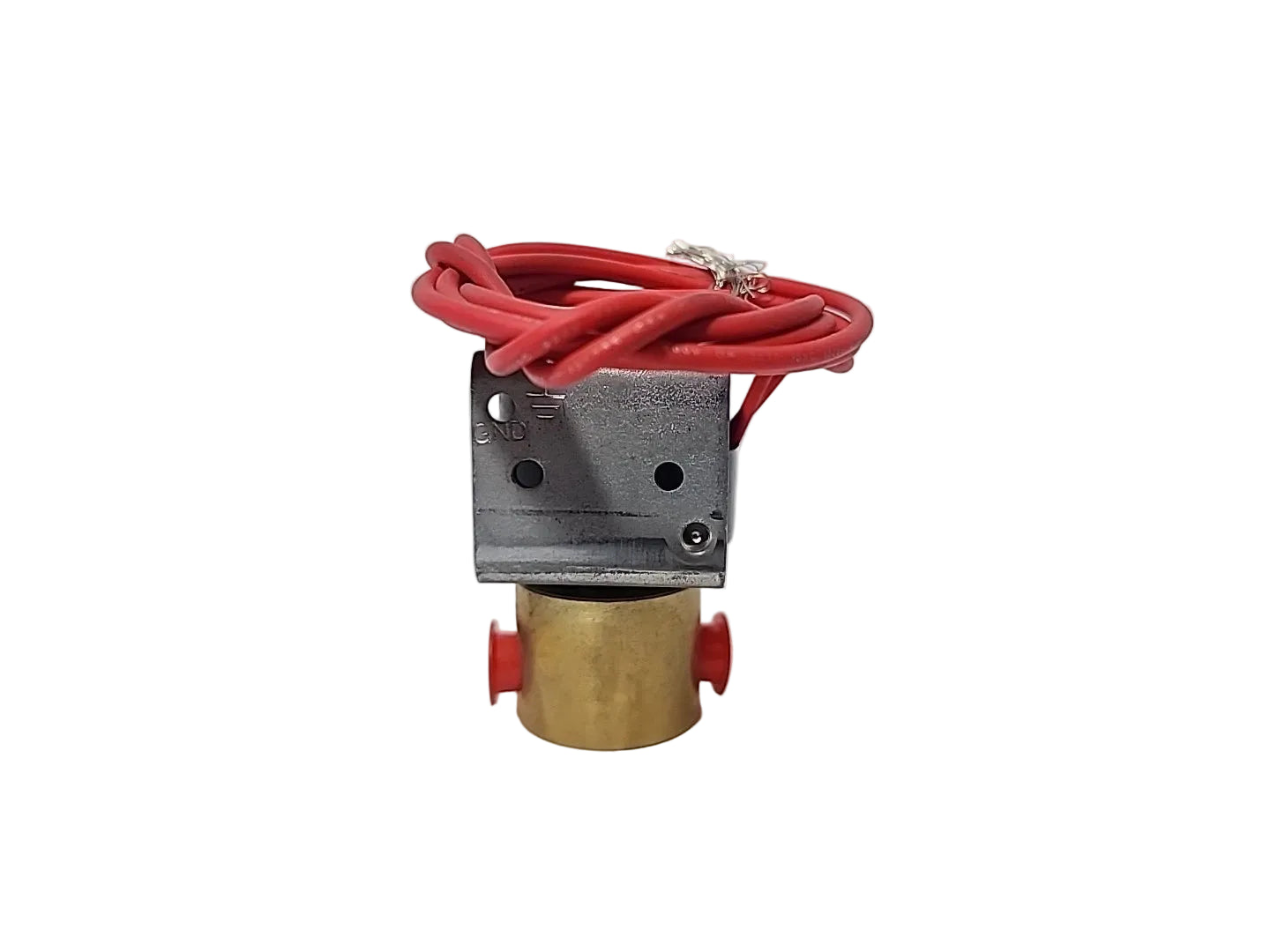

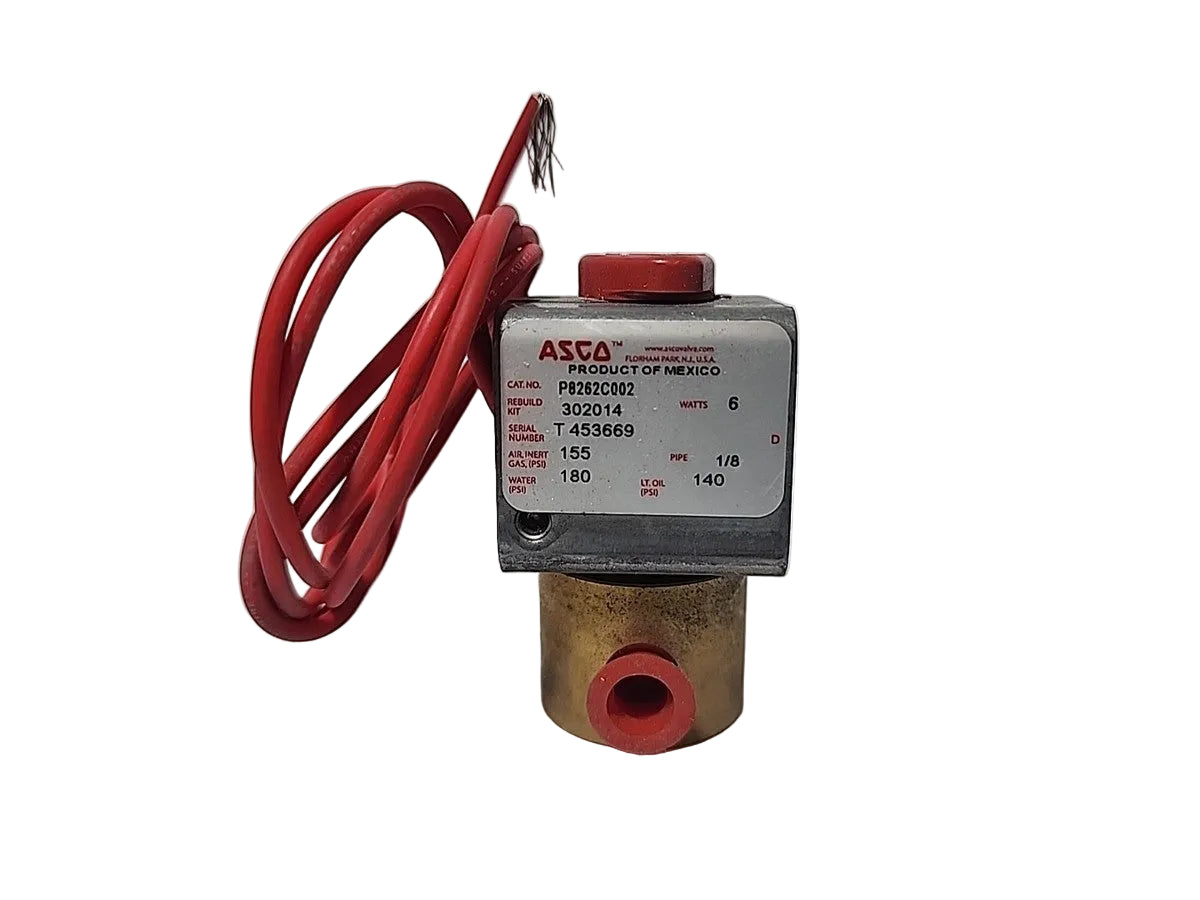

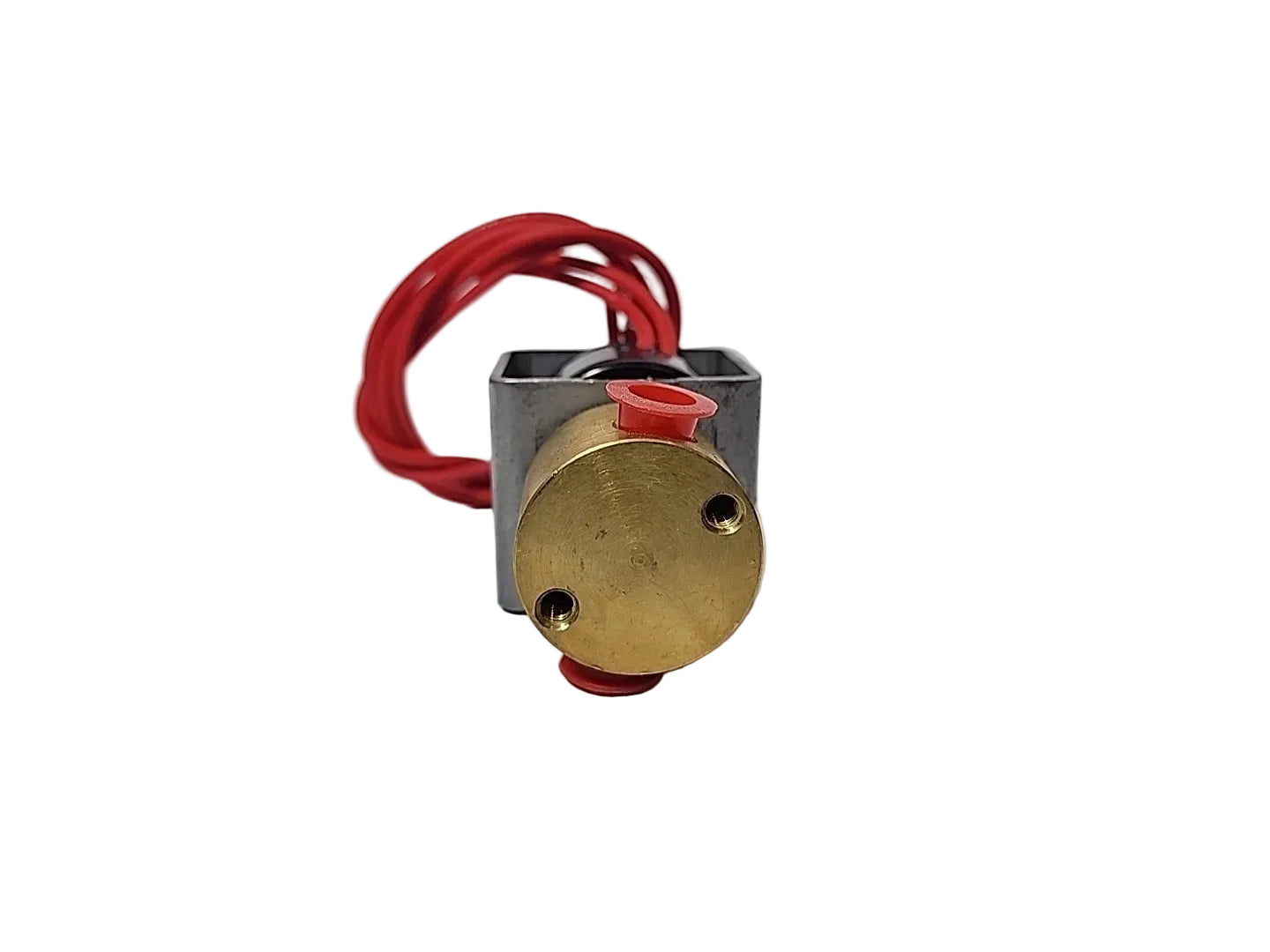

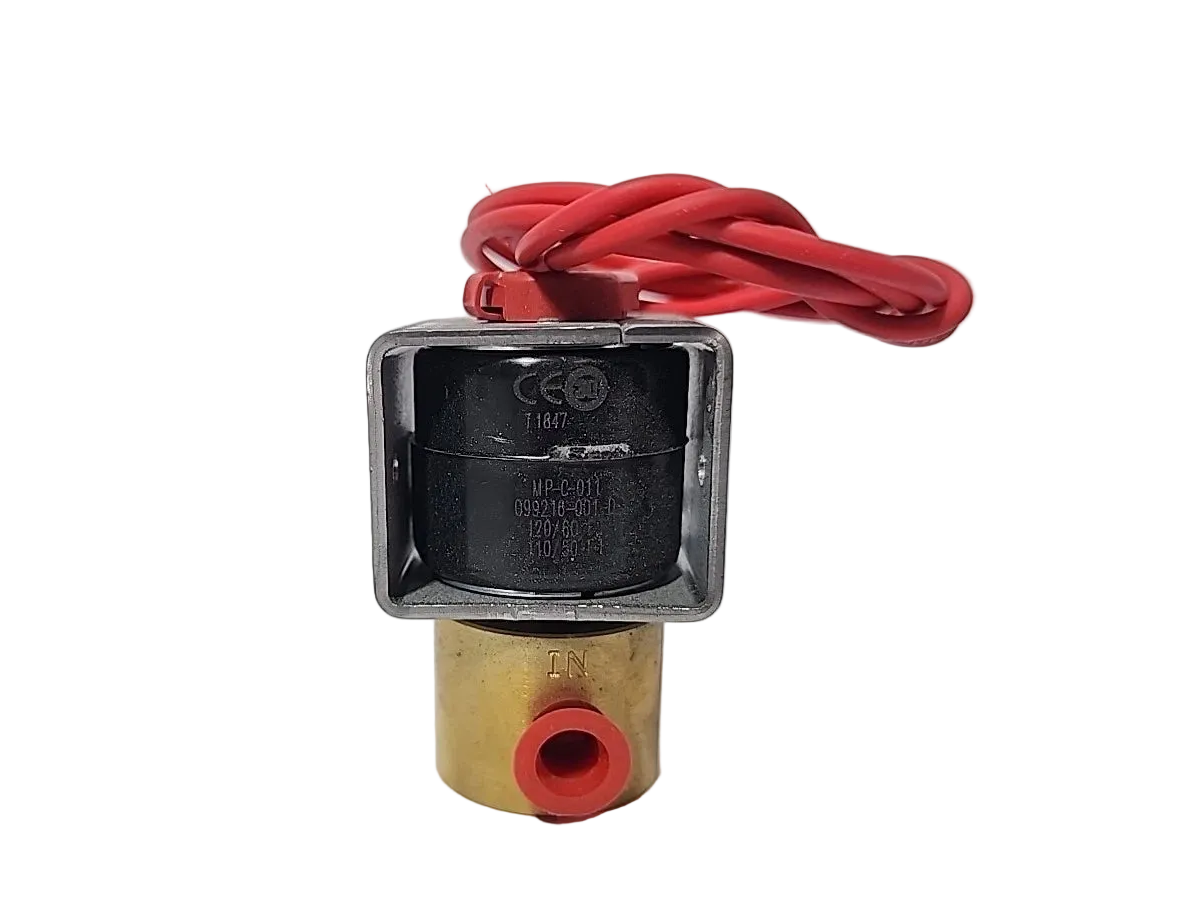

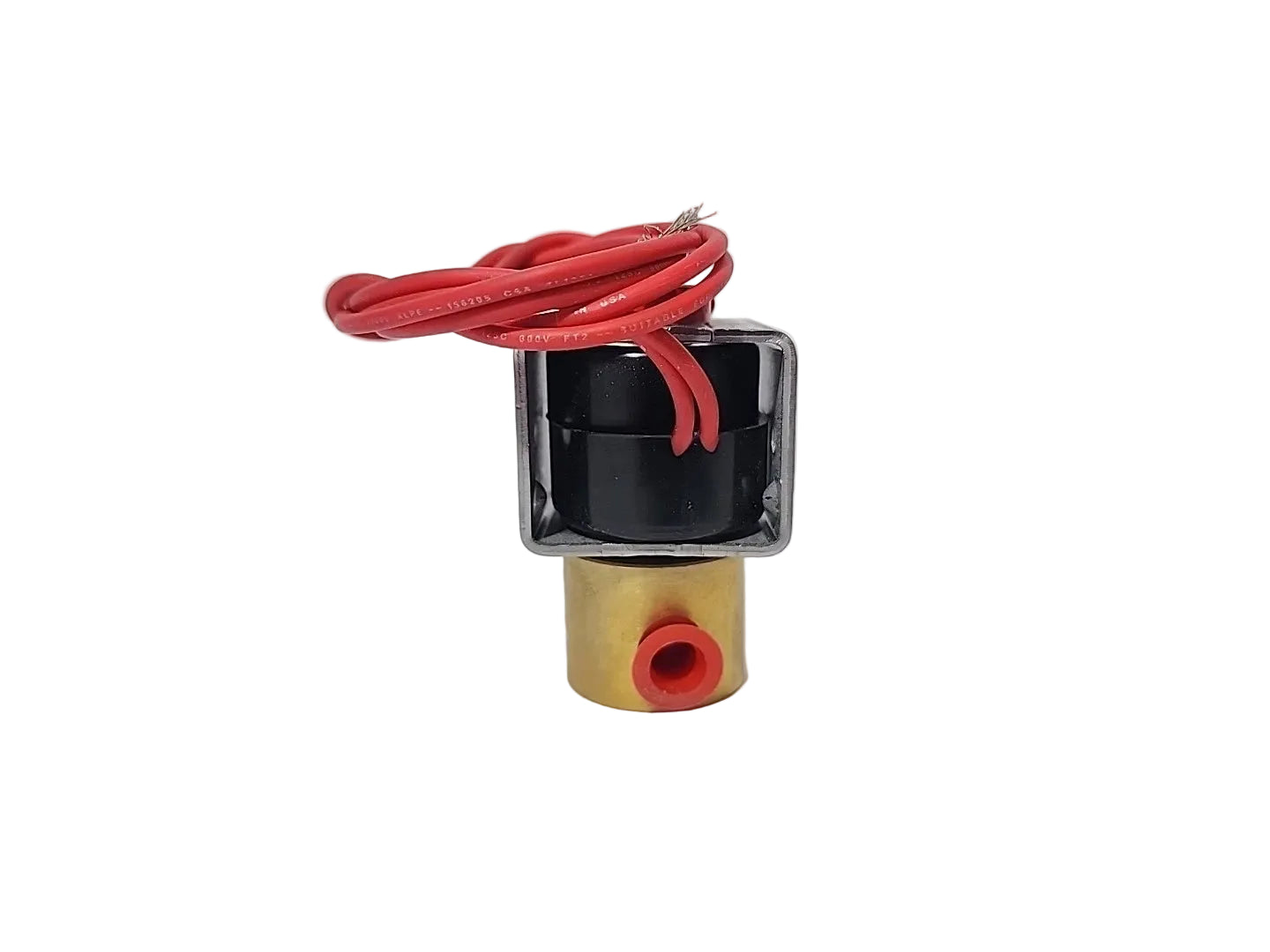

ASCO P8262C002 1/8" 120V NC Direct-Acting Solenoid Valve
- Regular price
- $402.00
- Sale price
- $402.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: P8262C002
Description
ASCO P8262C002 is a direct-acting 2-way normally closed solenoid valve designed for precise control of oil and other compatible media in industrial systems. Featuring a brass body, 1/8-inch FNPT ports, and a 120V AC coil, it provides reliable flow control for pneumatic, dust collection, and industrial automation applications.
Technical Specifications
| Condition | New |
| Brand | ASCO |
| Part Number | P8262C002 |
| OEM Reference | P8262C002-120/60, 110/50 |
| IAC Part Number | 2030010 |
| Product Type | Solenoid Valve |
| Actuation | Direct Acting Solenoid |
| Valve Configuration | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Port Size | 1/8 in. FNPT |
| Body Material | Brass |
| Voltage | 120 VAC / 60 Hz; 110 VAC / 50 Hz |
| Power Rating | 6.1 W |
| Maximum Operating Pressure | 180 PSI |
| Flow Factor | 0.34 Cv |
| Coil Class | Class F |
| Mounting | Panel Mount |
| Suitable Media | Oil |
| Country of Origin | Mexico |
| Product Status | Obsolete |
| Replacement Model | ASCO GP8262H002 |
| Weight | 0.82 lbs |
Information About P8262C002
The ASCO P8262C002 is a direct-acting solenoid valve designed for compact industrial flow-control installations. It features a normally closed 2-way configuration, allowing the valve to remain closed when the coil is de-energized. The brass body incorporates 1/8-inch FNPT connections and provides a flow coefficient of 0.34 Cv. This model is an obsolete ASCO configuration and is referenced as being replaced by the GP8262H002 for applications requiring a current-production equivalent.
Key Features:
- Direct-Acting Operation: Provides straightforward solenoid-controlled switching without requiring pilot pressure.
- Normally Closed Design: Maintains the flow path closed whenever electrical power is removed.
- 1/8-Inch FNPT Ports: Compact threaded connections simplify integration into industrial control systems.
- Brass Body: Provides durable construction for compatible industrial media.
- 120V AC Operation: Designed for 120V AC/60 Hz and 110V AC/50 Hz electrical systems.
- 0.34 Cv Flow Capacity: Provides controlled flow for compact pneumatic and process applications.
- Panel-Mount Configuration: Designed for convenient installation within industrial equipment and control assemblies.
- Replacement Reference: Obsolete P8262C002 configuration is referenced as being replaced by ASCO GP8262H002.
The ASCO P8262C002 delivers the reliability and precision required for industrial flow control, pneumatic systems, and dust collection equipment.
