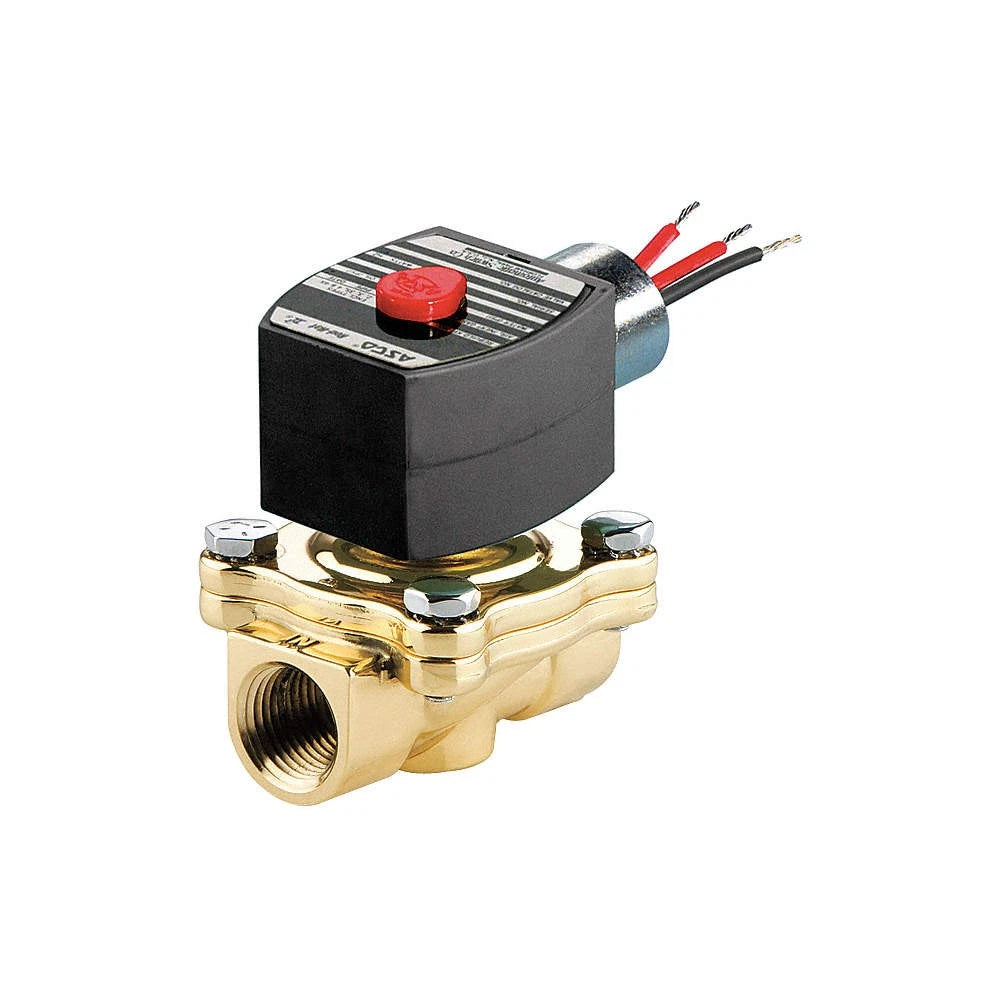

ASCO RedHat II EF8210G004 Series 8210 1-Inch 24V DC Normally Closed Solenoid Valve
- Regular price
- $459.00
- Sale price
- $459.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EF8210G004
Description
The ASCO RedHat II EF8210G004 is a Series 8210 pilot-operated solenoid valve designed for controlled flow of air, inert gas, water, and light oil. Its normally closed 2-way configuration, 1-inch threaded ports, and 24V DC coil provide reliable fluid control in industrial water, compressor, pump, and process applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO RedHat II |
| Category | Valves |
| Part Number | EF8210G004 |
| Subcategory | Solenoid Valves |
| Series | 8210 |
| Valve Type | Pilot-Operated Solenoid Valve |
| Function | 2-Way / 2-Position |
| Valve Position | Normally Closed (NC) |
| Input Voltage | 24V DC |
| Power Rating | 11.6 W |
| Port Size | 1 in. Female Threaded x 1 in. Female Threaded |
| Orifice Size | 1 in. |
| Flow Factor | 13 Cv |
| Pressure Rating | 5–125 PSI |
| Body Material | Lead-Free Brass |
| Seal Material | NBR |
| Media | Air, Inert Gas, Water, Light Oil |
| Fluid Temperature | Up to 150°F |
| Coil Insulation | Class F |
| Approvals | UL, CE |
| Weight | 4.59 lbs |
Information About EF8210G004
The EF8210G004 is an ASCO RedHat II Series 8210 general-purpose solenoid valve with a pilot-operated diaphragm design. It features a lead-free brass body, NBR sealing components, and 1-inch female threaded inlet and outlet connections. The valve operates from a 24V DC supply and supports a pressure range of 5 to 125 PSI for specified air, inert gas, water, and light-oil applications. Its corrosion-resistant enclosure construction and internal stainless-steel components support installation in demanding industrial fluid-control environments.
Key Features:
- Pilot-Operated Design: Uses a diaphragm-operated mechanism for efficient control of industrial fluid and gas flow.
- Normally Closed Operation: Remains closed without electrical power and opens when the solenoid is energized.
- 24V DC Coil: Operates from a standard 24V DC industrial control supply with an 11.6 W power rating.
- 1-Inch Connections: Provides 1-inch female threaded inlet and outlet ports with a 1-inch orifice.
- 13 Cv Flow Factor: Supports high-flow applications requiring substantial fluid throughput.
- Brass Construction: Lead-free brass valve body provides mechanical strength and corrosion resistance.
- Multi-Media Capability: Designed for compatible air, inert gas, water, and light-oil services.
- Environmental Protection: Enclosure construction supports installation where resistance to moisture and environmental exposure is required.
The EF8210G004 delivers the reliability and precision required for automated fluid and gas flow control in industrial equipment and process systems.
