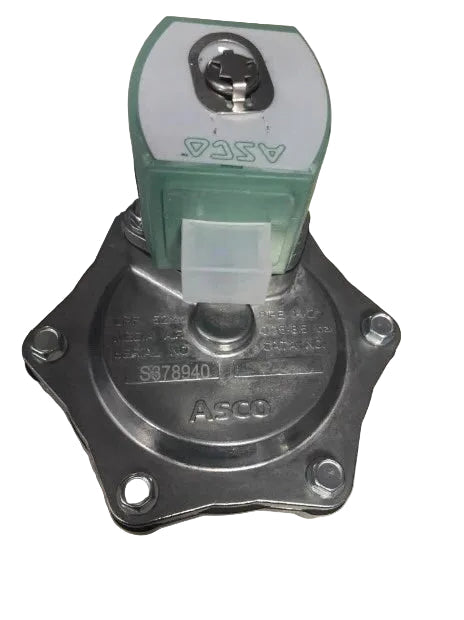

ASCO SCG353G047 Series 353 24 VDC Pulse Jet Solenoid Valve G 1-1/2 Inch
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SCG353G047
Description
The ASCO SCG353G047 is a Series 353 pulse jet solenoid valve engineered for high-performance compressed air control in industrial dust collection systems. This 2-way, normally closed, dual-stage pulse valve operates on 24 VDC and delivers rapid pulse discharge for efficient filter bag cleaning and reliable dust removal. The ASCO SCG353G047 is widely used in baghouse collectors, cartridge filters, pneumatic conveying systems, and industrial air filtration equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | SCG353G047 |
| Subcategory | Solenoid Valve |
| Series | 353 |
| Valve Type | Pulse Jet Solenoid Valve |
| Valve Configuration | 2-Way Normally Closed |
| Operation | Dual-Stage Integral Pilot |
| Body Material | Aluminum |
| Connection Type | Female Threaded |
| Port Size | G 1-1/2 Inch |
| Orifice Size | 52 mm |
| Compatible Media | Compressed Air |
| Operating Differential Pressure | 0.35–8.5 bar |
| Coil Voltage | 24 VDC |
| Coil Insulation Class | Class F |
| Electrical Protection | IP65 |
| Ambient Temperature | -20°C to +85°C |
| Flow Coefficient (Kv) | 44 m³/h |
| Weight | 1.40 kg (3.09 lbs) |
Information About SCG353G047
The SCG353G047 is part of the ASCO Series 353 family of pulse valves designed specifically for reverse pulse-jet cleaning applications in dust collector systems. Its dual-stage integral pilot design provides fast opening and closing times, producing powerful compressed air pulses that maximize filter cleaning efficiency while minimizing air consumption. The valve features an aluminum body, threaded pipe connections, and chloroprene diaphragm construction for long service life in continuous industrial operation. Operating with compressed air at differential pressures from 0.35 to 8.5 bar, the valve is commonly installed in cement plants, woodworking facilities, grain handling systems, mining operations, and other dust extraction applications.
Key Features:
- Series 353 Design: Engineered specifically for industrial pulse-jet dust collection systems.
- Dual-Stage Pulse Valve: Produces fast, high-energy compressed air pulses for efficient filter cleaning.
- 2-Way Normally Closed Operation: Remains closed until electrically energized for reliable system control.
- 24 VDC Coil: Designed for industrial direct current automation and dust collector controls.
- Aluminum Valve Body: Provides lightweight construction with excellent corrosion resistance.
- 1-1/2 Inch Threaded Connection: Supports high airflow in industrial dust collection equipment.
- Chloroprene Diaphragm: Offers long service life and dependable sealing under repetitive cycling.
- High-Speed Response: Delivers rapid opening and closing to optimize compressed air consumption.
The SCG353G047 delivers the reliability and precision required for industrial pulse-jet dust collection and compressed air cleaning systems.
