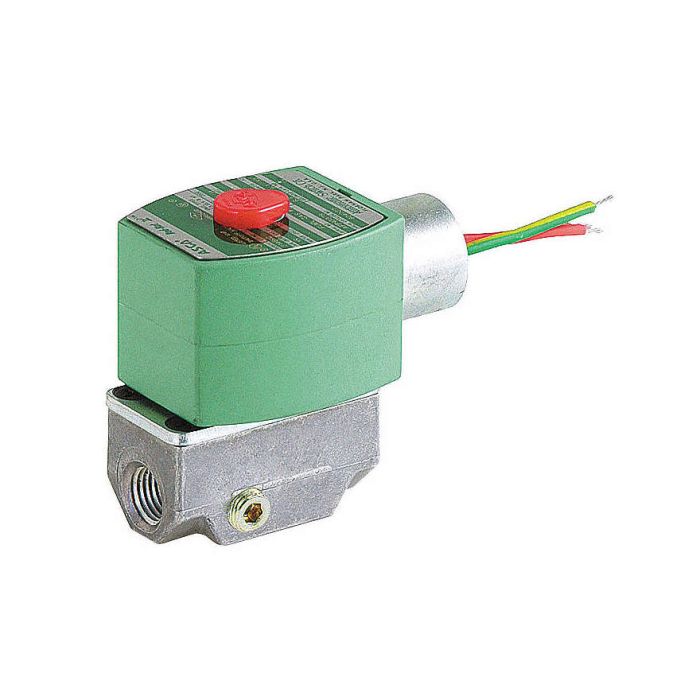

Asco SV311A02N6CF5 Normally Closed Direct Acting Gas Shutoff Solenoid Valve
- Regular price
- $627.00
- Sale price
- $627.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SV311A02N6CF5
Description
The Asco SV311A02N6CF5 is a normally closed, direct-acting 2-way solenoid valve for shutting off fuel gas flow in compatible burner and heating equipment. Its aluminum body has 3/8-inch NPT connections and a Cv rating of 1.2 for operation at pressures from 0 to 15 PSI. The valve opens when its AC coil is energized and closes when power is removed.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Asco |
| Category | Valves |
| Part Number | SV311A02N6CF5 |
| Subcategory | Gas Shutoff Solenoid Valves |
| Series | SV311 |
| Valve Configuration | 2-way, 2-position |
| Normal Position | Normally closed |
| Actuation Method | Direct acting |
| Port Size | 3/8 in. |
| Connection Type | Female NPT threaded |
| Body Material | Aluminum |
| Sealing Material | NBR |
| Service Media | Fuel gas |
| Operating Pressure Range | 0–15 PSI |
| Flow Coefficient | Cv 1.2 |
| Orifice Size | 5/16 in. |
| Coil Supply | 120 VAC, 60 Hz / 110 VAC, 50 Hz |
| Coil Power Rating | 6.1 W |
| Maximum Fluid Temperature | 125°F (approximately 52°C), catalog-listed |
| Weight | 1.8 lb (0.82 kg) |
Information About SV311A02N6CF5
The SV311A02N6CF5 is part of Asco’s SV311 gas shutoff valve series. Its direct-acting mechanism operates without a pilot pressure differential, allowing switching at zero differential pressure. Female threaded ports connect to matching gas piping fittings, while NBR sealing material forms the valve seal. The specified coil accepts 120 VAC at 60 Hz or 110 VAC at 50 Hz.
Key Features:
- Normally Closed Operation: Keeps the gas flow path closed when the coil is de-energized.
- Direct-Acting Mechanism: Operates without requiring a pilot pressure differential.
- Two-Way Configuration: Provides a single controlled flow path between inlet and outlet.
- Threaded Gas Connections: Uses 3/8-inch female NPT ports for compatible piping.
- Aluminum Body: Provides the valve housing for fuel gas shutoff service.
- Flow Capacity: Offers a Cv rating of 1.2 for gas flow sizing.
- AC Coil Supply: Operates at 120 VAC, 60 Hz or 110 VAC, 50 Hz.
- Low-Pressure Operation: Supports an operating pressure range of 0–15 PSI.
The SV311A02N6CF5 delivers the reliability and precision required for electrically controlled fuel gas shutoff in compatible heating and burner systems.
