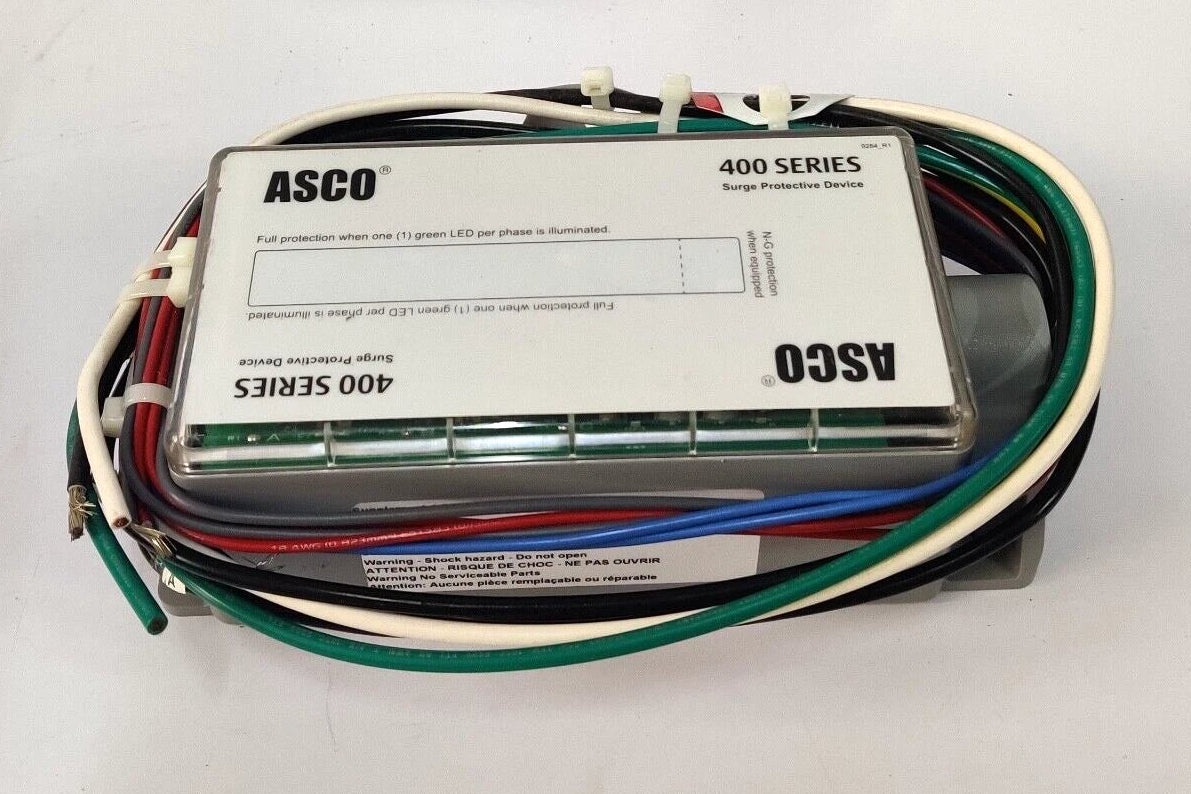

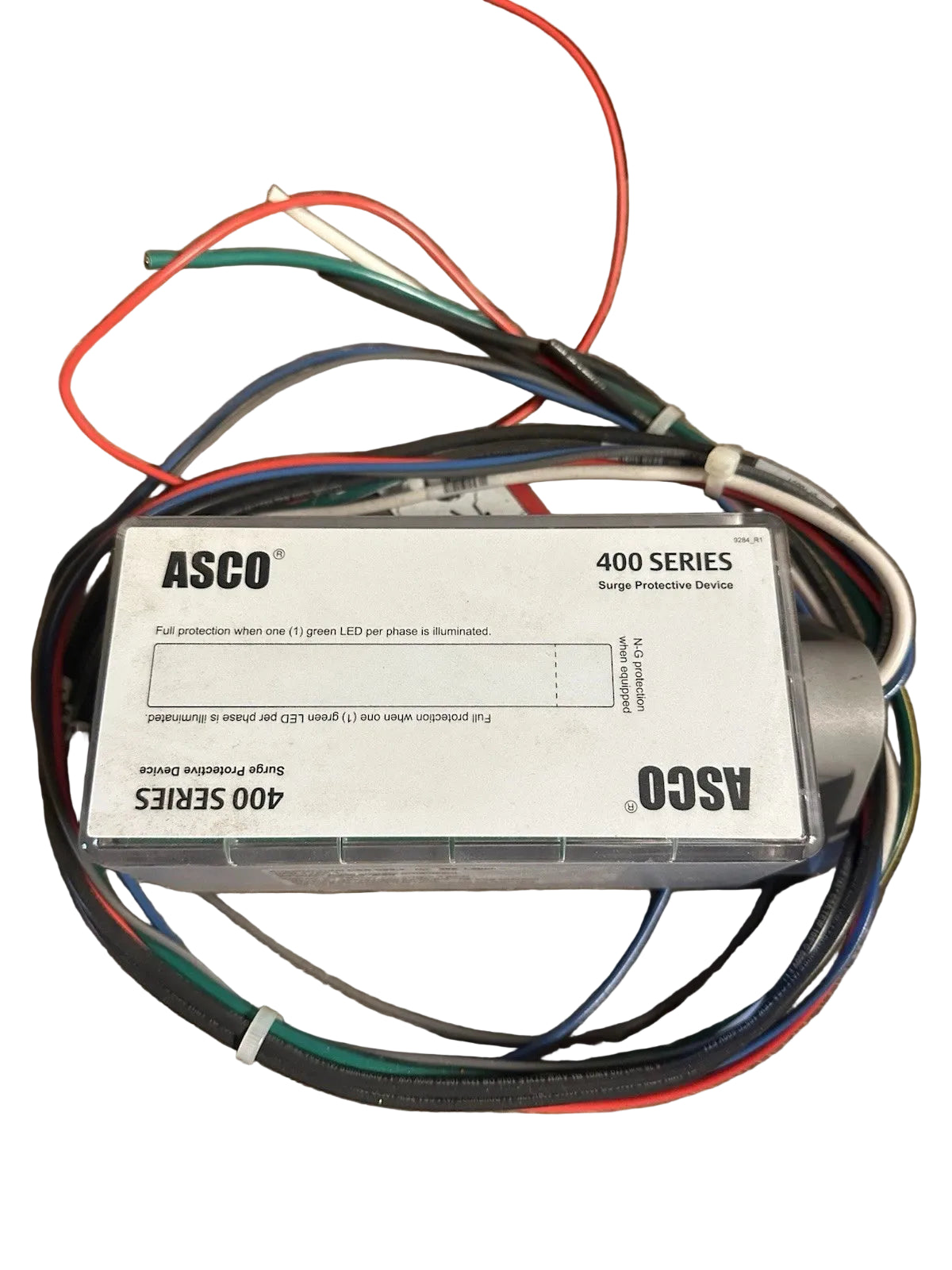

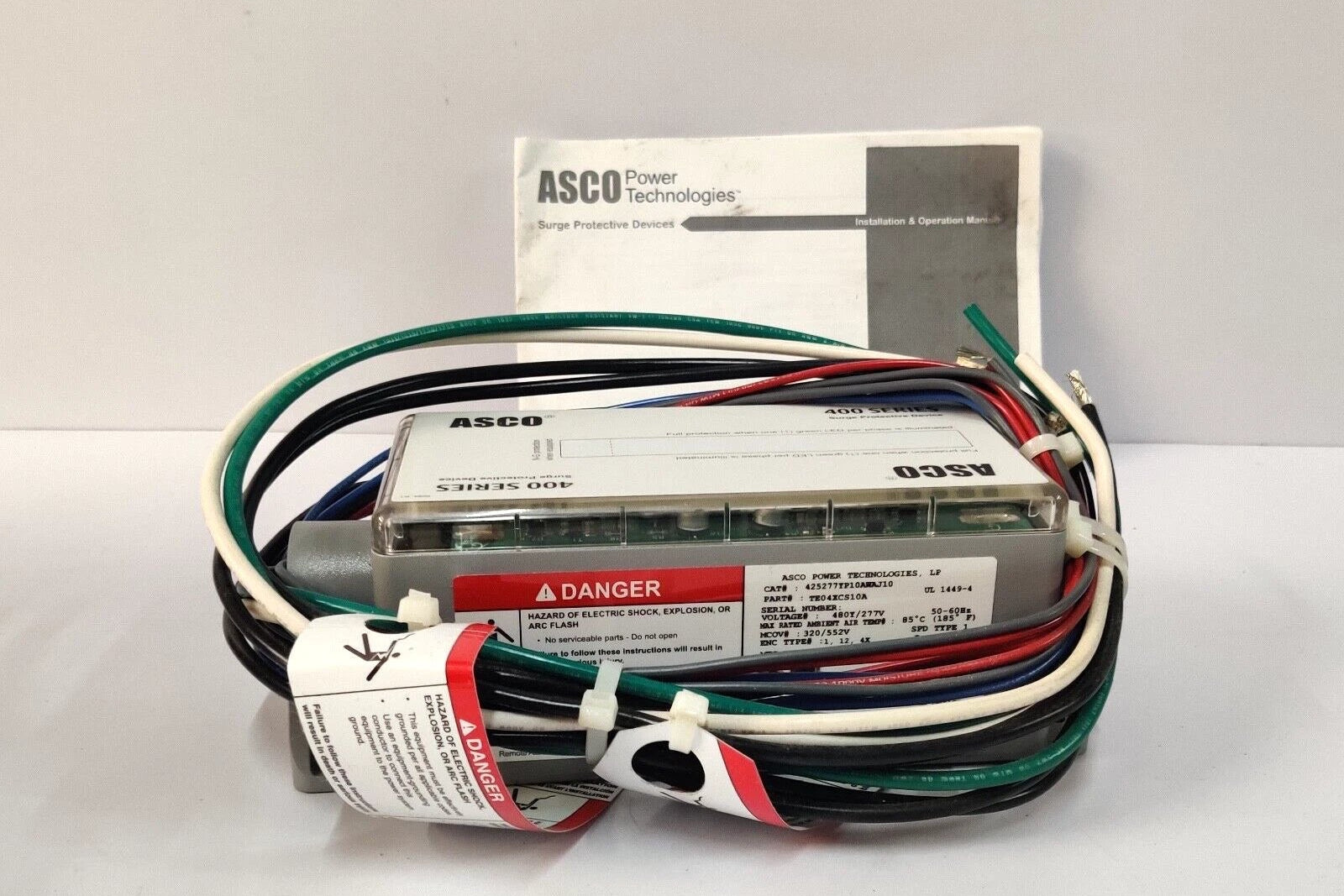

ASCO TE04XCS10 Power Technologies XCS Series 100kA 480Y/277V Surge Protective Device
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TE04XCS10
Description
The ASCO Power Technologies TE04XCS10 is an XCS Series surge protective device designed to protect three-phase electrical distribution systems from transient overvoltage events. Rated for 480Y/277V systems with 100 kA surge capacity per phase, it uses a non-modular design housed in a NEMA 4X enclosure for demanding indoor and outdoor installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO Power Technologies |
| Category | Panel Accessories |
| Part Number | TE04XCS10 |
| Subcategory | Surge Arrestors / Suppressors |
| Series | XCS Series |
| Product Type | Surge Protective Device (SPD) |
| Design | Non-Modular |
| Surge Capacity | 100 kA per Phase |
| System Voltage | 480Y/277V AC |
| Phase Configuration | Three Phase |
| Wiring Configuration | 4-Wire Plus Ground |
| Conductors | 3 Hot, 1 Neutral, 1 Ground |
| Enclosure Rating | NEMA 4X |
| Mounting Application | Electrical Panel / Distribution System |
| Protection Function | Transient Voltage and Surge Suppression |
| Standard | UL 1449 |
| Weight | 2.65 lbs |
Information About TE04XCS10
The TE04XCS10 is an XCS Series surge protective device engineered for 480Y/277V three-phase electrical systems. Its configuration supports a four-wire plus ground connection consisting of three phase conductors, one neutral, and one ground conductor. The integrated non-modular construction provides transient voltage suppression within a compact panel-mounted assembly, while the NEMA 4X enclosure protects the internal components against environmental exposure. It is intended for electrical distribution panels and industrial power systems requiring protection against damaging voltage spikes and high-energy surge events.
Key Features:
- 100 kA Surge Capacity: Provides surge current handling capability rated at 100 kA per phase.
- 480Y/277V Configuration: Designed specifically for 480Y/277V three-phase AC distribution systems.
- Three-Phase Protection: Supports three hot conductors for comprehensive phase protection.
- 4-Wire Plus Ground: Accommodates three phase conductors, one neutral conductor, and one ground connection.
- Non-Modular Construction: Uses an integrated XCS Series design without field-replaceable plug-in protection modules.
- NEMA 4X Enclosure: Provides protection against water, dust, corrosion, and environmental contaminants.
- Panel-Mount Application: Designed for integration with commercial and industrial electrical distribution equipment.
- UL 1449 Compliance: Designed in accordance with recognized surge protective device safety requirements.
The TE04XCS10 delivers the reliability and precision required for transient surge protection in three-phase industrial and commercial electrical distribution systems.
