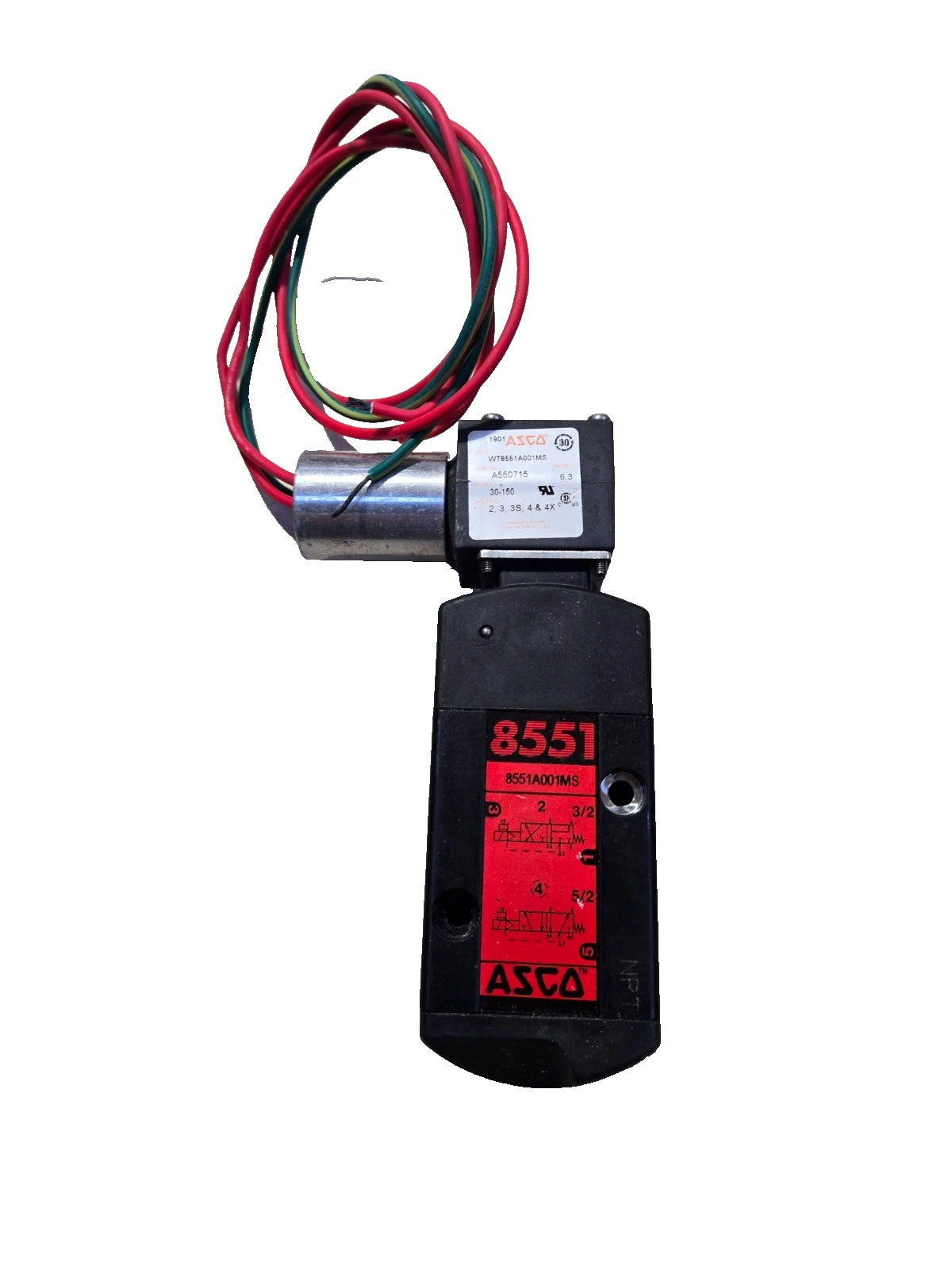

ASCO WT8551A001MS Series 8551 Watertight NAMUR Pilot-Operated Solenoid Spool Valve 120 VAC
- Regular price
- $239.00
- Sale price
- $239.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: WT8551A001MS
Description
The ASCO WT8551A001MS is a Series 8551 direct-mount pneumatic solenoid spool valve designed for reliable directional control of air and inert gas in industrial automation systems. This watertight, single-solenoid valve operates on 120 VAC (110 VAC, 50 Hz) and features a compact aluminum body with a NAMUR mounting interface for direct installation on pneumatic actuators. The ASCO WT8551A001MS is commonly used in valve automation, chemical processing, refining, food and beverage production, and general process control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | WT8551A001MS |
| Subcategory | Solenoid Valve |
| Series | 8551 |
| Valve Type | Pilot-Operated Solenoid Spool Valve |
| Valve Function | Convertible 3-Way/2-Position, 4-Way, 5-Way/2-Position |
| Mounting Style | NAMUR Direct Mount |
| Body Material | Anodized Aluminum |
| Port Size | 1/4 Inch NPT |
| Orifice Size | 1/4 Inch |
| Flow Coefficient (Cv) | 0.86 |
| Compatible Media | Air, Inert Gas |
| Operating Pressure | 30–150 PSI |
| Coil Voltage | 120 VAC 60 Hz / 110 VAC 50 Hz |
| Power Consumption | 6.3 W |
| Enclosure Type | Watertight, NEMA 1, 2, 3, 3S, 4, 4X |
| Maximum Fluid Temperature | 140°F (60°C) |
| Electrical Connection | 18-Inch Leads |
| Weight | 3.00 lbs |
Information About WT8551A001MS
The WT8551A001MS is part of the ASCO Series 8551 family of pilot-operated spool valves developed for pneumatic actuator control in demanding industrial environments. Its watertight enclosure provides NEMA Type 1, 2, 3, 3S, 4, and 4X protection, making it suitable for indoor and outdoor installations exposed to moisture and washdown conditions. The valve features a compact anodized aluminum body, 1/4-inch NPT ports, and a convertible spool that supports multiple directional control functions depending on the application. With NAMUR direct mounting, manual override capability, and compatibility with air and inert gas, it integrates easily into automated valve and process control systems.
Key Features:
- Series 8551 Design: Engineered for compact pneumatic directional control applications.
- Watertight Enclosure: Provides NEMA Types 1, 2, 3, 3S, 4, and 4X environmental protection.
- NAMUR Mounting: Allows direct installation on quarter-turn pneumatic actuators.
- Convertible Valve Function: Supports 3-way/2-position, 4-way, and 5-way/2-position configurations.
- Pilot-Operated Spool: Combines reliable shifting with long operating life.
- Aluminum Valve Body: Offers lightweight construction with corrosion resistance.
- 120 VAC Operation: Designed for 120 VAC 60 Hz and 110 VAC 50 Hz power supplies.
- Manual Override: Enables manual valve operation during commissioning or maintenance.
The WT8551A001MS delivers the reliability and precision required for pneumatic actuator control and industrial automation systems.
Description
The ASCO WT8551A001MS is a Series 8551 direct-mount pneumatic solenoid spool valve designed for reliable directional control of air and inert gas in industrial automation systems. This watertight, single-solenoid valve operates on 120 VAC (110 VAC, 50 Hz) and features a compact aluminum body with a NAMUR mounting interface for direct installation on pneumatic actuators. The ASCO WT8551A001MS is commonly used in valve automation, chemical processing, refining, food and beverage production, and general process control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ASCO |
| Category | Valves |
| Part Number | WT8551A001MS |
| Subcategory | Solenoid Valve |
| Series | 8551 |
| Valve Type | Pilot-Operated Solenoid Spool Valve |
| Valve Function | Convertible 3-Way/2-Position, 4-Way, 5-Way/2-Position |
| Mounting Style | NAMUR Direct Mount |
| Body Material | Anodized Aluminum |
| Port Size | 1/4 Inch NPT |
| Orifice Size | 1/4 Inch |
| Flow Coefficient (Cv) | 0.86 |
| Compatible Media | Air, Inert Gas |
| Operating Pressure | 30–150 PSI |
| Coil Voltage | 120 VAC 60 Hz / 110 VAC 50 Hz |
| Power Consumption | 6.3 W |
| Enclosure Type | Watertight, NEMA 1, 2, 3, 3S, 4, 4X |
| Maximum Fluid Temperature | 140°F (60°C) |
| Electrical Connection | 18-Inch Leads |
| Weight | 3.00 lbs |
Information About WT8551A001MS
The WT8551A001MS is part of the ASCO Series 8551 family of pilot-operated spool valves developed for pneumatic actuator control in demanding industrial environments. Its watertight enclosure provides NEMA Type 1, 2, 3, 3S, 4, and 4X protection, making it suitable for indoor and outdoor installations exposed to moisture and washdown conditions. The valve features a compact anodized aluminum body, 1/4-inch NPT ports, and a convertible spool that supports multiple directional control functions depending on the application. With NAMUR direct mounting, manual override capability, and compatibility with air and inert gas, it integrates easily into automated valve and process control systems.
Key Features:
- Series 8551 Design: Engineered for compact pneumatic directional control applications.
- Watertight Enclosure: Provides NEMA Types 1, 2, 3, 3S, 4, and 4X environmental protection.
- NAMUR Mounting: Allows direct installation on quarter-turn pneumatic actuators.
- Convertible Valve Function: Supports 3-way/2-position, 4-way, and 5-way/2-position configurations.
- Pilot-Operated Spool: Combines reliable shifting with long operating life.
- Aluminum Valve Body: Offers lightweight construction with corrosion resistance.
- 120 VAC Operation: Designed for 120 VAC 60 Hz and 110 VAC 50 Hz power supplies.
- Manual Override: Enables manual valve operation during commissioning or maintenance.
The WT8551A001MS delivers the reliability and precision required for pneumatic actuator control and industrial automation systems.
