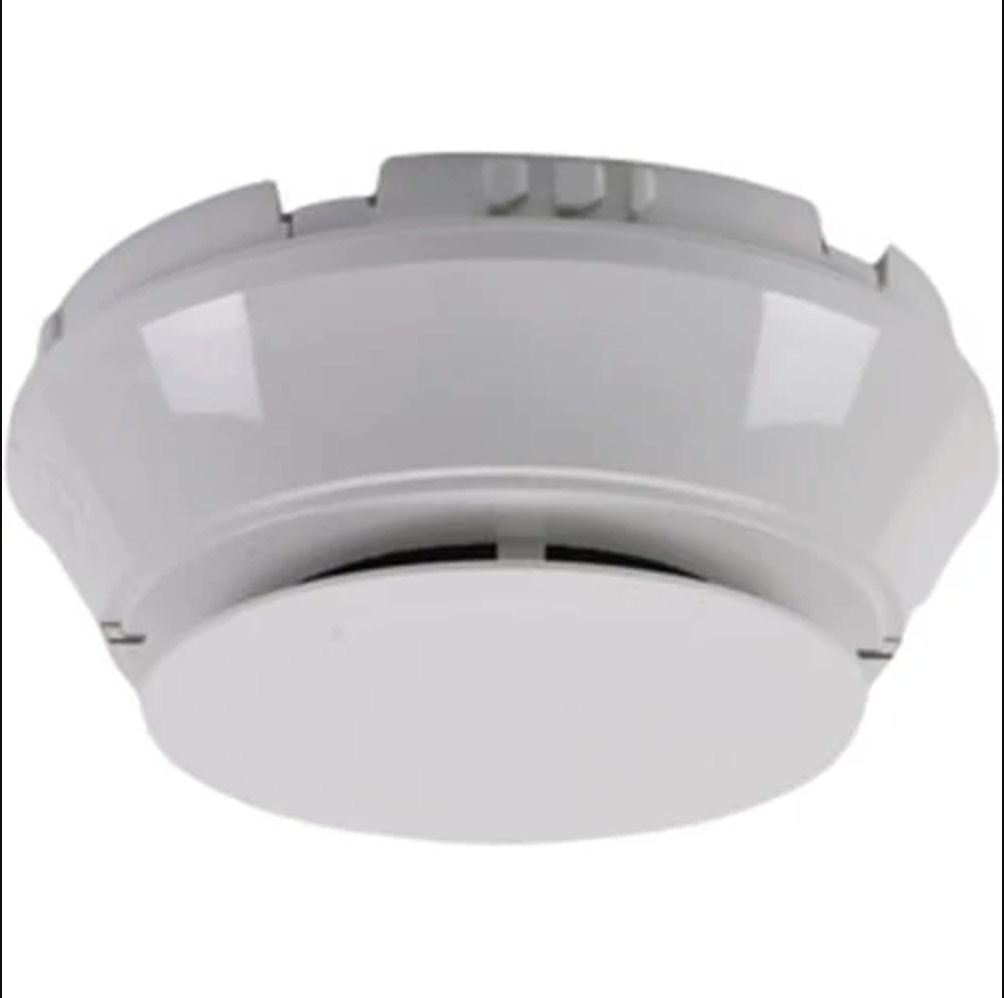

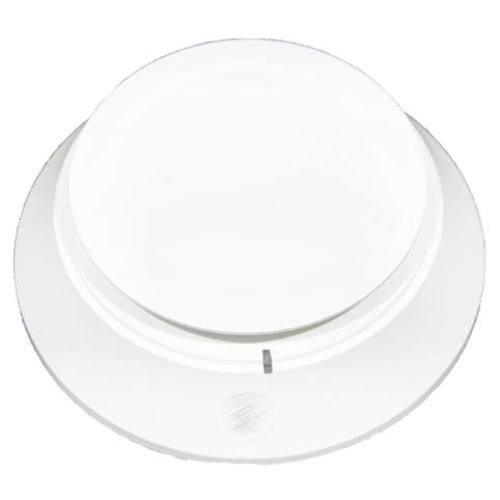

ASD-LS3 | Gamewell-FCI High-Sensitivity Photoelectric Smoke Detector for Early Warning Fire Detection
- Regular price
- $392.00
- Sale price
- $392.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ASD-LS3
Description
The Gamewell-FCI ASD-LS3 is a high-sensitivity photoelectric smoke detector designed for very early warning fire detection applications. This detector offers exceptional performance in protecting critical environments where uninterrupted operation is essential, such as data centers, control rooms, and clean facilities. The ASD-LS3 uses advanced optical and electronic technology to deliver accurate, stable detection while minimizing false alarms.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Detection |
| Part Number | ASD-LS3 |
| Subcategory | Photoelectric Smoke Detector |
| Manufacturer | Honeywell International |
| Series | Velociti® Series 3 |
| Detection Method | Photoelectric |
| Sensitivity Range | 0.02%–2.0% per foot obscuration |
| Communication Protocol | Velociti® and CLIP |
| LED Indicators | Dual 360° red LEDs |
| Operating Voltage | 15–32 VDC |
| Standby Current | 300 µA (nominal) |
| Alarm Current | 5 mA (LEDs on) |
| Drift Compensation | Automatic digital adjustment |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Relative Humidity | 10–93% non-condensing |
| Mounting Type | Ceiling or wall mount |
| Enclosure Color Options | Expanded modern profile colors |
| Weight | 0.2 lbs |
Information About ASD-LS3
The ASD-LS3 is part of the Gamewell-FCI Velociti® Series 3 line of intelligent, addressable detectors by Honeywell International. It utilizes a patented photoelectric sensing chamber and optic block that amplifies smoke signals while reducing the impact of internal reflections. The device operates with both Velociti® and CLIP protocols, ensuring broad compatibility across Gamewell-FCI systems. Built with modern LED technology, the ASD-LS3 achieves ultra-high sensitivity and superior transient rejection, making it ideal for mission-critical applications requiring very early fire detection.
Key Features:
- High-Sensitivity Detection: Detects smoke levels as low as 0.02% per foot obscuration for very early fire warning.
- Advanced Optic Design: Patented chamber and optic block reduce false alarms by minimizing internal reflections.
- Dual Communication Protocols: Compatible with both Velociti® and CLIP for versatile system integration.
- LED Status Indicators: Dual 360° LEDs provide clear visual indication of detector status and alarm condition.
- Low Standby Current: Efficient electronic design minimizes system power consumption.
- Drift Compensation: Maintains accuracy by automatically adjusting for environmental changes or dust accumulation.
- Transient Rejection Algorithms: Filters out transient electrical interference for stable operation.
- Rotary Address Switches: Simplifies installation and device identification.
The ASD-LS3 delivers the reliability and precision required for high-sensitivity smoke detection in critical and sensitive environments.
