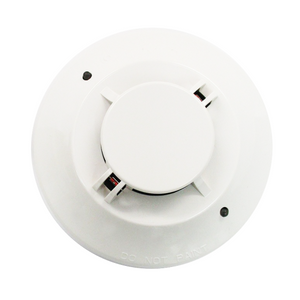

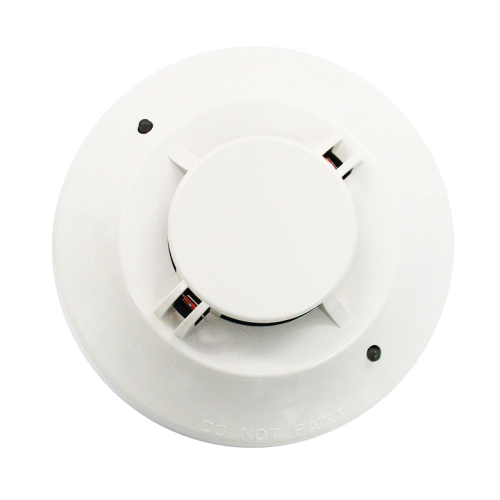

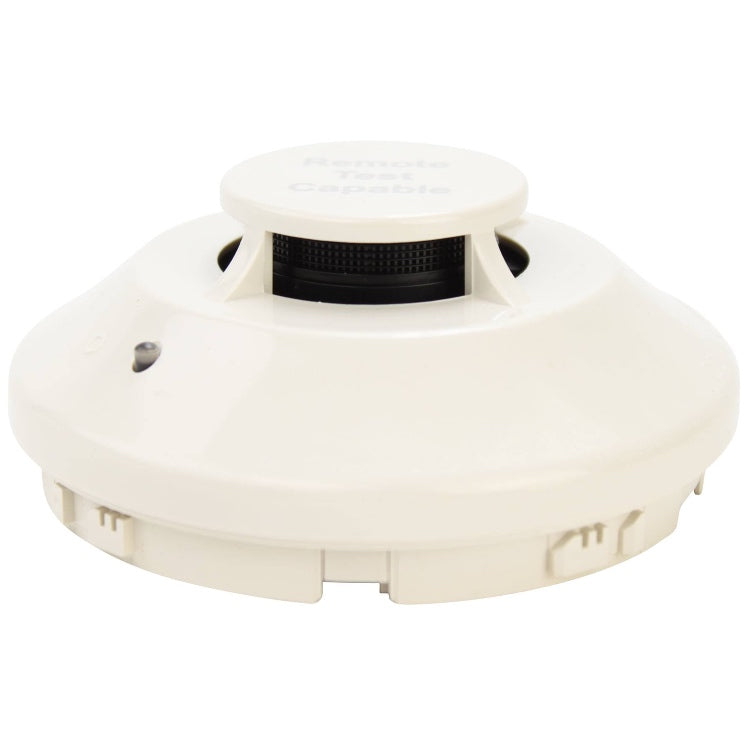

ASD-PL2FR | Gamewell-FCI Intelligent Photoelectric Smoke Sensor
- Regular price
- $531.00
- Sale price
- $531.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ASD-PL2FR
Description
The Gamewell-FCI ASD-PL2FR Intelligent Photoelectric Smoke Sensor is an analog addressable detector designed for reliable smoke detection in commercial and institutional fire alarm systems. This sensor utilizes advanced photoelectric sensing technology to identify visible particles of combustion quickly and accurately.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Equipment |
| Part Number | ASD-PL2FR |
| Subcategory | Photoelectric Smoke Sensor |
| Sensor Type | Intelligent analog photoelectric sensor |
| Detection Method | Light scattering for visible smoke particles |
| Communication Protocol | Gamewell-FCI analog addressable |
| Operating Voltage | 15–32 VDC |
| Standby Current | 300 µA (average) |
| Alarm Current | 6.5 mA (LED on) |
| Remote Test Capability | Supported via compatible testing accessories |
| Color | Ivory |
| Mounting Base | Compatible with B501 series bases |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | Up to 95% RH, non-condensing |
| Indicators | Dual-color LED for power and alarm status |
| Compliance | UL Listed; NFPA 72 compliant |
| Dimensions | 2.1” (5.3 cm) H × 6.1” (15.5 cm) diameter (with base) |
| Weight | 0.3 lb (0.14 kg) |
Information About ASD-PL2FR
The ASD-PL2FR is part of Gamewell-FCI’s intelligent analog sensor line, designed for use with E3 Series and other compatible addressable control panels. Using photoelectric sensing principles, it detects smoke from smoldering or slow-developing fires with high precision and low false alarm susceptibility. Each sensor communicates status and sensitivity data digitally to the control panel, enabling automatic compensation for environmental changes. Housed in an ivory-colored enclosure, the ASD-PL2FR supports remote testing and maintenance functions through compatible test accessories, providing convenience and reliability in legacy fire protection systems. Although discontinued by the manufacturer, it remains a key component for maintaining existing Gamewell-FCI installations.
3. Key Features
- Photoelectric Detection: Detects visible smoke particles for early warning of smoldering fires.
- Intelligent Addressable Design: Communicates digitally with Gamewell-FCI control panels.
- Analog Sensing Technology: Provides continuous environmental compensation and drift correction.
- Remote Test Capability: Supports electronic testing through compatible test modules.
- Ivory Housing: Matches legacy Gamewell-FCI aesthetic for seamless system integration.
- Low Profile Design: Compact sensor blends with modern ceiling environments.
- UL/NFPA Certified: Meets recognized standards for fire detection performance.
- Legacy System Support: Ideal for maintaining discontinued Gamewell-FCI intelligent systems.
The ASD-PL2FR delivers the reliability and precision required for intelligent smoke detection in commercial and institutional fire alarm systems.
