Product Description P/N: ASD-PL3-BP
Description

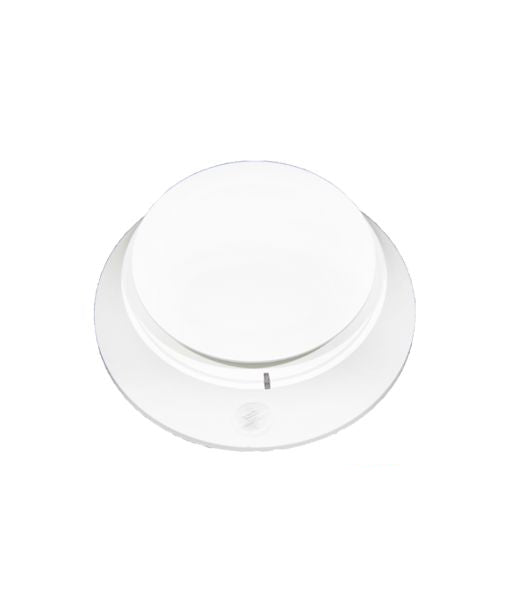

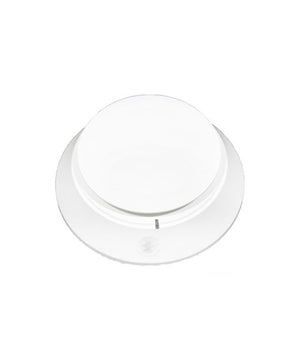

The Gamewell-FCI ASD-PL3-BP Smoke Detector is an intelligent, addressable photoelectric sensor designed for use with Gamewell-FCI fire alarm control panels. It utilizes advanced light-scattering detection technology to identify smoke particles from smoldering and flaming fires.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Equipment |
| Part Number | ASD-PL3-BP |
| Subcategory | Smoke Detector |
| Detector Type | Intelligent addressable photoelectric smoke detector |
| Detection Method | Light scattering (photoelectric) |
| Communication Protocol | Gamewell-FCI analog addressable |
| Operating Voltage Range | 15–32 VDC |
| Standby Current | 300 µA (average) |
| Alarm Current | 6.5 mA (LED on) |
| Mounting Base | B210LP or compatible plug-in base |
| LED Indicators | Dual color (green for normal, red for alarm) |
| Operating Temperature Range | 32°F to 100°F (0°C to 38°C) |
| Humidity Range | Up to 95% RH, non-condensing |
| Housing Material | Flame-retardant plastic |
| Color | Off-white |
| Compliance | UL Listed; NFPA 72 compliant |
| Dimensions | 2.1" H × 6.1" Dia. (with base) |
| Weight | 0.3 lb (0.14 kg) |
Information About ASD-PL3-BP
The ASD-PL3-BP is part of Gamewell-FCI’s intelligent ASD-PL3 detector series, engineered to offer early warning smoke detection in commercial and institutional environments. Using photoelectric sensing, it accurately detects visible smoke particles while minimizing nuisance alarms. Each detector is individually addressable and communicates detailed status information through Gamewell-FCI’s analog protocol, enabling the control panel to make real-time sensitivity adjustments. The unit installs into a standard B210LP plug-in base and includes dual-color LED indicators for normal and alarm conditions. With its low-profile design and advanced signal processing, the ASD-PL3-BP is ideal for use in offices, schools, hospitals, and industrial applications.
Key Features:
- Photoelectric Sensing: Detects visible smoke from smoldering and flaming fires.
- Intelligent Addressable Design: Communicates with compatible Gamewell-FCI panels via digital protocol.
- Advanced Signal Processing: Reduces false alarms and maintains stable operation in variable environments.
- Dual-Color Status LEDs: Provides clear visual indication of power and alarm states.
- Low-Profile Housing: Blends seamlessly into modern architectural environments.
- Plug-In Base Compatibility: Mounts easily to standard B210LP bases for quick installation.
- Environmental Compensation: Automatically adjusts for dust accumulation to maintain accuracy.
- UL/NFPA Certified: Meets fire detection and life-safety standards for commercial use.
The ASD-PL3-BP delivers the reliability and precision required for intelligent photoelectric smoke detection in Gamewell-FCI fire alarm systems.
