AST3501-T1-AF | Pro-face 10.4 inch HMI Touchscreen

Description

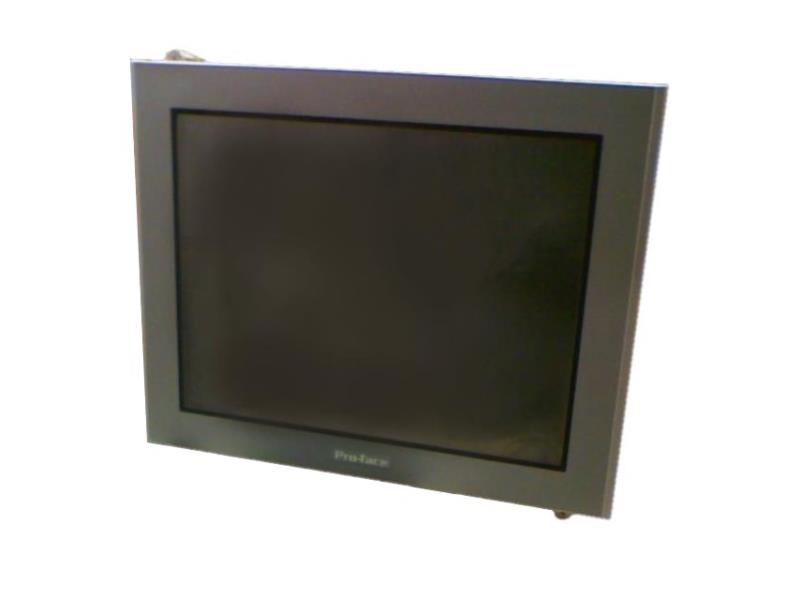

Pro-face AST3501-T1-AF is a 10.4-inch HMI touchscreen designed for industrial automation applications. It provides an interface for monitoring and controlling system operations. The unit supports standard input/output functions typical of HMI devices and is suitable for various industrial environments.

Technical Specifications

Information About AST3501-T1-AF

The Pro-face AST3501-T1-AF is a Human-Machine Interface (HMI) designed for industrial automation and control applications. Classified under the HMI/MMI/OIT category, this specific model falls within the subcategory of Operator Interface Terminal (OIT) boards/modules. It is engineered to provide a reliable and user-friendly interface for operators to monitor, control, and interact with complex industrial systems.

The AST3501-T1-AF features a 10.4-inch TFT-type color LCD screen, offering a display resolution of 640 x 480 dots (VGA). The display supports up to 256 colors without the blink feature and 64 colors with the blink feature enabled. This color range ensures that critical data, alarms, and operational statuses are easily distinguishable, enhancing the user interface's effectiveness in various industrial environments.

One of the key features of the AST3501-T1-AF is its CCFL backlight, designed to provide up to 50,000 hours of continuous use. This long backlight life reduces the need for frequent maintenance and ensures consistent visibility in various lighting conditions, which is crucial in maintaining operational efficiency and safety. The backlight's longevity also contributes to the overall durability and reliability of the HMI, making it a suitable choice for applications where continuous operation is required.

The device is powered by an input voltage range of AC100 to 240V, offering flexibility and compatibility with standard industrial power supplies. This wide voltage range makes the AST3501-T1-AF adaptable to different installation environments, whether in manufacturing plants, process control centers, or other industrial facilities. The input voltage flexibility ensures that the HMI can be easily integrated into existing systems without the need for additional power conversion equipment.

In terms of physical dimensions, the AST3501-T1-AF measures W270.5mm [10.65in] x H212.5mm [8.37in] x D57mm [2.24in]. These compact dimensions allow for easy installation in control panels or operator stations, where space may be limited. Despite its compact size, the device maintains a robust construction, designed to withstand the rigors of industrial environments. The unit’s weight is approximately 2.5kg [5.5lb], making it manageable for installation and reducing the load on mounting systems.

The AST3501-T1-AF is built to meet high standards of environmental protection and durability, as indicated by its compliance with IP65f and NEMA #250 TYPE 4X/13 standards. These ratings ensure that the device is resistant to dust, water, and other environmental contaminants, making it suitable for use in harsh industrial settings. The IP65f rating, in particular, guarantees protection against low-pressure water jets from all directions, while the NEMA #250 TYPE 4X/13 standards provide additional assurance of the unit’s resistance to corrosion and exposure to industrial chemicals.

As a product of Pro-Face by Schneider Electric, the AST3501-T1-AF benefits from the manufacturer’s reputation for producing high-quality industrial automation solutions. Pro-Face is well-known for its commitment to innovation and reliability, ensuring that the AST3501-T1-AF meets the demanding requirements of modern industrial applications. The model number 3580208-01 is associated with this device, indicating its specific configuration and features within the Pro-Face product line.

The combination of the 10.4-inch display, reliable backlighting, and robust environmental protection makes the AST3501-T1-AF a versatile and dependable HMI for a wide range of industrial applications. Whether used in manufacturing, process control, or other automation tasks, this device provides operators with the necessary tools to monitor and control systems effectively. Its ease of integration, durable construction, and compliance with stringent industrial standards make it a practical choice for operators seeking a reliable HMI solution.

In summary, the Pro-face AST3501-T1-AF HMI is designed to meet the needs of industrial operators who require a durable, reliable, and easy-to-use interface for controlling and monitoring industrial processes. Its technical specifications, including a 10.4-inch TFT display, CCFL backlighting, and compliance with IP65f and NEMA #250 TYPE 4X/13 standards, ensure that it delivers consistent performance in demanding environments. The wide input voltage range and compact dimensions further enhance its versatility, making it suitable for a variety of installation scenarios. As a part of the Pro-Face by Schneider Electric product line, the AST3501-T1-AF represents a high-quality, reliable choice for industrial automation professionals.
