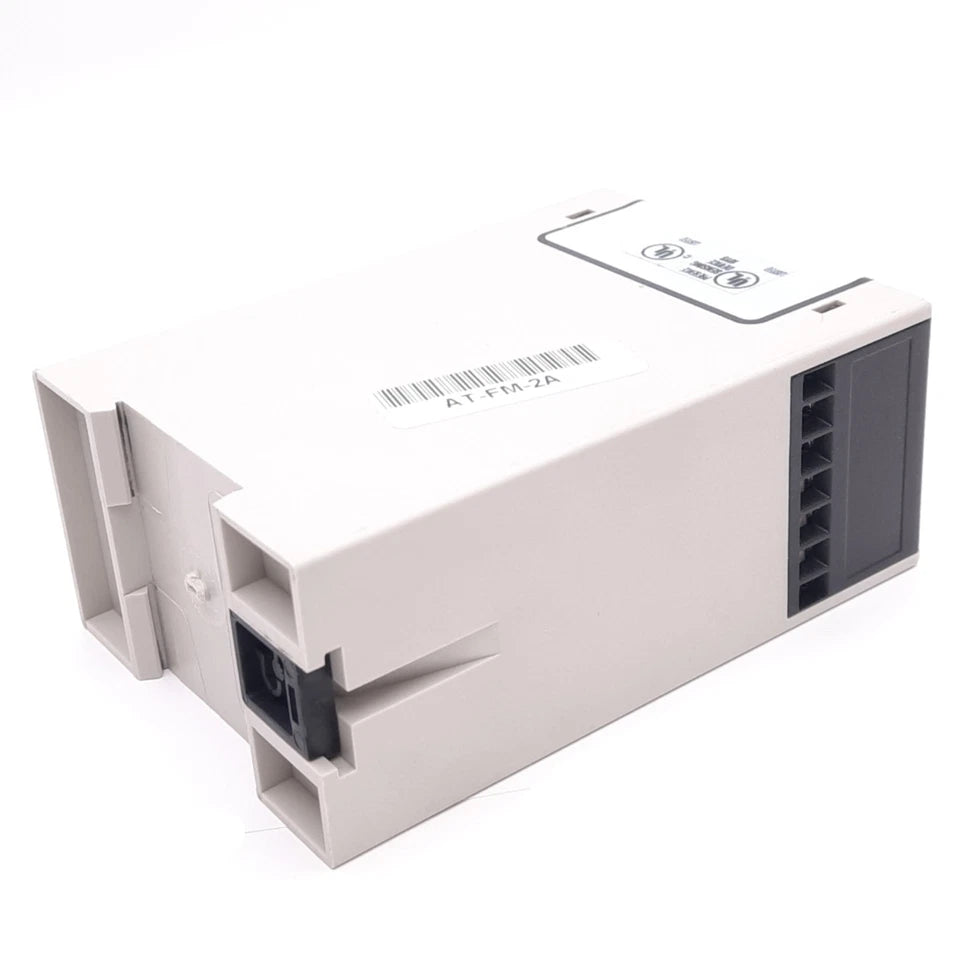

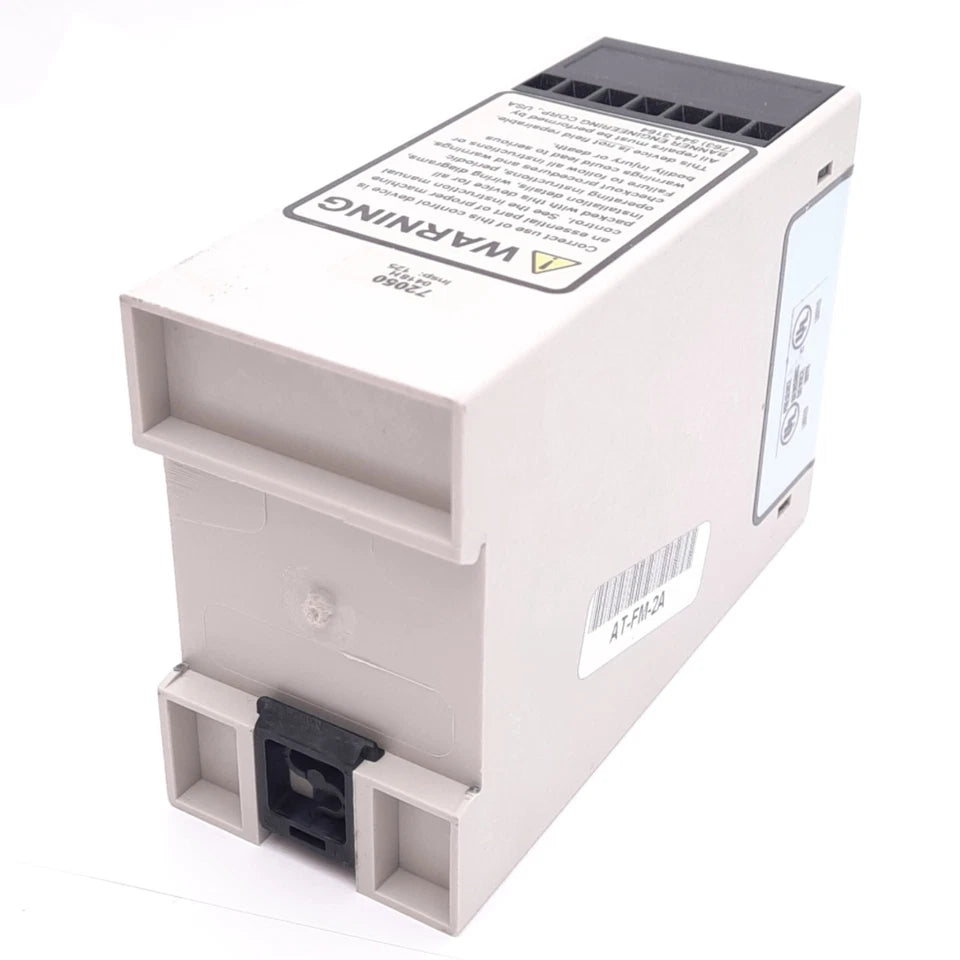

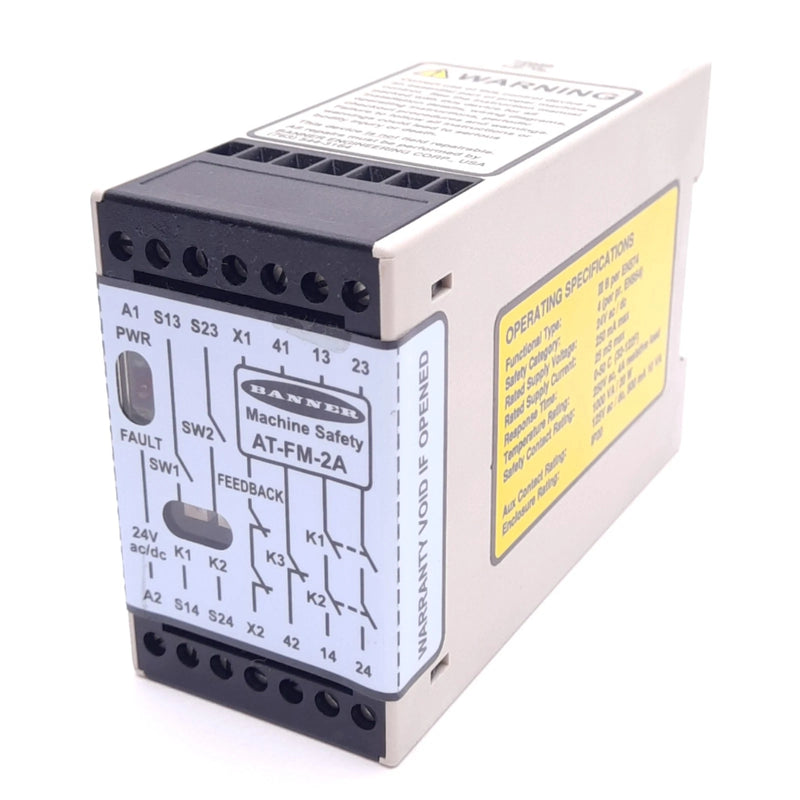

AT-FM-2A | Banner Engineering Two-Hand Control Safety Relay, 24 V AC/DC
- Regular price
- $592.00
- Sale price
- $592.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AT-FM-2A
Description
The Banner Engineering AT-FM-2A is a safety relay designed for two-hand control safety applications in industrial machinery. It monitors simultaneous input activation to help prevent accidental machine operation and supports controlled safety outputs. This relay is intended for use in safeguarding circuits where operator hand protection is required.

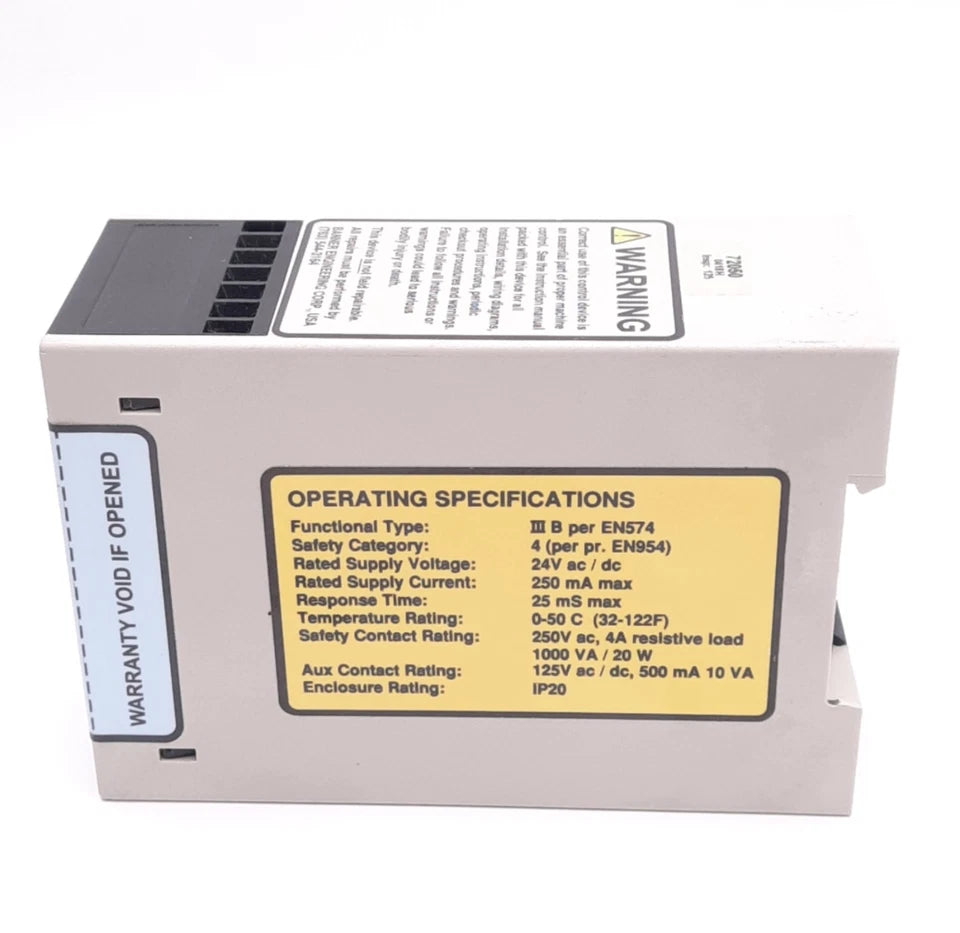

Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Safety & Machine Guarding |
| Part Number | AT-FM-2A |
| Subcategory | Safety Relays |
| Device Type | Two-Hand Control Safety Relay |
| Supply Voltage | 24 V AC/DC |
| Power Type | AC/DC Universal |
| Safety Category Rating | Category 3 |
| Safety Inputs | Dual Channel (NPN/PNP or Dry Contact) |
| Number of Safe Inputs | 1 |
| Safe Outputs | 2 × NO, Relay Rated 4 A |
| Non-Safe Outputs | 1 × NC, Relay Rated 0.5 A |
| Response Time | ≤ 25 ms |
| Mechanical Life | 10 million operations |
| Electrical Life | 100,000 cycles @ 1000 VA |
| Housing Material | Polycarbonate |
| Mounting Type | DIN Rail |
| Terminal Type | Screw Clamp |
| IP Rating | IP20 |
| Operating Temperature Range | Up to 50 °C |
| Dimensions (H × W × D) | 75 × 45 × 110 mm |
| Weight | 0.66 lb |
Information About AT-FM-2A
The AT-FM-2A is part of Banner Engineering’s safety relay lineup used in two-hand control systems such as the DUO-TOUCH SG Series. It features a polycarbonate housing suitable for DIN-rail mounting inside control panels. The relay supports both AC and DC power input and accepts dual-channel safety inputs using either solid-state or dry contact configurations. It is commonly used in press controls, assembly machinery, and equipment requiring Category 3 safety compliance.
Key Features:
- Two-Hand Control Safety Relay: Designed to monitor simultaneous actuation for operator safety.
- Universal Power Supply: Operates on 24 V AC/DC for flexible system integration.
- Dual-Channel Safety Inputs: Supports NPN/PNP solid-state or dry contact input configurations.
- Safety-Rated Outputs: Includes two normally open safety outputs rated at 4 A.
- Non-Safe Auxiliary Output: Provides one normally closed auxiliary relay output.
- DIN-Rail Mounting: Designed for straightforward installation in control panels.
- Category 3 Safety Rating: Suitable for safety circuits requiring monitored redundancy.
The AT-FM-2A delivers the reliability and precision required for two-hand control safety relay applications.
