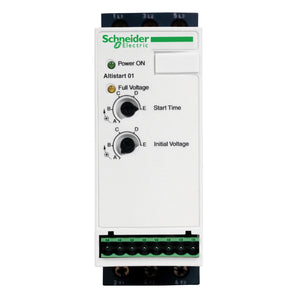

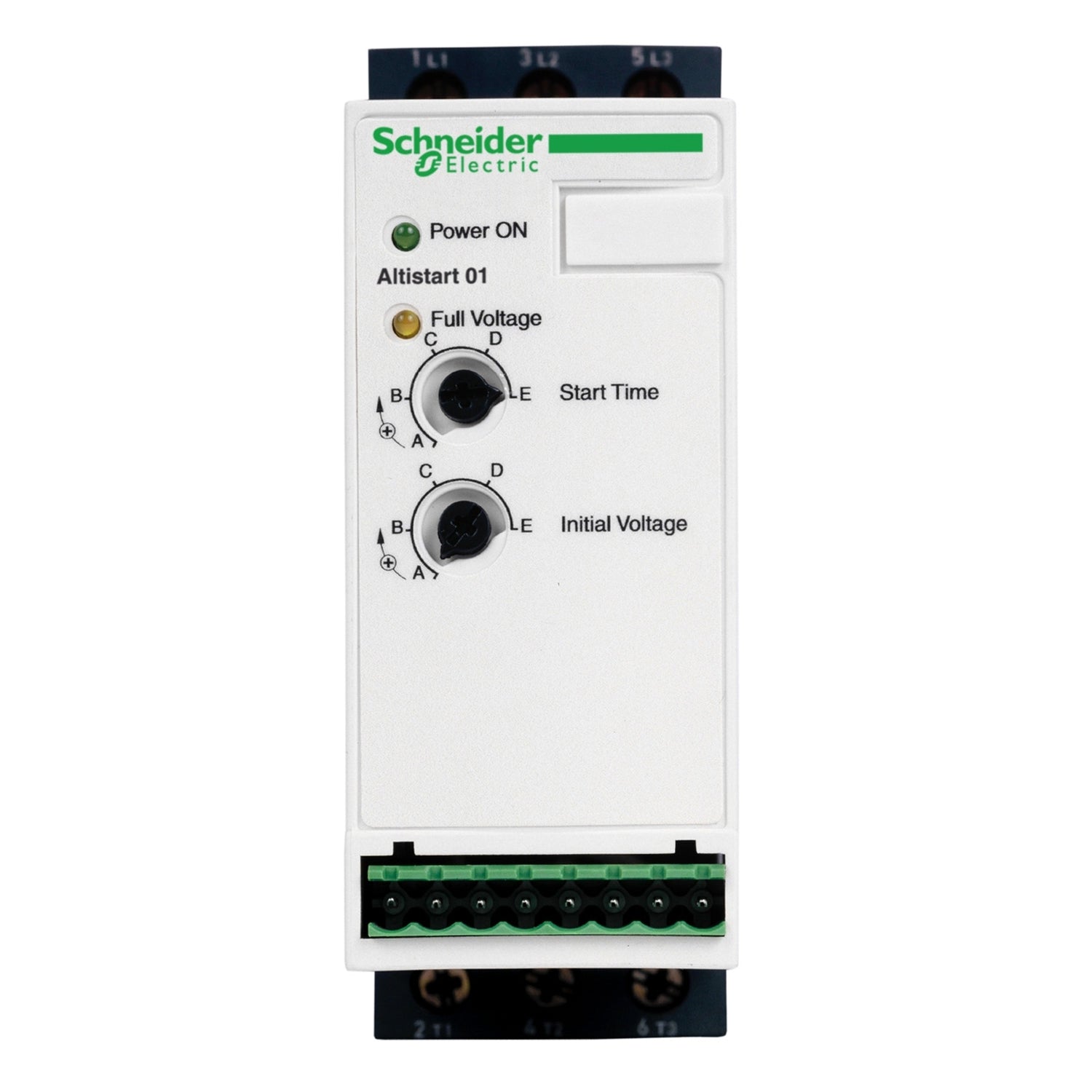

ATS01N112FT | Schneider Electric Altistart 01 Soft Starter 12 A, 110–480 V, 1.5–5.5 kW Motors
- Regular price
- $225.00
- Sale price
- $225.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATS01N112FT
Description
The Schneider Electric ATS01N112FT is a compact soft starter from the Altistart 01 series designed for smooth starting and stopping of asynchronous motors. Supporting up to 12 A and a load voltage range of 110 to 480 V, it provides controlled acceleration for motors from 1.5 kW to 5.5 kW, minimizing mechanical stress and extending equipment life.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | ATS01N112FT |
| Subcategory | Soft Start |
| Type | Module |
| Motor Type | AC Motor |
| Control / Drive Type | Soft Start / Soft Stop |
| Number of Motors | 1 |
| Voltage – Load | 110–480 V |
| Current – Output | 12 A |
| Wattage – Load | 5500 W (5.5 kW) |
| Voltage – Supply | 99–528 V |
| Mounting Type | Chassis Mount (DIN Rail or Panel) |
| Operating Temperature | −10 °C to 50 °C |
| Series | Altistart 01 |
| Integrated Features | Bypass Contactor, Kickstart Mode |
| Ramp Time | 1–10 Seconds (Soft Start/Soft Stop) |
| Width | 45 mm |
Information About ATS01N112FT
The ATS01N112FT is part of Schneider Electric’s Altistart 01 family, developed to provide a simple and compact soft start solution for single-phase and three-phase asynchronous motors. Capable of handling motors up to 5.5 kW on three-phase supplies and 1.5 kW on single-phase supplies, it offers reliable torque and current control for light-duty machinery. The unit mounts easily on DIN rails or panels and features an integrated bypass contactor to reduce heat generation during steady-state operation. Its user-friendly configuration with only two primary adjustments makes it well suited for general-purpose applications requiring gentle acceleration and reduced mechanical wear.
Key Features:
- Controlled Soft Start and Soft Stop: Provides 1–10 second ramping to reduce inrush current, minimize mechanical stress, and extend the lifespan of motors and driven machinery.
- Support for Multiple Motor Types: Compatible with single-phase and three-phase asynchronous motors, delivering flexibility across conveyors, pumps, fans, small cranes, and belt-driven systems.
- Integrated Bypass Contactor: Automatically transfers the motor to full voltage once nominal speed is reached, reducing heat dissipation and improving long-term efficiency.
- Compact 45 mm Form Factor: One of the smallest soft starters in its class, allowing installation in tight panels and high-density control enclosures.
- Kickstart Functionality: Includes a selectable kickstart feature for loads that require additional torque during initial movement, improving startup reliability.
- Simple Two-Setting Configuration: Designed for quick commissioning by non-specialists, offering easy adjustment of ramp time and start voltage.
- Dual LED Status Indicators: Provides clear visual feedback for “Power ON” and “Up-to-Speed” status, enhancing diagnostics and operator awareness.
- Wide Voltage and Temperature Range: Operates from −10 °C to 50 °C with load voltages from 110–480 V, ensuring robust performance across varied installation environments.
The ATS01N112FT delivers the reliability and precision required for smooth, controlled starting and stopping of asynchronous motors in compact industrial applications.
