ATS01N125FT | Schneider Electric | Soft starter for asynchronous motor
- Regular price
- $439.00
- Sale price
- $439.00
- Regular price
-
Do you need more quantity?

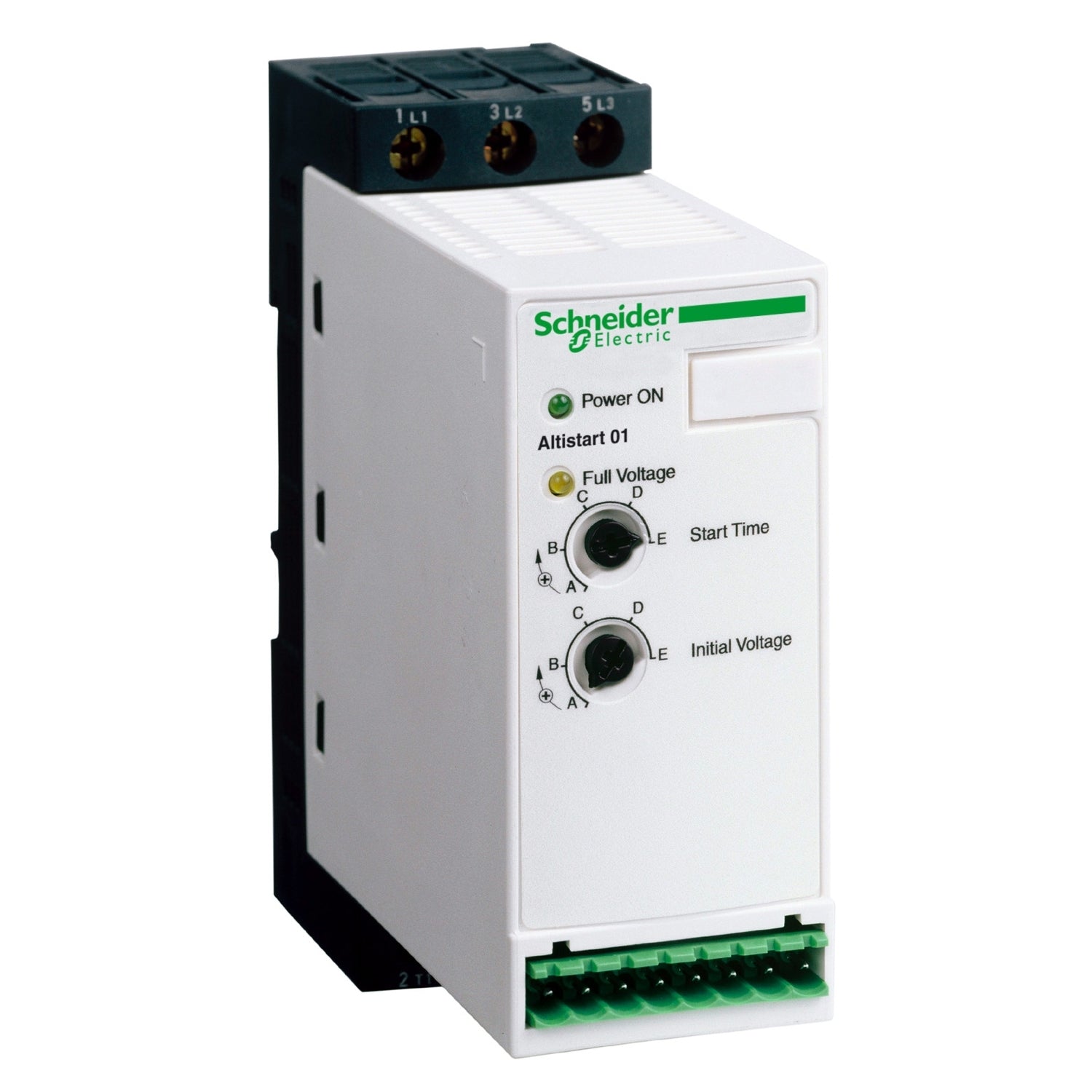

Product Description P/N: ATS01N125FT
Description
The ATS01N125FT is a soft starter designed for asynchronous motors, belonging to the Altistart 01 series. With a rating of 25A, it is capable of feeding single or 3-phase asynchronous motors with power ratings up to 11kW or 15hp for 3-phase (110V to 480V AC) and up to 2.2kW for single phase (110V to 230V AC).
This DIN rail mounted soft starter is engineered to facilitate smooth starts for various machines including conveyors, pumps, fans, compressors, automatic doors, gates, small cranes, and belt-driven machinery. With a width of 45mm, it is one of the most compact soft starters available, allowing for versatile installation options.
Technical Specifications
Part # |
ATS01N125FT |
Manufacturer |
SCHNEIDER ELECTRIC |
Brand |
TELEMECANIQUE |
Category |
Drives |
Subcategory |
Soft Start |
Range of product |
Altistart 01 |
Product or component type |
Soft starter |
Product destination |
Asynchronous motors |
Product specific application |
Simple machine |
Component name |
ATS01 |
Network number of phases |
3 phases |
Power supply voltage |
110...480 V (- 10...10 %) |
Icl nominal current |
25 A |
Utilisation category |
AC-53B conforming to EN/IEC 60947-4-2 |
Current at nominal load |
125 A at nominal load |
Type of start |
Start with voltage ramp |
Power dissipation in W |
126 W in transient state |
Assembly style |
With heat sink |
Function available |
Integrated bypass |
Power supply voltage limits |
99...528 V |
Power supply frequency |
50...60 Hz (- 5...5 %) |
Power supply frequency limits |
47.5...63 Hz |
Output voltage |
<= power supply voltage |
Control circuit voltage |
240 V +/- 10 % AC, 80 mA |
Starting torque |
30...80 % of starting torque of motor connected directly on the line supply |
Discrete output current |
3 A AC-15 |
Tightening torque |
0.5 N.m |
IP degree of protection |
IP20 |
Pollution degree |
2 conforming to EN/IEC 60947-4-2 |
Vibration resistance |
1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-6 |
Shock resistance |
15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
Relative humidity |
5...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
Ambient air temperature for operation |
40...50 °C with current derating of 2 % per °C |
Ambient air temperature for storage |
-25...70 °C conforming to EN/IEC 60947-4-2 |
Operating altitude |
> 1000 m with current derating of 2.2 % per additional 100 m |
Information About ATS01N125FT
The ATS01N125FT is a soft starter designed for asynchronous motors, specifically the Altistart 01 series. It is DIN rail mounted, allowing for efficient and space-saving installation. This soft starter is versatile, capable of feeding both single and 3-phase asynchronous motors with a maximum current rating of 25A.
For 3-phase motors, this Altistart 01 model supports a rated power of up to 11kW or 15hp within the voltage range of 110V to 480V AC. Additionally, it accommodates single-phase motors up to 2.2kW within the voltage range of 110V to 230V AC. This flexibility makes it suitable for various motor applications, providing a smooth start for machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes, and belt-driven machinery.
With a compact width of 45mm, the ATS01N125FT is one of the smallest soft starters available, allowing for installation in confined spaces. Its DIN rail mounting capability enhances its adaptability, making it suitable for diverse industrial environments.
The soft starter features an integrated bypass, contributing to noise reduction and heat dissipation. This design consideration enhances the overall efficiency and reliability of the soft starter during operation. The simplicity of the ATS01N125FT is highlighted by its straightforward setup, requiring only two settings. This user-friendly configuration process enables non-specialists to easily implement and adjust the soft starter according to specific application requirements.
The primary function of the ATS01N125FT is to provide a smooth starting mechanism for machinery, preventing abrupt starts that can cause mechanical stresses. This feature is crucial in extending the service life of connected equipment and ensuring a more controlled and reliable operation.
