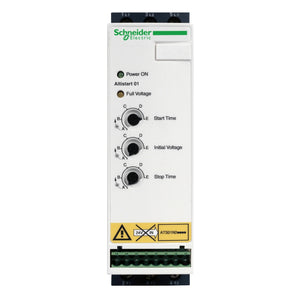

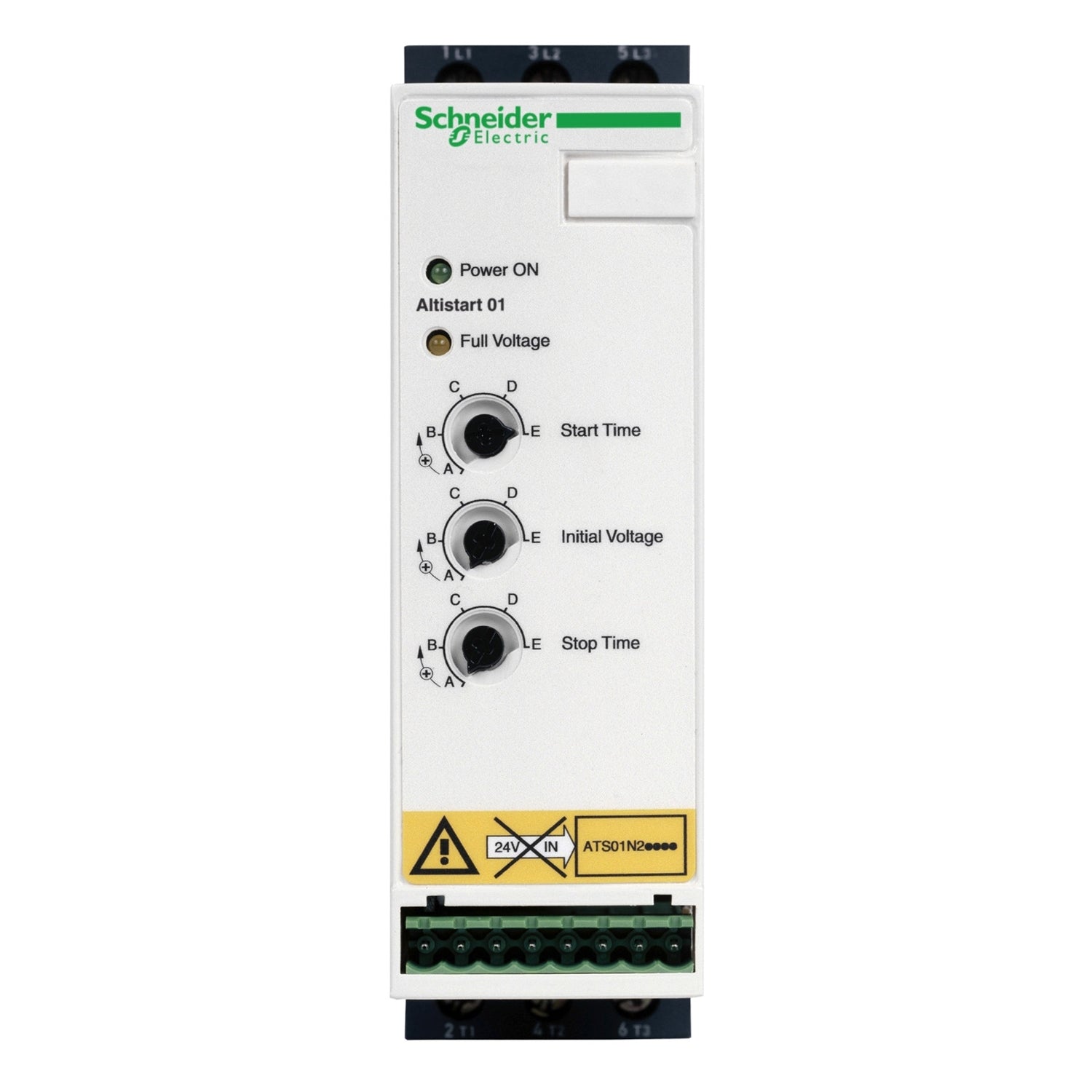

ATS01N232RT | Schneider Electric Altistart 01 Soft Starter With Built-In Bypass 20 HP
- Regular price
- $292.00
- Sale price
- $292.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATS01N232RT
Description
The Schneider Electric ATS01N232RT is a compact soft starter designed for smooth starting of three-phase asynchronous motors up to 20 HP. With built-in bypass contactor and 2-phase control, it reduces mechanical stress and provides reliable motor acceleration in simple machine applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | ATS01N232RT |
| Subcategory | Soft Start |
| Family | Altistart 01 |
| Type | ATS01 |
| Horsepower Rating | 20 HP |
| Amperage | 32 A |
| Voltage Rating | 414–528 VAC (3-Phase) |
| Control Voltage | 24 VAC / 24 VDC |
| Poles | 3 |
| Phase | 3 |
| NEMA Rating | 00 |
| Enclosure Type | IP20 |
| Minimum Operating Temperature | −10 °C |
| Maximum Operating Temperature | 40 °C |
| Mounting Type | DIN Rail |
| Connection Type | Screw Terminals |
| Bypass Function | Integrated Bypass Contactor |
| Class Rating | Class 10 |
| Application Type | Asynchronous motor soft starting |
| Control Method | 2-phase controlled soft start |
Information About ATS01N232RT
The ATS01N232RT is a Schneider Electric Altistart 01 soft starter engineered for small to medium-sized three-phase asynchronous motors requiring controlled starting. With a 32-amp rating and support for motor voltages from 415 to 500 VAC, it provides reliable ramp-up control while minimizing stress on belts, gears, and driven loads. Its built-in bypass contact reduces heat and noise during steady-state operation, improving both efficiency and longevity. Designed for compact DIN-rail installation, the device is ideal for conveyors, pumps, fans, gates, and various belt-driven mechanisms that benefit from smooth acceleration and deceleration.
Key Features:
- Two-Phase Control: Provides managed voltage ramp-up for simple machines requiring gentle motor starting.
- Integrated Bypass Contactor: Automatically engages after startup to reduce thermal dissipation and improve operating efficiency.
- Wide Voltage Compatibility: Supports 414–528 VAC three-phase motor systems with 24 VAC/DC control power.
- Compact DIN-Rail Design: Slim form factor enables installation in tight control panels and small machine frames.
- Simplified Setup: Adjustable soft-start and soft-stop ramps (1–10 seconds) with minimal configuration required.
- Kickstart Function: Offers additional starting torque for heavy or hard-to-start loads.
- LED Status Indicators: Provides visual feedback for power-ON and motor up-to-speed conditions.
- IP20 Protection: Suitable for installation inside enclosures in industrial and commercial environments.
The ATS01N232RT delivers the reliability and precision required for controlled motor starting in compact, cost-effective industrial and commercial applications.
