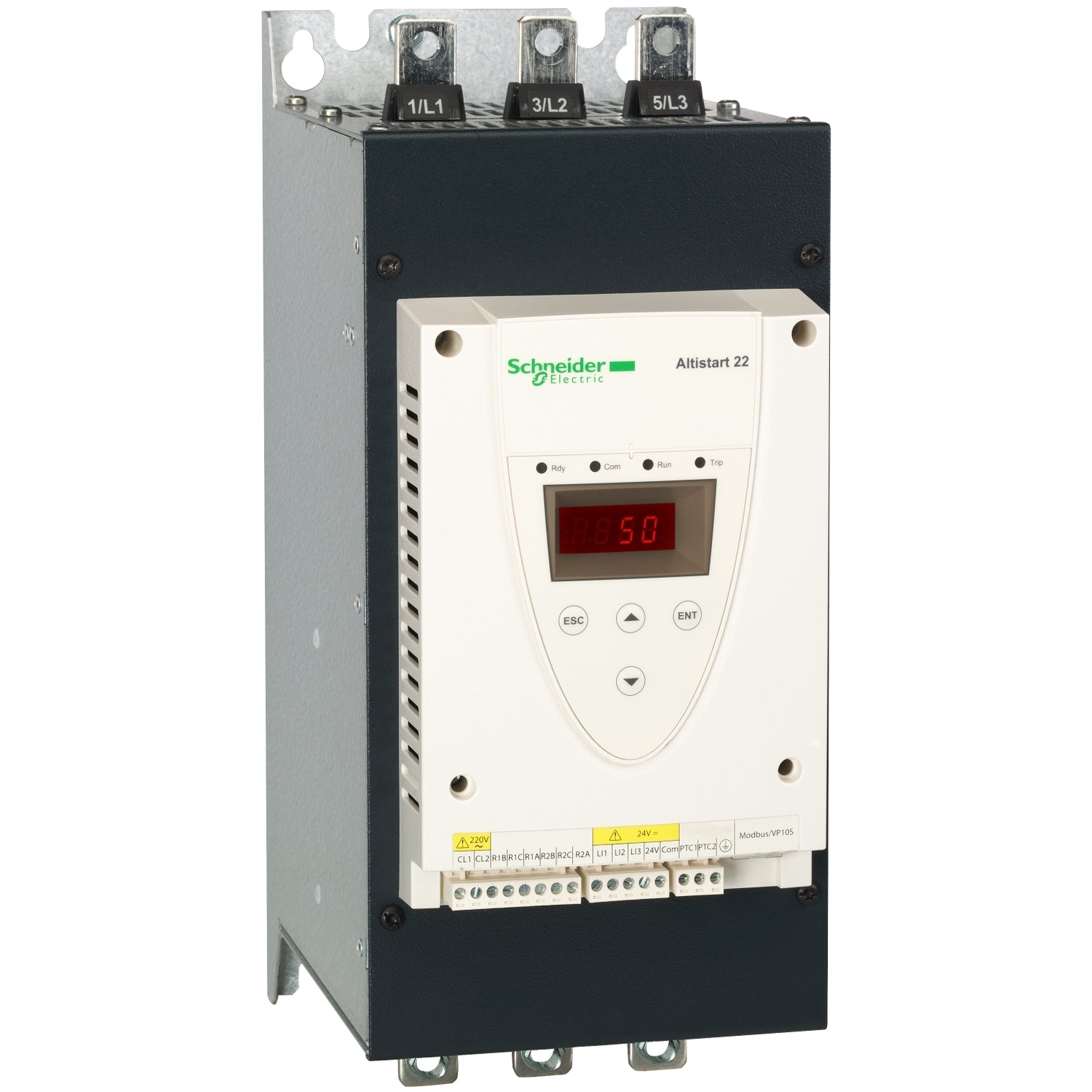

ATS22C11S6U | Schneider Electric Altistart 22 Soft Starter For 3-Phase Motors
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATS22C11S6U
Description
The Schneider Electric ATS22C11S6U is a soft starter designed for smooth acceleration and deceleration of three-phase asynchronous motors. Supporting motor voltages from 208 to 575 VAC with a current rating of 110 A, it provides controlled motor starting while reducing mechanical stress and extending equipment life.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | ATS22C11S6U |
| Subcategory | Soft Start |
| Series | ATS22 |
| Type | Internal Bypass |
| Voltage Rating | 208–600 VAC |
| Coil Voltage | 110 VAC |
| Amperage Rating | 110 A |
| Motor Power | 30 hp (supports up to 100 hp depending on voltage) |
| Phase | 3 |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Wattage | 73 W |
| Connection Type | Plug-In |
| Enclosure Type | IP20 |
| Operating Temperature | −10 to 40 °C |
| Dimensions | 150 mm W × 229.5 mm D × 356 mm H |
| Mounting Type | Panel Mount |
| Application | Asynchronous motor soft starting |
| Bypass Function | Integrated electronic bypass |
| Software Compatibility | SoMove configuration software |
Information About ATS22C11S6U
The ATS22C11S6U is a Schneider Electric Altistart 22 soft starter engineered to provide controlled starting and stopping of three-phase asynchronous motors in industrial applications. With a current rating of 110 A and support for motor voltages up to 575 VAC, it is suitable for motors from 30 to 100 horsepower across pumps, compressors, fans, and material-handling equipment. Its integrated bypass reduces heat dissipation and operating noise, providing energy-efficient operation during steady-state running. Designed for versatility, it offers configuration via SoMove software, enabling fast commissioning and adaptation to various machine control requirements.
Key Features:
- 110 A Soft Starting Capability: Supports a wide motor power range from 30 to 100 hp depending on supply voltage.
- Integrated Bypass System: Automatically engages after startup to reduce heat generation, noise, and energy consumption.
- Wide Voltage Flexibility: Operates with motor voltages from 208 to 575 VAC for compatibility across global installations.
- Adaptive Control Profiles: Offers multiple soft-start and soft-stop profiles to match application-specific torque and speed requirements.
- Advanced Motor Protection: Includes configurable thermal protection and active monitoring of all three supply phases.
- SoMove Software Support: Enables fast configuration, backup, and restore for maintenance or commissioning efficiency.
- Robust Industrial Design: Rated for −10 to 40 °C operation with IP20 enclosure for protected environments.
- Slim Panel-Mount Housing: Compact footprint simplifies installation within machine frames or electrical panels.
The ATS22C11S6U delivers the reliability and precision required for smooth and efficient motor starting in demanding industrial applications.
