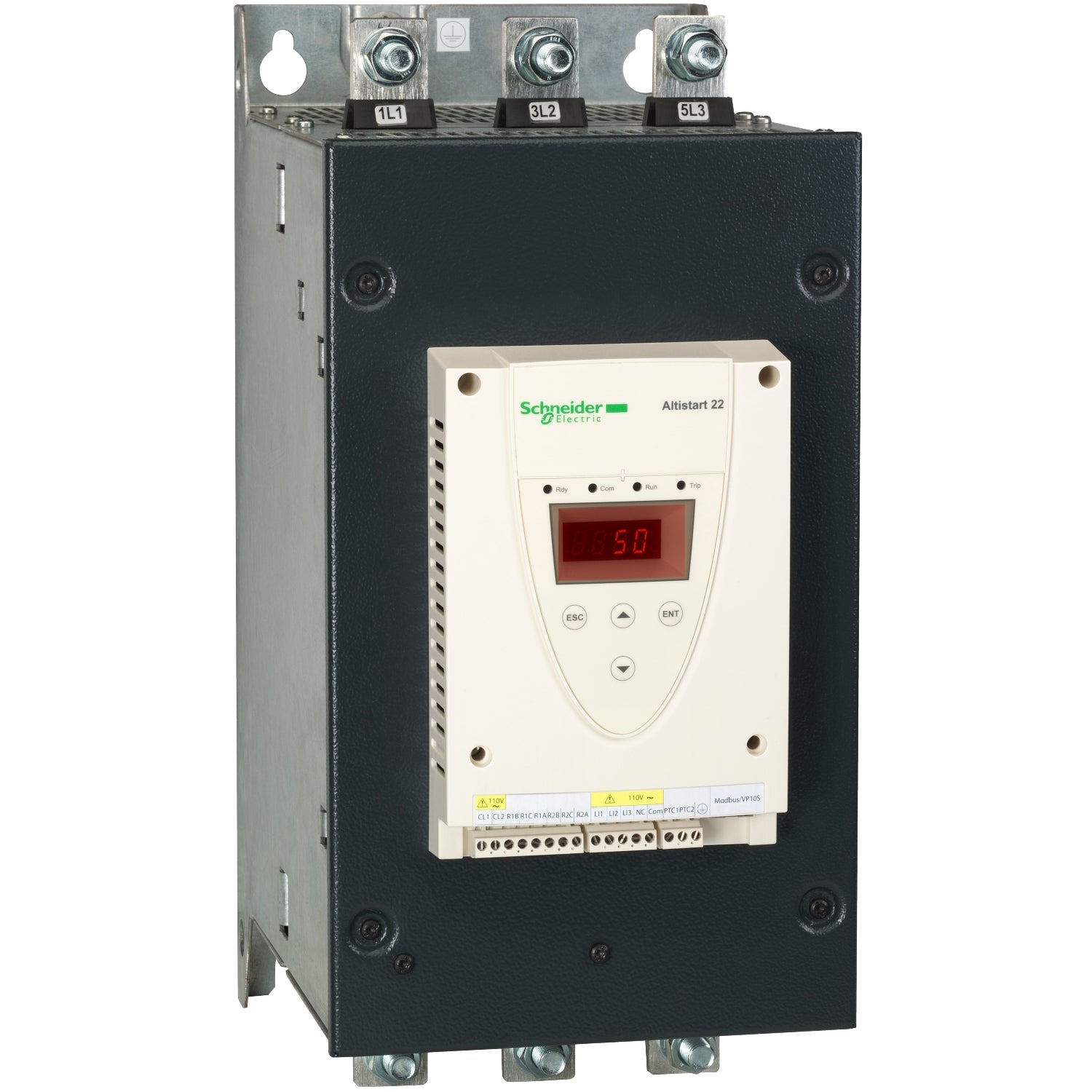

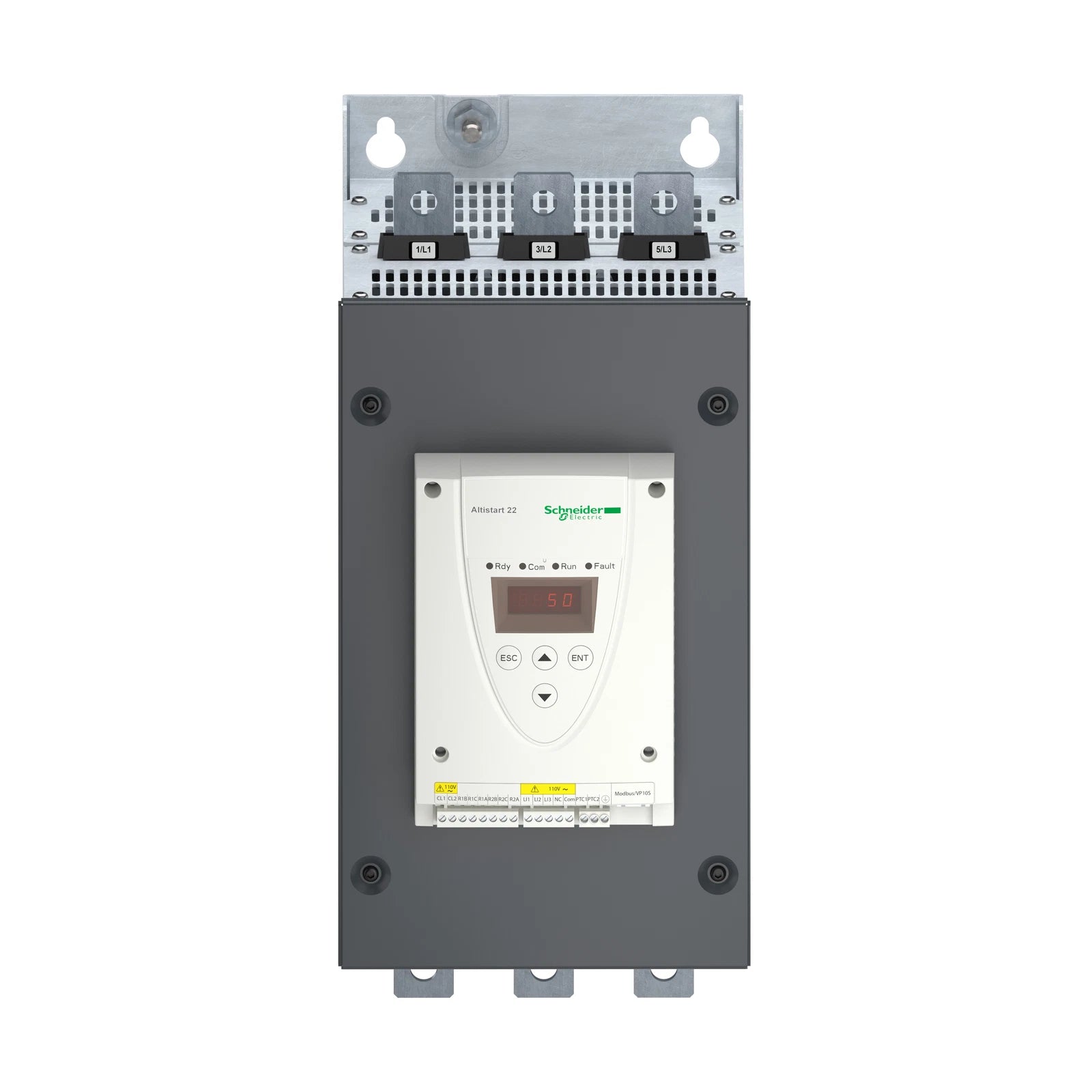

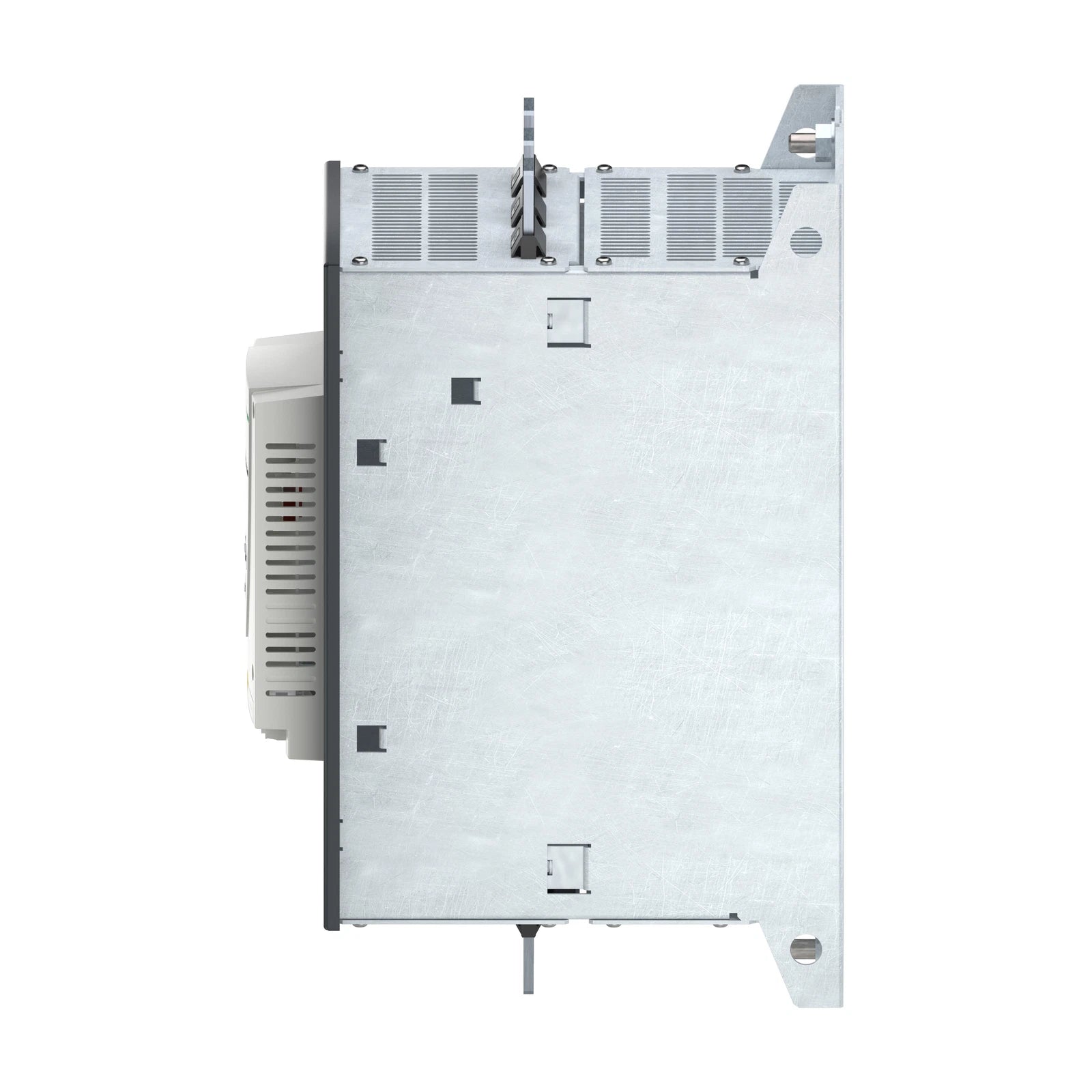

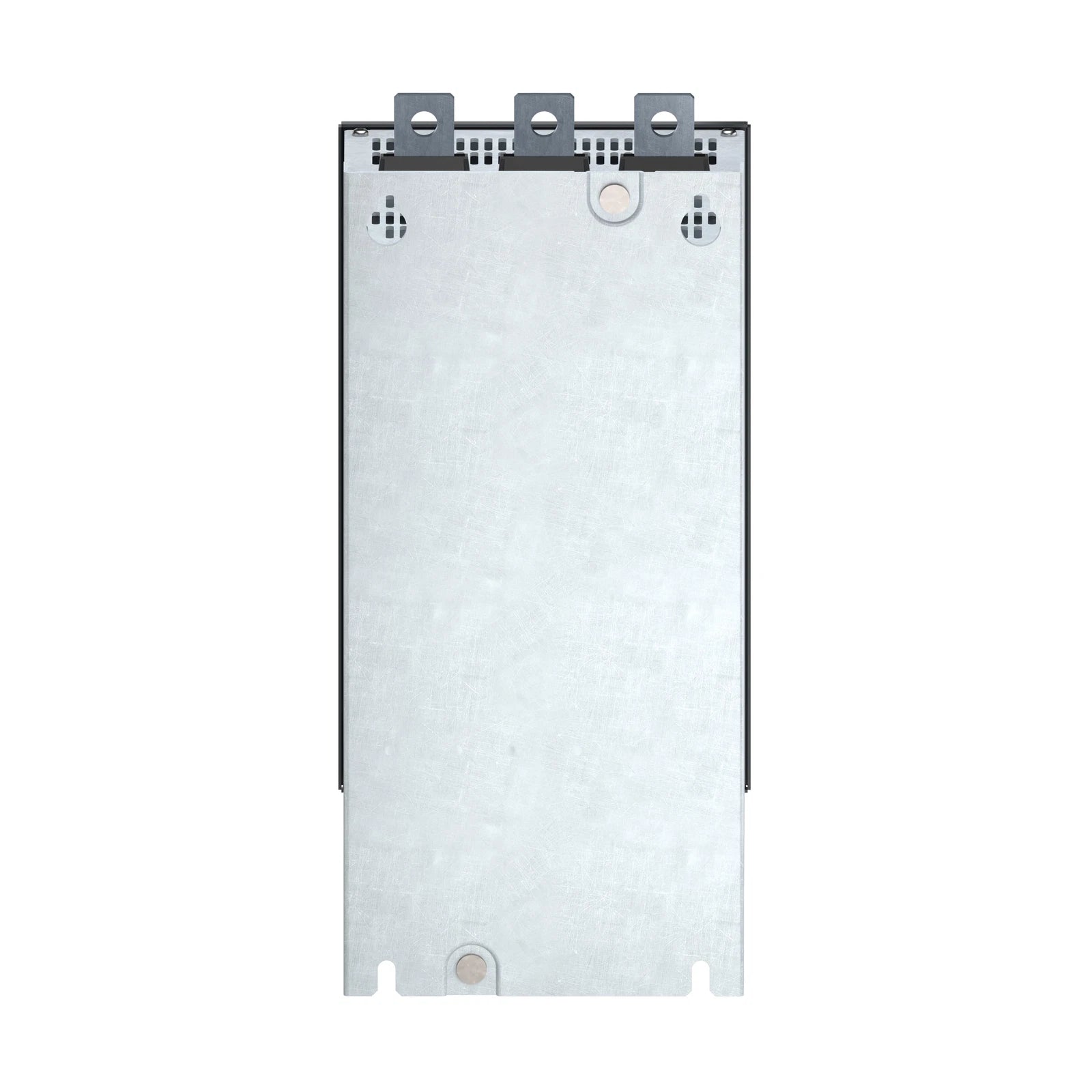

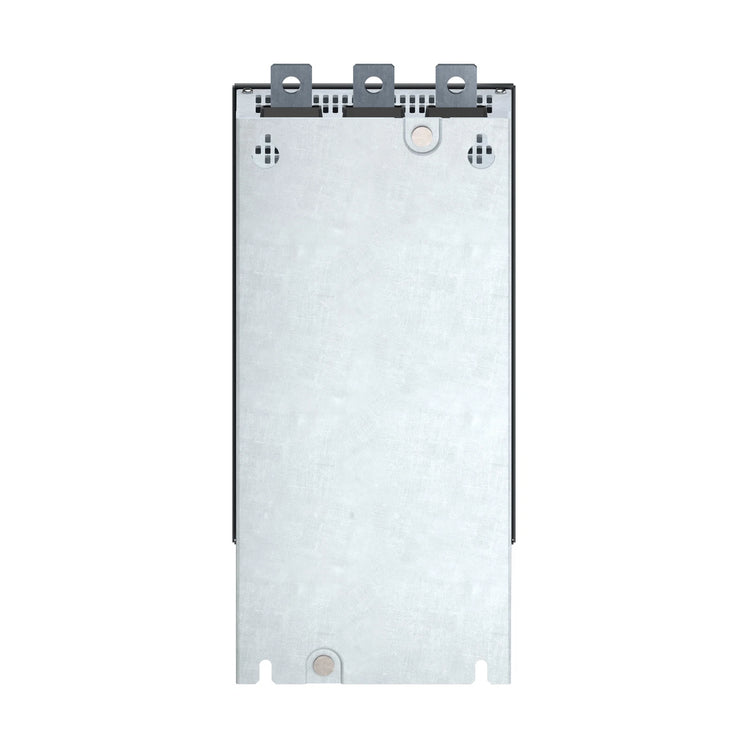

Part #: ATS22C32S6U Manufactured by: Schneider Electric
Regular price
$4,099.00
Sale price
$4,099.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ATS22C32S6U is a soft starter belonging to the Altistart 22 series, designed for 3-phase asynchronous motors in suppl...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: ATS22C32S6U
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: ATS22C32S6U

Description / Specifications

Description

The ATS22C32S6U is a soft starter designed for asynchronous motors, part of the Altistart 22 series. It is suitable for 3-phase motor supply line connection, featuring a rating of 320A, with a rated power ranging from 100HP to 300HP, and a rated voltage spanning from 230V to 575V AC. Primarily intended for employment in various machines, including centrifugal and piston pumps, fans, screw compressors, and material handling equipment.

Its slim form factor enhances versatility, enabling mounting in frames of diverse machine types. Equipped with an Integrated bypass, it effectively reduces noise and diminishes heat dissipation, enhancing operational efficiency. Compatibility with SoMove software facilitates easy transfer of configurations and settings, facilitating swift installation of spare units.

Technical Specifications


Part #

ATS22C32S6U

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Drives

Subcategory

Soft Start

Power Factor

POWER RATING MULTIPLIER - 10

KW

32 AMP

Range of Product

Altistart 22

Product or Component Type

Soft starter

Product destination

Asynchronous motors

Product Specific Application

Pumps and fans

Component name

ATS22

Phase

3 phase

[Us] rated supply voltage

208...600 V - 15...10 %

Factory setting current

302 A

Power dissipation in W

150 W for standard applications

Utilisation category

AC-53A

Type of start

Start with torque control

IcL starter rating

320 A connection in the motor supply line

IP Degree of Protection

IP00

Assembly style

With heat sink

Function Available

Internal bypass

Supply voltage limits

177…660 V

Supply frequency

50...60 Hz - 10...10 %

Network Frequency

45...66 Hz

Device connection

In the motor supply line

[Uc] control circuit voltage

110 V - 15...10 % 50/60 Hz

Control circuit consumption

20 W

Discrete output number

2

Discrete input number

3

Discrete input type

LI1, LI2, LI3) logic

Discrete input voltage

110 V <= 121 V

Discrete input logic

Positive logic

Output current

0.4...1 Icl adjustable

PTC probe input

750 Ohm

Communication port protocol

Modbus

Connector Type

1 RJ45

Communication data link

Serial

Physical interface

RS485 multidrop

Transmission Rate

4800, 9600 or 19200 bps

Installed device

31

Protection type

Phase failure line

Thermal protection motor

Thermal protection starter

Marking

CE

Type of cooling

Forced convection

Operating position

Vertical +/- 10 degree

Height

16.73 in (425 mm)

Width

8.11 in (206 mm)

Depth

11.77 in (299 mm)

Net Weight

72.75 lb(US) (33 kg)

Shock resistance

15 gn 11 ms EN/IEC 60068-2-27

Noise level

56 dB

Pollution degree

Level 2 IEC 60664-1

Relative humidity

0…95 % without condensation or dripping water

Ambient Air Temperature for Storage

-13…158 °F (-25…70 °C)



Information About ATS22C32S6U



The ATS22C32S6U is a soft starter designed for asynchronous motors, specifically belonging to the Altistart 22 series. It facilitates the operation of 3-phase asynchronous motors in supply line connections. With a rating of 320A, it supports motors ranging from 100HP to 300HP, with a rated voltage spanning from 208V to 575V AC.

Engineered for both simple and complex machinery, including centrifugal and piston pumps, fans, screw compressors, and material handling equipment, the ATS22C32S6U offers versatile application possibilities. Its slim form factor enhances adaptability, enabling mounting within frames of various machine types.

Featuring an integrated bypass, this soft starter mitigates noise levels and reduces heat dissipation during operation, ensuring optimal performance and longevity of connected machinery. Moreover, the compatibility with SoMove software facilitates seamless configuration and settings transfer, facilitating quick installation of spare units.

The primary function of the ATS22C32S6U is to provide smooth starting for machinery, minimizing mechanical stresses during startup and subsequently extending the service life of the equipment. This capability is particularly beneficial in industrial environments where frequent starts and stops can lead to premature wear and tear on mechanical components.

In addition to its performance-enhancing features, the ATS22C32S6U adheres to stringent technical specifications and standards. It offers protection against phase failure and thermal overload for both the motor and the starter unit. The device operates within a wide temperature range, from -13°F to 158°F (-25°C to 70°C), ensuring reliability in diverse environmental conditions.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The ATS22C32S6U is a soft starter designed for asynchronous motors, part of the Altistart 22 series. It is suitable for 3-phase motor supply line connection, featuring a rating of 320A, with a rated power ranging from 100HP to 300HP, and a rated voltage spanning from 230V to 575V AC. Primarily intended for employment in various machines, including centrifugal and piston pumps, fans, screw compressors, and material handling equipment.

Its slim form factor enhances versatility, enabling mounting in frames of diverse machine types. Equipped with an Integrated bypass, it effectively reduces noise and diminishes heat dissipation, enhancing operational efficiency. Compatibility with SoMove software facilitates easy transfer of configurations and settings, facilitating swift installation of spare units.

Technical Specifications


Part #

ATS22C32S6U

Manufacturer

SCHNEIDER ELECTRIC

Brand

TELEMECANIQUE

Category

Drives

Subcategory

Soft Start

Power Factor

POWER RATING MULTIPLIER - 10

KW

32 AMP

Range of Product

Altistart 22

Product or Component Type

Soft starter

Product destination

Asynchronous motors

Product Specific Application

Pumps and fans

Component name

ATS22

Phase

3 phase

[Us] rated supply voltage

208...600 V - 15...10 %

Factory setting current

302 A

Power dissipation in W

150 W for standard applications

Utilisation category

AC-53A

Type of start

Start with torque control

IcL starter rating

320 A connection in the motor supply line

IP Degree of Protection

IP00

Assembly style

With heat sink

Function Available

Internal bypass

Supply voltage limits

177…660 V

Supply frequency

50...60 Hz - 10...10 %

Network Frequency

45...66 Hz

Device connection

In the motor supply line

[Uc] control circuit voltage

110 V - 15...10 % 50/60 Hz

Control circuit consumption

20 W

Discrete output number

2

Discrete input number

3

Discrete input type

LI1, LI2, LI3) logic

Discrete input voltage

110 V <= 121 V

Discrete input logic

Positive logic

Output current

0.4...1 Icl adjustable

PTC probe input

750 Ohm

Communication port protocol

Modbus

Connector Type

1 RJ45

Communication data link

Serial

Physical interface

RS485 multidrop

Transmission Rate

4800, 9600 or 19200 bps

Installed device

31

Protection type

Phase failure line

Thermal protection motor

Thermal protection starter

Marking

CE

Type of cooling

Forced convection

Operating position

Vertical +/- 10 degree

Height

16.73 in (425 mm)

Width

8.11 in (206 mm)

Depth

11.77 in (299 mm)

Net Weight

72.75 lb(US) (33 kg)

Shock resistance

15 gn 11 ms EN/IEC 60068-2-27

Noise level

56 dB

Pollution degree

Level 2 IEC 60664-1

Relative humidity

0…95 % without condensation or dripping water

Ambient Air Temperature for Storage

-13…158 °F (-25…70 °C)



Information About ATS22C32S6U



The ATS22C32S6U is a soft starter designed for asynchronous motors, specifically belonging to the Altistart 22 series. It facilitates the operation of 3-phase asynchronous motors in supply line connections. With a rating of 320A, it supports motors ranging from 100HP to 300HP, with a rated voltage spanning from 208V to 575V AC.

Engineered for both simple and complex machinery, including centrifugal and piston pumps, fans, screw compressors, and material handling equipment, the ATS22C32S6U offers versatile application possibilities. Its slim form factor enhances adaptability, enabling mounting within frames of various machine types.

Featuring an integrated bypass, this soft starter mitigates noise levels and reduces heat dissipation during operation, ensuring optimal performance and longevity of connected machinery. Moreover, the compatibility with SoMove software facilitates seamless configuration and settings transfer, facilitating quick installation of spare units.

The primary function of the ATS22C32S6U is to provide smooth starting for machinery, minimizing mechanical stresses during startup and subsequently extending the service life of the equipment. This capability is particularly beneficial in industrial environments where frequent starts and stops can lead to premature wear and tear on mechanical components.

In addition to its performance-enhancing features, the ATS22C32S6U adheres to stringent technical specifications and standards. It offers protection against phase failure and thermal overload for both the motor and the starter unit. The device operates within a wide temperature range, from -13°F to 158°F (-25°C to 70°C), ensuring reliability in diverse environmental conditions.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
