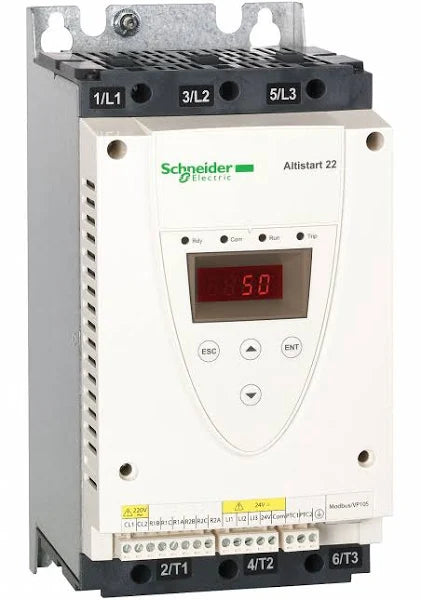

Part #: ATS22D32S6U Manufactured by: Schneider Electric

ATS22D32S6U | Schneider Electric | Motor Starter

Regular price
$1,773.00
Sale price
$1,773.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The ATS22D32S6U, part of the Altistart 22 Series, is a Motor Soft Starter designed for standard three-phase asynchronous i...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATS22D32S6U
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATS22D32S6U | Schneider Electric | Motor Starter
    ATS22D32S6U | Schneider Electric | Motor Starter
ATS22D32S6U | Schneider Electric | Motor Starter
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATS22D32S6U

Description / Specifications

Description

The ATS22D32S6U is a Motor Soft Starter from the Altistart 22 Series, designed for controlling standard three-phase asynchronous induction motors. It facilitates acceleration and deceleration control, focusing on motor torque rather than simple voltage or current-based methods. The soft starter incorporates advanced control algorithms to ensure smooth rotation throughout the starting ramp, minimizing mechanical instability at the end of the starting process.

Featuring a digital keypad display, the ATS22D32S6U enables easy setup and provides motor performance feedback. It supports controlled starting and stopping through voltage and torque modulation for three-phase squirrel cage asynchronous motors.





Technical Specifications



Specifications



Range of product

Altistart 22

Product or component type

Soft starter

Product destination

Asynchronous motors

Product specific application

Pumps and fans

Component name

ATS22

Network number of phases

3 phases

[Us] rated supply voltage

208...600 V - 15...10 %

Motor power hp

20 hp 460 V

Factory setting current

27 A

Power dissipation in W

44 W for standard applications

Utilisation category

AC-53A

Type of start

Start with torque control (current limited to 3.5 In)

IcL starter rating

32 A connection in the motor supply line for standard applications

IP degree of protection

IP20

Assembly style

With heat sink

Function available

Internal bypass

Supply voltage limits

177...660 V

Supply frequency

50...60 Hz - 10...10 %

Network frequency

45...66 Hz

Device connection

In the motor supply line

Control circuit voltage

110 V -15...10 % 50/60 Hz

Control circuit consumption

20 W

Discrete output number

2

Discrete output type

Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

Minimum switching current

100 mA 12 V DC relay outputs

Maximum switching current

5 A 250 V AC resistive 1 relay outputs

Discrete input number

3

Discrete input type

Logic LI1, LI2, LI3 5 mA 20 kOhm

Discrete input voltage

110 V <= 121 V

Discrete input logic

Positive logic LI1, LI2, LI3 < 20 V and <= 15 mA > 79 V <= 2 mA

Output current

0.4...1 Icl adjustable

PTC probe input

750 Ohm

Communication port protocol

Modbus

Connector type

1 RJ45

Communication data link

Serial

Physical interface

RS485 multidrop

Transmission rate

4800, 9600 or 19200 bps

Installed device

31

Protection type

Phase failure line

Marking

CE

Type of cooling

Forced convection

Operating position

Vertical +/- 10 degree

Height

265 mm

Width

130 mm

Depth

169 mm

Product weight

7 kg





Information About ATS22D32S6U



The ATS22D32S6U, part of the Altistart 22 series, is a Motor Soft Starter designed for the controlled acceleration and deceleration of standard three-phase asynchronous induction motors. This soft starter employs advanced control strategies, focusing on motor torque rather than conventional voltage or current-based control methods. The incorporation of sophisticated control algorithms ensures a smooth rotation during the starting ramp, effectively minimizing mechanical instability at the conclusion of the starting process.

Equipped with a digital keypad display, the ATS22D32S6U facilitates easy setup and provides real-time monitoring of motor performance. This soft starter supports controlled starting and stopping operations, managing voltage and torque aspects, specifically tailored for three-phase squirrel cage asynchronous motors.

The design of this unit prioritizes ruggedness, ensuring durability and reliability in various operational environments. Emphasizing the safety of personnel and equipment, the ATS22D32S6U complies with stringent performance requirements. The ease of setup is a key feature, addressing the need for straightforward configuration in diverse applications.

Featuring an integrated display terminal, users have the flexibility to modify programming and adjust or monitor parameters as needed. This adaptability allows for customization, aligning the application with specific customer requirements. The user-friendly interface provided by the digital keypad display enhances accessibility, making it convenient for operators to interact with the soft starter.

The ATS22D32S6U is specifically engineered to deliver precise control over the acceleration and deceleration phases of three-phase motors, contributing to efficient motor operation. By focusing on torque-based control and implementing advanced algorithms, this soft starter ensures a reliable and stable performance, meeting the demands of industrial applications where motor control precision is crucial.

With a wide operational voltage range of 208 to 600 VAC, this Motor Soft Starter is versatile, catering to diverse voltage requirements. Its 44 W power dissipation for standard applications underscores its energy-efficient design, contributing to operational efficiency.




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
