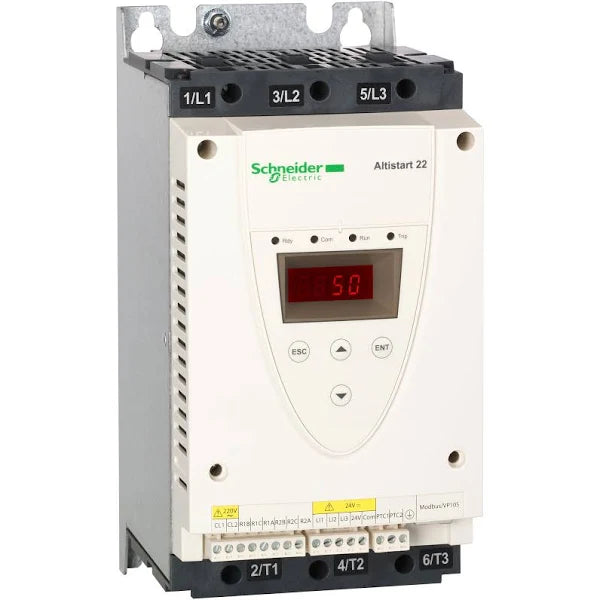

ATS22D47S6U | Schneider Electric Altistart 22 Soft Starter, 47A, 30–40HP, 208–600VAC, IP20
- Regular price
- $1,219.00
- Sale price
- $1,219.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ATS22D47S6U
Description
The Schneider Electric ATS22D47S6U is a 3-phase soft starter designed for controlled motor acceleration and deceleration across a 208–600VAC supply range. It provides a 47 A rating with an internal bypass contactor and configurable voltage ramping for smooth motor starting. This model includes an IP20 enclosure, 110VAC control voltage, and built-in Modbus capability for integration into industrial control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Drives |
| Part Number | ATS22D47S6U |
| Subcategory | Drive |
| Series | ATS22 |
| Motor Power | Up to 40 HP |
| Amperage Rating | 47 A |
| Voltage Rating | 208–600 VAC (3-Phase) |
| Control Voltage | 110 VAC |
| Type | Internal Bypass Soft Starter |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Enclosure Type | IP20 |
| Connection Type | Plug-In / Screw Terminals |
| Wattage | 48 W |
| Operating Temperature | –10°C to 40°C |
| Dimensions | 130 mm W × 169 mm D × 265 mm H |
| Mounting | Wall Mount |
| Communication | Modbus |
| Applications | Pumps, fans, compressors, material handling |
| Phase | 3-Phase |
Information About ATS22D47S6U
The ATS22D47S6U is part of the Altistart 22 series, developed as a compact soft-starter family for asynchronous motors requiring reliable torque and current management during startup. Its design uses a three-controlled-phase architecture with an integrated bypass to reduce heat generation and improve overall enclosure efficiency. The unit supports direct compatibility with common industrial voltages from 208 to 600VAC and integrates easily into wall-mounted motor control panels using standard screw connections. Typical usage includes pumps, fans, compressors, and material handling equipment, supported by technologies such as configurable thermal protection, Modbus communication, and software-based setup through SoMove.
Key Features:
- Three-phase soft start control: Regulates torque and voltage ramping across all supply phases.
- 47 A rating: Supports motors up to 40 HP depending on operating voltage.
- Wide voltage range: Operates on 208–600VAC, suitable for varied industrial power systems.
- Integrated bypass contactor: Reduces heat dissipation and minimizes electrical noise after startup.
- 110VAC control voltage: Standard interface for common low-voltage control circuits.
- Modbus communication: Enables monitoring, diagnostics, and remote parameter adjustments.
- Configurable motor protection: Includes built-in thermal protection and programmable current settings.
- Wall-mount design: Supports direct installation in control cabinets and machinery frames.
- Three-phase asynchronous motor support: Suitable for line-connected induction motors.
- SoMove software compatibility: Simplifies commissioning and replicating configuration profiles.
- IP20 enclosure: Designed for protected indoor environments with panel integration.
The ATS22D47S6U delivers the reliability and precision required for controlled motor starting in industrial applications.
