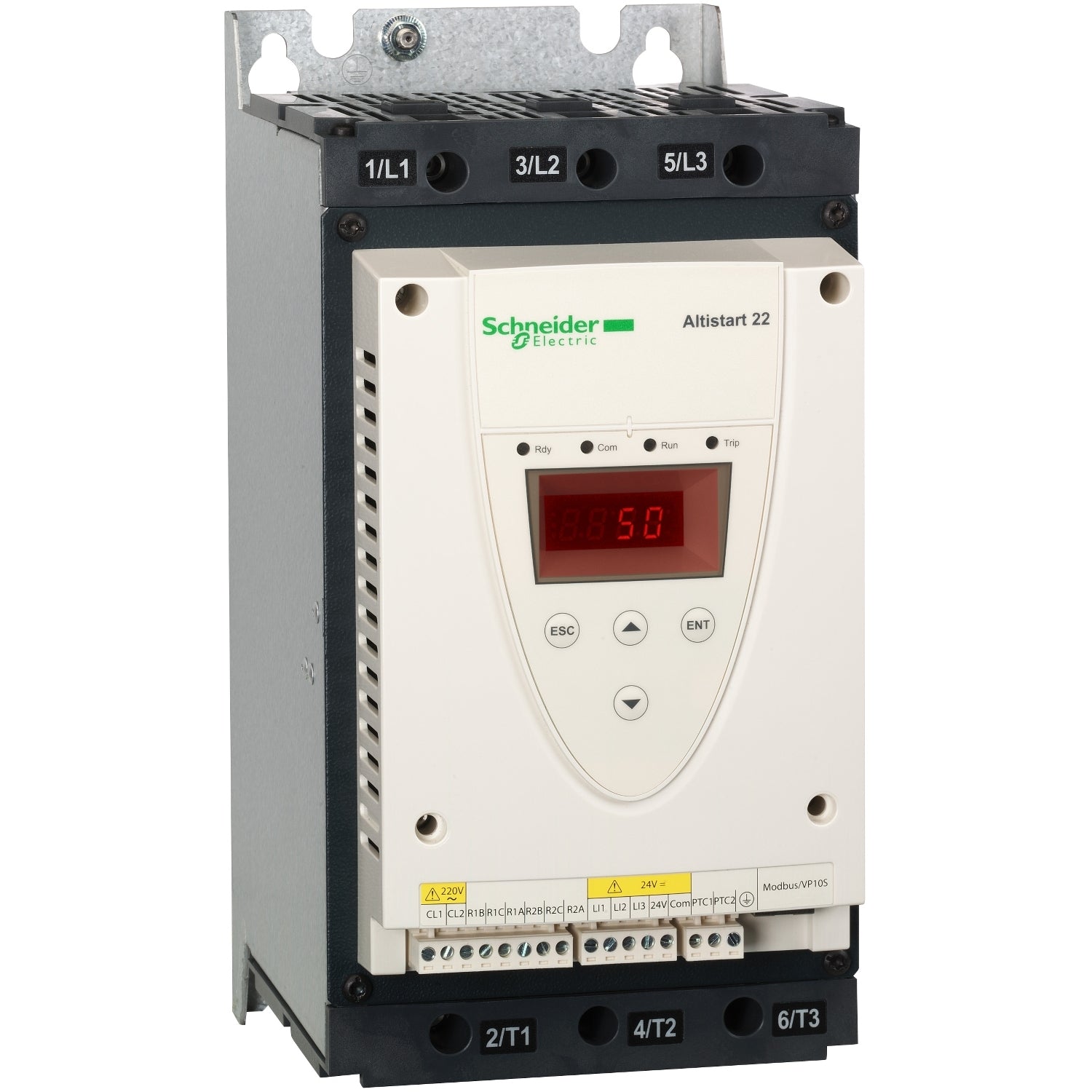

ATS22D75S6U | Schneider Electric Soft starter for asynchronous motor
- Regular price
- $3,212.00
- Sale price
- $3,212.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATS22D75S6U
Description
The ATS22D75S6U is a soft starter designed for asynchronous motors, belonging to the Altistart 22 series. It operates with a control voltage of 110V and a supply voltage range of 208V to 575V, suitable for motors with a power rating ranging from 20 to 60 horsepower (HP). This soft starter facilitates the supply line connection of 3-phase asynchronous motors.
With a current rating of 75A, the ATS22D75S6U is engineered for applications involving simple and complex machinery, including centrifugal and piston pumps, fans, screw compressors, and material handling equipment. Its slim form factor enhances versatility, enabling mounting in frames of various machine types.
Technical Specifications
|
Part # |
ATS22D75S6U |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
TELEMECANIQUE |
|
Category |
Drives |
|
Subcategory |
Soft Start |
|
POWER FACTOR |
POWER RATING MULTIPLIER -1 |
|
KW |
75 AMP |
|
SUPPLY VOLTAGE |
Three-phase power supply voltage 208-600 Vac, 50/60 Hz |
|
Range of Product |
Altistart 22 |
|
Product or Component Type |
Soft starter |
|
Product destination |
Asynchronous motors |
|
Product Specific Application |
Pumps and fans |
|
Component name |
ATS22 |
|
Phase |
3 phase |
|
[Us] rated supply voltage |
208...600 V - 15...10 % |
|
Factory setting current |
65 A |
|
Power dissipation in W |
63 W for standard applications |
|
Utilisation category |
AC-53A |
|
Type of start |
Start with torque control (current limited to 3.5 In) |
|
IcL starter rating |
75 A connection in the motor supply line for standard applications |
|
IP Degree of Protection |
IP20 |
|
Assembly style |
With heat sink |
|
Function Available |
Internal bypass |
|
Supply voltage limits |
177…660 V |
|
Supply frequency |
50...60 Hz - 10...10 % |
|
Network Frequency |
45...66 Hz |
|
Device connection |
In the motor supply line |
|
[Uc] control circuit voltage |
110 V - 15...10 % 50/60 Hz |
|
Control circuit consumption |
20 W |
|
Discrete output number |
2 |
|
Discrete input number |
3 |
|
Discrete input type |
LI1, LI2, LI3) logic, 5 mA 20 kOhm |
|
Discrete input voltage |
110 V <= 121 V |
|
Discrete input logic |
Positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA |
|
Output current |
0.4...1 Icl adjustable |
|
PTC probe input |
750 Ohm |
|
Communication port protocol |
Modbus |
|
Connector Type |
1 RJ45 |
|
Communication data link |
Serial |
|
Physical interface |
RS485 multidrop |
|
Transmission Rate |
4800, 9600 or 19200 bps |
|
Installed device |
31 |
|
Marking |
CE |
|
Type of cooling |
Forced convection |
|
Operating position |
Vertical +/- 10 degree |
|
Height |
11.61 in (295 mm) |
|
Width |
5.71 in (145 mm) |
|
Depth |
8.15 in (207 mm) |
|
Net Weight |
26.46 lb(US) (12 kg) |
|
Shock resistance |
15 gn 11 ms IEC 60068-2-27 |
|
Noise level |
45 dB |
|
Pollution degree |
Level 2 IEC 60664-1 |
|
Relative humidity |
0…95 % without condensation or dripping water IEC 60068-2-3 |
|
Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
Information About ATS22D75S6U
The ATS22D75S6U is a soft starter designed for 3-phase asynchronous motors in supply line connection. With a rating of 75A, it supports motors ranging from 20HP to 60HP, operating within a rated voltage range of 208V to 575V AC. Its application extends to various machines, including centrifugal and piston pumps, fans, screw compressors, and material handling equipment, both simple and complex.
Featuring a slim form factor, the ATS22D75S6U offers enhanced versatility by allowing mounting in frames of various machine types. It incorporates an Integrated bypass, effectively reducing noise levels and decreasing heat dissipation during operation, contributing to improved system efficiency and longevity.
The soft starter is compatible with SoMove software, facilitating easy configuration and settings transfer. This compatibility streamlines maintenance procedures, enabling quick installation of spare units and ensuring minimal downtime.
One of the primary benefits of the ATS22D75S6U is its ability to provide smooth starting for machinery, thereby mitigating mechanical stresses and extending the service life of connected equipment. This feature is particularly advantageous in applications where frequent starting and stopping of motors are involved, reducing wear and tear on mechanical components and minimizing the risk of equipment failure.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
