Product Description P/N: ATS22D88S6U
Description

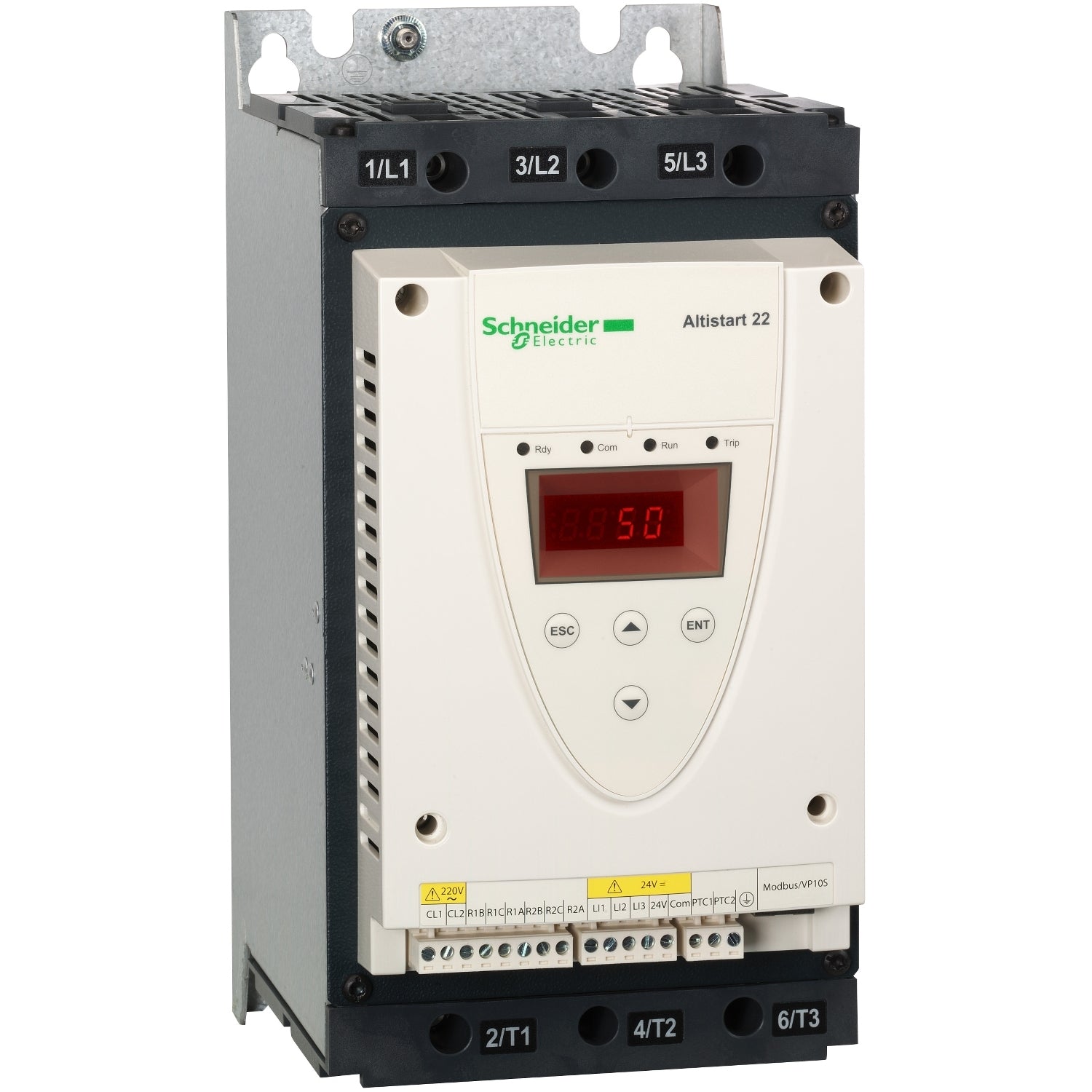

The Schneider Electric ATS22D88S6U is a heavy-duty Altistart 22 soft starter engineered for smooth and controlled acceleration of three-phase asynchronous motors. Designed to support motor voltages from 208 V to 600 V at power levels up to 75 HP, it limits inrush current and reduces mechanical stress during startup.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Contactors & Starters |
| Part Number | ATS22D88S6U |
| Subcategory | Starter |
| Family | Altistart 22 |
| Type | Soft Starter |
| Phase | 3-Phase |
| Current Rating | 88 A |
| Amperage (General) | 77 A |
| Horsepower Rating | Up to 75 HP |
| Supply Voltage | 208–600 V AC |
| Control Voltage | 110–115 V |
| Enclosure Type | IP20 / IP23 |
| Minimum Operating Temperature | –10 °C |
| Maximum Operating Temperature | 40 °C |
| Mounting Type | Panel mount |
| Terminal Type | Lugs |
| Overall Dimensions | 295 × 145 × 207 mm |
| Special Features | Embedded Modbus communication |
| Primary Application | Motor control for industrial machinery |
Information About ATS22D88S6U
The ATS22D88S6U is part of Schneider Electric’s Altistart 22 series, a line of soft starters designed to provide controlled, reliable starting performance for three-phase induction motors. With a rated current of 88 A and support for motor voltages ranging from 208 V to 600 V, this model is well suited for demanding loads such as pumps, compressors, fans, conveyors, and material-handling equipment. Its integrated bypass reduces thermal losses and noise once the motor reaches full speed, improving energy efficiency and extending equipment life. The unit supports configuration through SoMove software, enabling fast parameterization, simplified maintenance, and quick replacement when needed.
Key Features:
- 88 A soft-starting capability: enables smooth motor ramp-up for applications ranging from 25 HP to 75 HP, reducing electrical and mechanical stress.
- Wide voltage compatibility (208–600 V): supports global installation requirements and a broad range of industrial motor ratings.
- 110–115 V control voltage: integrates easily with standard industrial control circuits and automation panels.
- Built-in bypass contactor: minimizes heat dissipation, lowers noise, and improves system efficiency during steady-state motor operation.
- Embedded Modbus communication: allows seamless integration into supervisory and automation networks for monitoring and control.
- IP20/IP23 enclosure: offers reliable protection for indoor installations in industrial environments.
- Versatile panel-mount design: compact 295 × 145 × 207 mm footprint fits easily into existing control cabinets.
- Robust operation across temperatures: performs consistently from –10 °C to 40 °C for a wide range of industrial conditions.
The ATS22D88S6U delivers the reliability and precision required for controlled motor starting, equipment protection, and dependable performance across demanding industrial automation applications.
