ATS48C11Y | Schneider Electric Soft Starter For Asynchronous Motor
- Regular price
- $4,312.00
- Sale price
- $4,312.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

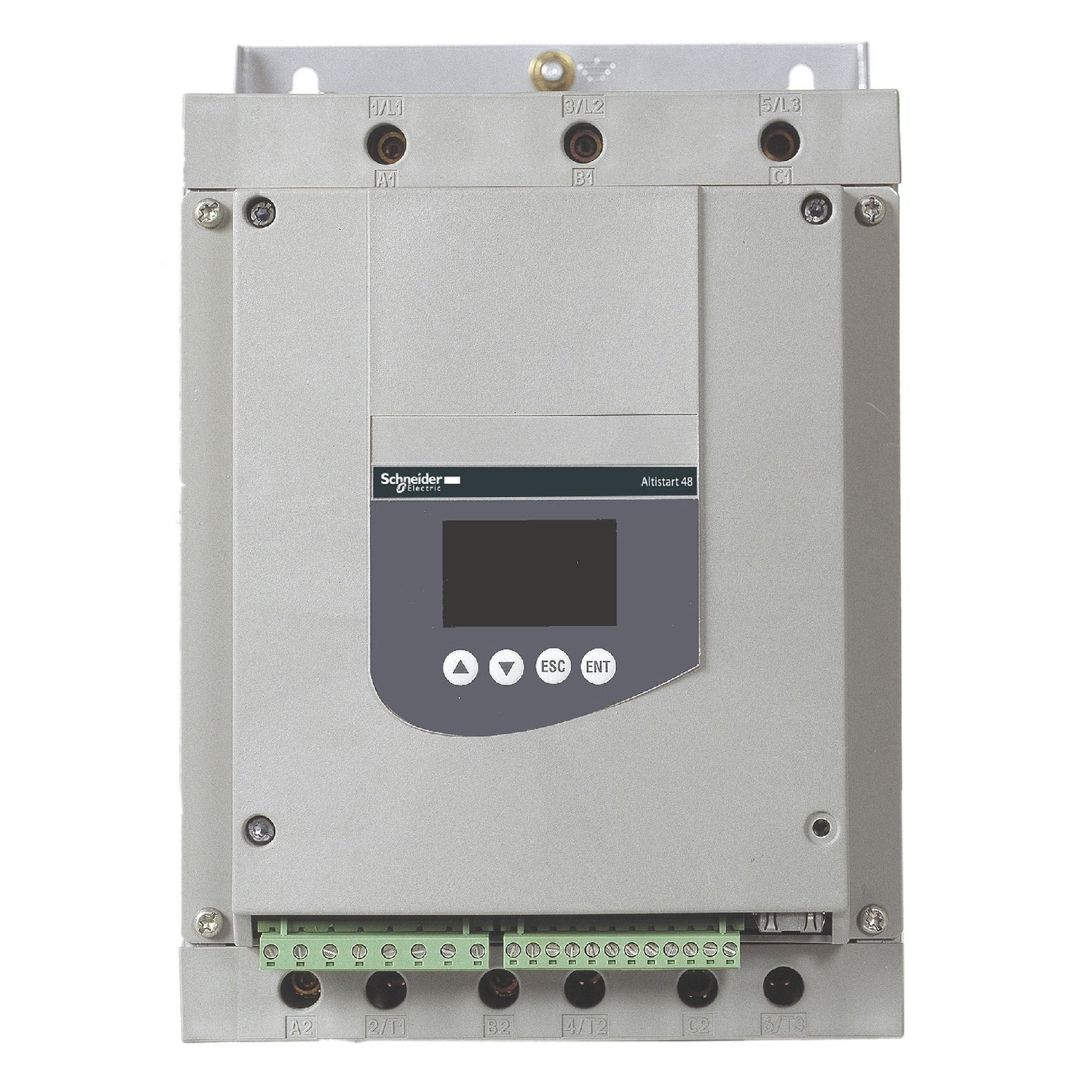

Product Description P/N: ATS48C11Y
Description
The ATS48C11Y is a soft starter unit belonging to the Altistart 48 series, designed for controlling three-phase asynchronous motors using 6 thyristors for torque-controlled soft starting and stopping. It facilitates soft starting and deceleration functions, in addition to offering machine and motor protection features and communication capabilities with control systems.
Operating within a rated supply voltage range of 208V to 690V AC, and with a maximum rating of up to 110A, the ATS48C11Y ensures efficient performance. Its torque control feature enables smooth starting without mechanical stress and precise control of hydraulic transitions, with a single acceleration ramp facilitating quick and easy adjustments, irrespective of the load.
This soft starter is suitable for motors with power ratings of up to 100hp (at 575V) / 90kW (at 690V) for standard applications, and 75hp (at 575V) / 75kW (at 690V) for severe applications. Weighing 8.3kg and with dimensions of 190mm wide, 290mm high, and 235mm deep, it is ideal for common applications in centrifugal machines, pumps, fans, compressors, and conveyors, prevalent in construction, food and beverage, and chemical industries.
Technical Specifications
|
Part # |
ATS48C11Y |
|
Manufacturer |
Schneider Electric |
|
Brand |
Telemecanique |
|
Category |
Drives |
|
Subcategory |
Soft Start |
|
Power Factor |
Power Rating Multiplier - 10 |
|
KW |
110 |
|
Product or component type |
Soft starter |
|
Product destination |
Asynchronous motors |
|
Product specific application |
Heavy duty industry and pumps |
|
Device short name |
ATS48 |
|
Utilisation category |
AC-53A |
|
Ue power supply voltage |
208...690 V - 15...10 % |
|
Power supply frequency |
50...60 Hz - 5...5 % Marking |
|
Discrete input number |
5 |
|
Discrete input type |
PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, <= 8 mA |
|
Discrete input logic |
Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA |
|
Minimum switching current |
10 mA at 6 V DC for relay outputs |
|
Discrete output number |
2 |
|
Analogue output type |
Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm |
|
Communication port protocol |
Modbus |
|
Connector type |
1 RJ45 |
|
Communication data link |
Serial |
|
Physical interface |
RS485 multidrop |
|
Transmission rate |
4800, 9600 or 19200 bps |
|
Function available |
External bypass (optional) |
|
Operating position |
Vertical +/- 10 degree |
|
Height |
290 mm |
|
Width |
190 mm |
|
Depth |
235 mm |
|
Net weight |
8.3 kg |
|
Relative humidity |
0…95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
|
Ambient air temperature for operation |
40…60 °C (with current derating of 2 % per °C) |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATS48C11Y
ATS48C11Y is a soft starter designed for asynchronous motors, specifically the Altistart 48 model, capable of handling up to 96A of current and operating within a voltage range of 208V to 690V, with power ratings ranging from 22kW to 90kW.
Functionally, it serves as a controller utilizing 6 thyristors for torque-controlled soft starting and stopping of three-phase asynchronous motors. It incorporates soft starting and deceleration features, as well as machine and motor protection mechanisms. Furthermore, it facilitates communication with control systems.
The Altistart 48 soft starter ensures smooth starting without mechanical stress and enables precise control of hydraulic transitions. Adjustment of parameters is straightforward due to a single acceleration ramp, facilitating quick setup regardless of the load.
With dimensions of 190mm in width, 290mm in height, and 235mm in depth, and a weight of 8.3kg, it is suitable for a variety of applications, including centrifugal machines, pumps, fans, compressors, and conveyors, commonly found in industries such as construction, food and beverage, and chemical processing.
This product complies with the IEC/EN 60947-4-2 standard and holds certifications including CE, UL, CSA, DNV, C-Tick, GOST, CCC, NOM, SEPRO, and TCF.
For connectivity, the Altistart 48 features an RJ45 connector port for direct Modbus bus connection. Additionally, it offers compatibility with Ethernet, Fipio, Profibus DP, and DeviceNet networks through separate modules (bridges or gateways).
Installation involves mounting the device vertically within a range of +/- 10° on a panel, facilitated by four fixing holes. Its Torque Control System (TCS) ensures controlled starting and deceleration, facilitating seamless integration into enclosures and control systems.
