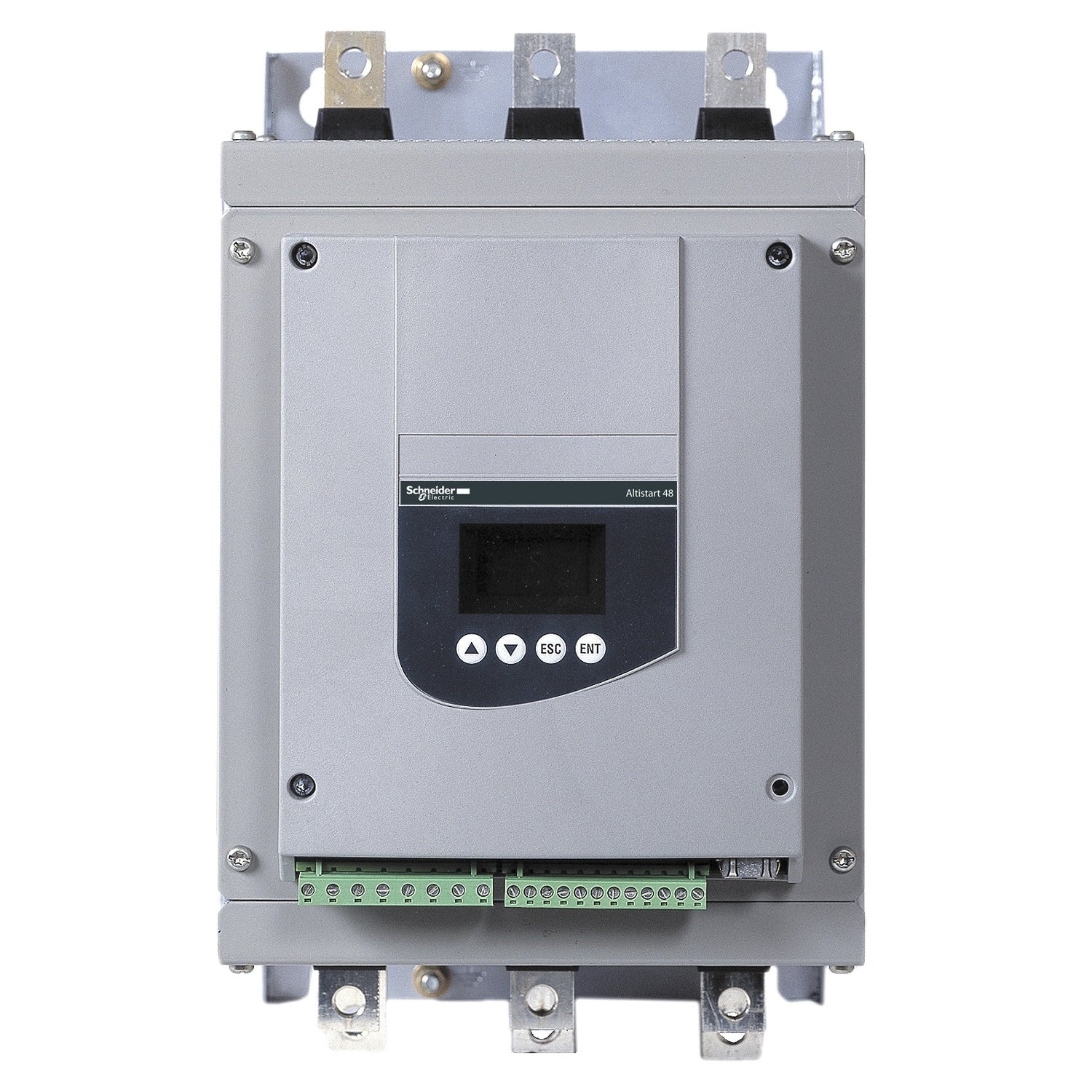

ATS48C14Y | Schneider Electric Soft Starter For Asynchronous Motor, Altistart 48, 124A, 208..690V, 30..110kW
- Regular price
- $2,734.00
- Sale price
- $2,734.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATS48C14Y
Description
The ATS48C14Y soft starter, part of the Altistart 48 range, is an advanced solution for the controlled starting and stopping of asynchronous motors. Engineered by Yaskawa, a renowned manufacturer in the field of industrial automation, this soft starter is designed to meet the demands of heavy-duty industries and pump applications.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATS48C14Y |
| Category | Drives |
| Subcategory | Soft Start |
| Control Voltage | 110 to 230 V |
| Current Rating | 124 A |
| Enclosure Type | IP00 |
| Horsepower Rating | 75 HP |
| Maximum Operating Temperature | 40 °C |
| Minimum Operating Temperature | -10 °C |
| Mounting Type | Panel Mount |
| Overall Dimensions | 340 x 200 x 265 mm |
| Phase | 3 Phase |
| Power Rating | 110 kW W |
| Primary Type | Soft Start |
| Series | Altistart ATS 48 Series |
| Special Features | External Bypass |
| Standards | C-Tick, CCC, CSA, DNV, EN?/IEC 60947-4-2, GOST, NOM 117, SEPRO, TCF, UL |
| Supply Voltage | 208 to 690 V V |
| Type | Soft Start |
Information About ATS48C14Y
This Altistart 48 soft start/soft stop unit is a controller with 6 thyristors used for torque-controlled soft starting and stopping of three-phase asynchronous motors. It offers soft starting and deceleration functions along with machine and motor protection functions, as well as functions for communicating with control systems. It works at a rated supply voltage from 208V to 690V AC and up to 140A rating. Altistart 48 torque control enables starting without mechanical stress and smooth control of hydraulic transitions, with a single acceleration ramp making adjustments is quick and easy, whatever the load. It is suitable for motors with power rating up to 125hp (at 575V) / 110kW (at 690V) for standards applications and 100hp (at 575V) / 90kW (at 690V) for severe applications. It weighs 12.4kg and its dimensions are, 200mm wide, 340mm high, 265mm deep. It is designed for use in the most common applications for centrifugal machines, pumps, fans, compressors and conveyors, which are primarily to be found in the construction, food and beverage and chemical industries. It complies with IEC/EN 60947-4-2 standard and is certified CE, UL, CSA, DNV, C-Tick, GOST, CCC, NOM, SEPRO, and TCF. The Altistart 48 is connected directly to the Modbus bus via its RJ45 connector port, It can also be connected to Ethernet, Fipio, Profibus DP and DeviceNet networks via a module (bridge or gateway) to order separately. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. Altistart 48 delivers high performance with its Torque Control System (TCS) for controlled starting and deceleration, an easy integration in enclosures and control systems. This range provides also continual improvement of your machine operation by reducing mechanical or hydraulic stress and limiting energy loss and temperature rise, plus more.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
