ATV12H075M2 | Schneider Electric Variable speed drive

Description

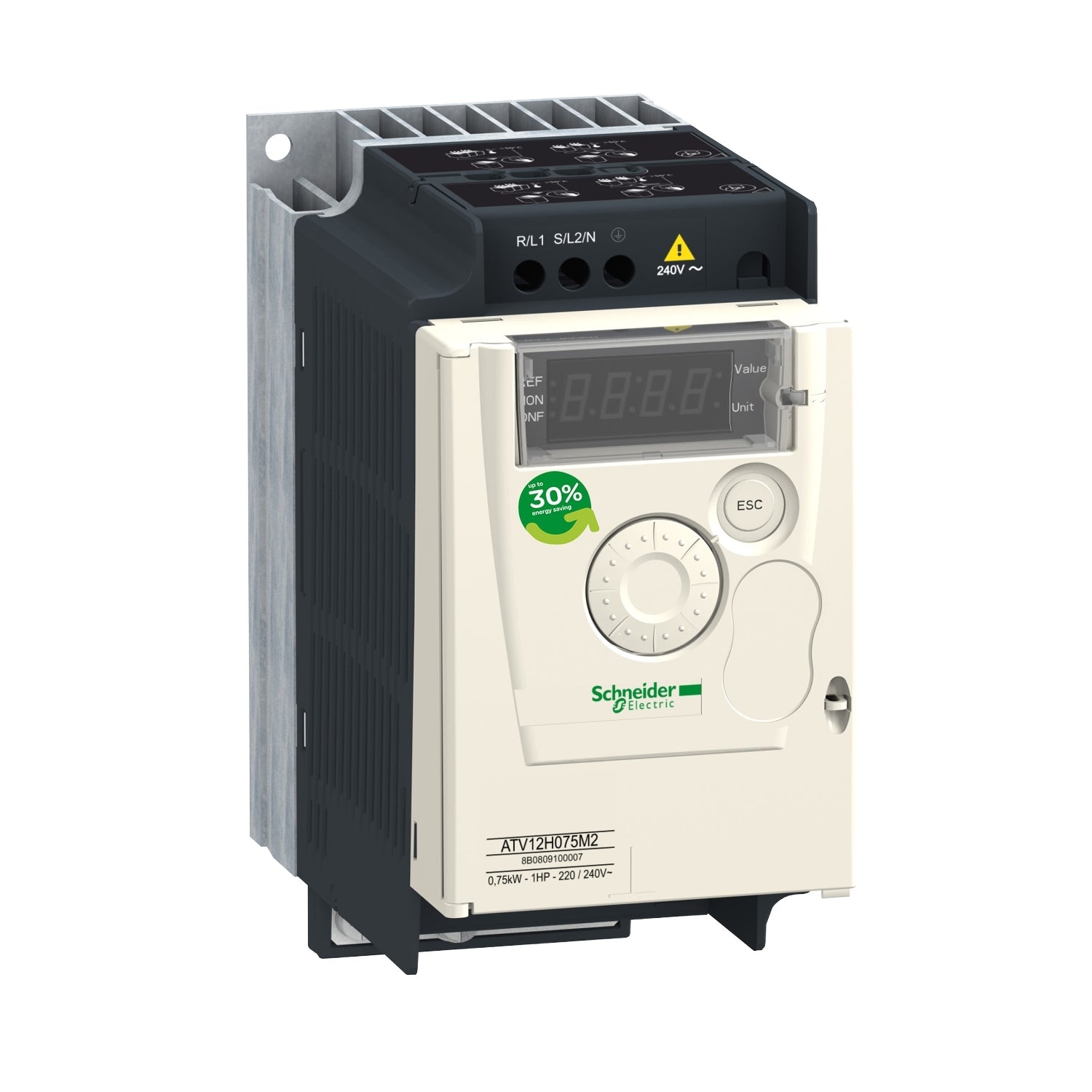

The ATV12H075M2 is a variable speed drive belonging to the Altivar Machine ATV12 series. It operates at a rated power of 0.75 kW / 1 hp and a rated voltage ranging from 200V to 240V AC. Equipped with a heatsink for standard environments and a fan-cooled enclosure, it offers efficient heat dissipation. This drive incorporates advanced PID and catch on the fly functions, facilitating precise motor control. Its basic cabling and easy motor control settings enhance usability.

Available in different configurations, including options without heatsink, with an embedded EMC filter, or as a standard version, the ATV12H075M2 caters to diverse application needs. It comes standard with the Modbus communication protocol, ensuring seamless integration into various systems.

Technical Specifications

Information About ATV12H075M2

The ATV12H075M2, belonging to the Altivar 12 series of variable speed drives, is designed to cater to commercial equipment and simple machines. Operating at a rated power of up to 0.75 kW or 1 hp, and a rated voltage ranging from 200V to 240V AC, this drive is suitable for various applications. It comes equipped with a heatsink for standard environments and features a fan-cooled enclosure for efficient heat dissipation.

With advanced PID and catch on the fly functions, as well as basic cabling and easy motor control settings, the ATV12H075M2 offers enhanced control capabilities. Depending on specific requirements, it can be provided without a heatsink, with an embedded EMC filter, or in a standard configuration.

The Altivar 12 drive incorporates the Modbus communication protocol as a standard feature, facilitating seamless integration into different systems. It is designed for simple applications across industries, including industrial, commercial, and HVAC sectors, encompassing equipment such as conveyors, pumps, extractors, access barriers, and treadmills. Compliance with IEC, UL, and other international standards ensures reliability and safety.

SoMove software compatibility enables configuration saving and transferring to spare drives, reducing maintenance downtime and enhancing operational efficiency. Additionally, the ATV12H075M2 optimizes power and torque application for ventilation and pumping applications, leading to potential energy savings of up to 30%.
