Part #: ATV12H075M3 Manufactured by: Schneider Electric
Regular price
$319.00
Sale price
$319.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The ATV12H075M3, a member of the Altivar 12 series, is a variable speed drive designed for use in commercial equipment an...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: ATV12H075M3
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: ATV12H075M3

Description / Specifications

Description

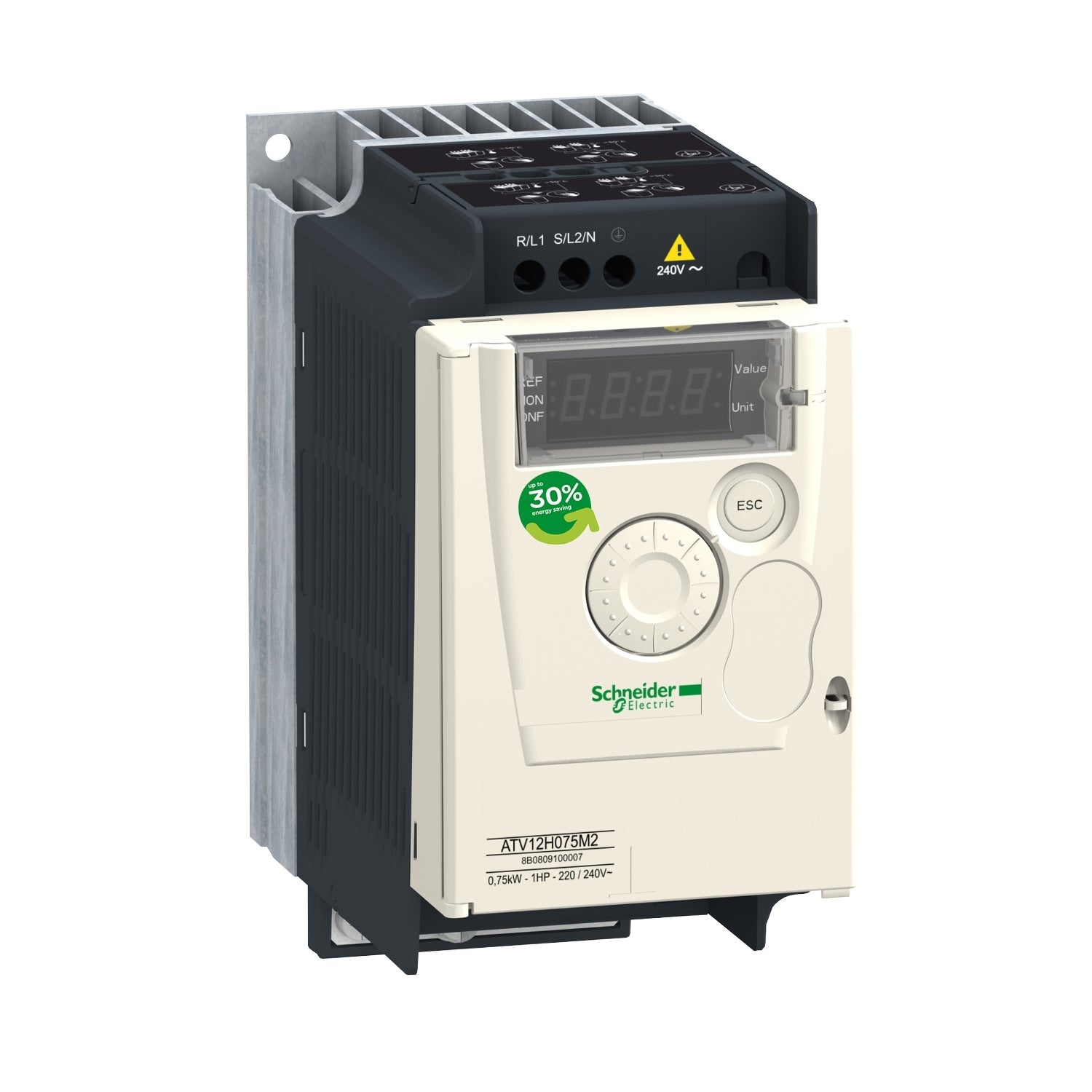

The ATV12H075M3 is a variable speed drive from the Altivar 12 series, known as Altivar Machine ATV12, specifically tailored for commercial equipment and simple machines. Operating with a rated power of up to 0.75kW / 1hp and a rated voltage ranging from 200V to 240V AC, this drive is designed with a heatsink suitable for normal environments and a fan-cooled enclosure.

Equipped with advanced PID and catch on the fly functions, along with basic cabling and easy motor control settings, the ATV12H075M3 offers versatility in configuration. It can be provided without a heatsink, with an embedded EMC filter, or as a standard version, depending on specific requirements.


Technical Specifications

Part #

ATV12H075M3

Manufacturer

SCHNEIDER ELECTRIC

Category

Drives

Subcategory

Drive

Range of Product

Altivar 12

Product or Component Type

Variable speed drive

Product Specific Application

Simple machine

Mounting Mode

Cabinet mount

Communication Port Protocol

Modbus

Supply Frequency

50/60 Hz +/- 5%

[Us] Rated Supply Voltage

200...240 V - 15...10%

Nominal Output Current

4.2 A

Maximum Horsepower Rating

1 hp

Motor Power kW

0.75 kW

EMC Filter

Without EMC filter

IP Degree of Protection

IP20

Physical Interface

2-wire RS 485

Connector Type

1 RJ45

Continuous Output Current

4.2 A (4 kHz)

Method of Access

Server Modbus serial

Speed Drive Output Frequency

0.5…400 Hz

Speed Range

1…20

Linearity Error

+/- 0.3% of maximum value analogue input

Frequency Resolution

Analog input converter A/D, 10 bits

Display Unit

0.1 Hz

Time Constant

20 ms +/- 1 ms for reference change

Transmission Frame

RTU

Number of Addresses

1…247

Data Format

8 bits, configurable odd, even or no parity

Maximum Output Frequency

4 kHz

Transient Overtorque

150…170% of nominal motor torque depending on drive rating and type of motor

Nominal Switching Frequency

4 kHz

Braking to Standstill

By DC injection

Brake Chopper Integrated

False

False Maximum Input Current per Phase

5.3 A

Maximum Output Voltage

240 V

Apparent Power

2.2 kVA (240 V heavy duty)

Network Frequency

50-60 Hz

Relative Symmetric Network Frequency Tolerance

5%

Prospective Line Isc

5 kA

Base Load Current at High Overload

4.2 A

Power Dissipation in W

Natural 41.0 W

Tightening Torque

7.08 lbf.in (0.8 N.m)

Insulation

Electrical between power and control

Quantity per Set

Set of 1

Maximum Acceleration under Shock Impact

150 m/s² at 11 ms

Maximum Acceleration under Vibrational Stress

10 m/s² at 13...200 Hz

Maximum Deflection under Vibratory Load

1.5 mm at 2...13 Hz

Overvoltage Category

Class III

Regulation Loop

Adjustable PID regulator

Noise Level

0 dB

Pollution Degree

2

Ambient Air Transport Temperature

-13…158°F (-25…70°C)

Ambient Air Temperature for Operation

14…104°F (-10…40°C) without derating

Ambient Air Temperature for Storage

-13…158°F (-25…70°C)





Information About ATV12H075M3


The ATV12H075M3, belonging to the Altivar 12 series, is a variable speed drive offered by Altivar Machine ATV12 for commercial equipment and simple machines. Operating within a rated power range of up to 0.75kW / 1hp and a rated voltage spanning from 200V to 240V AC, this drive is engineered with a heatsink suitable for normal environmental conditions and a fan-cooled enclosure.

Equipped with advanced PID and catch on the fly functions, along with basic cabling and easy motor control settings, the ATV12H075M3 offers adaptability to various application requirements. Depending on specific needs, it can be supplied with or without a heatsink, with an embedded EMC filter, or in a standard version.

As a standard feature, the Altivar 12 drive integrates the Modbus communication protocol, enhancing connectivity and control capabilities. Tailored for simple applications across industries, including industrial, commercial machines, and HVAC equipment such as conveyors, pumps, extractors, access barriers, and treadmills, it complies with IEC, UL, and other international standards, ensuring compliance and safety.
