ATV212HD15N4 | Schneider Electric | Variable speed drive
ATV212HD15N4 | Schneider Electric | Variable speed drive

ATV212HD15N4 | Schneider Electric | Variable speed drive

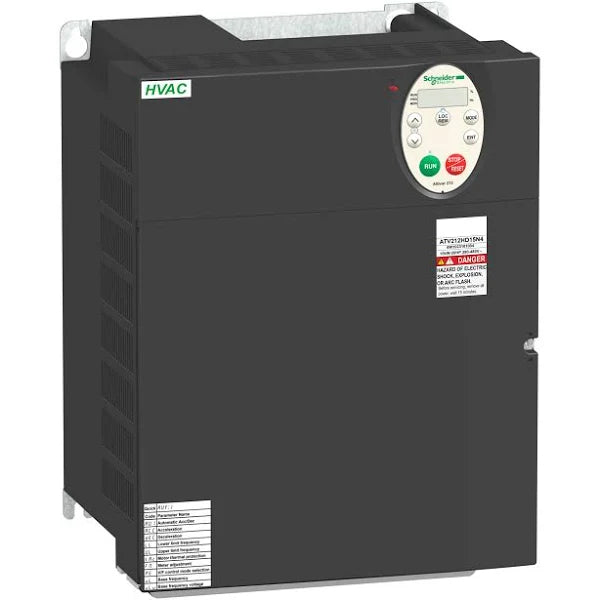

Part #: ATV212HD15N4 Manufactured by: Schneider Electric
Regular price
$942.00
Sale price
$942.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The Altivar 212 is a variable speed drive engineered to power 3-phase asynchronous motors. Featuring an IP21 protection in...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: ATV212HD15N4
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV212HD15N4 | Schneider Electric | Variable speed drive
    ATV212HD15N4 | Schneider Electric | Variable speed drive
ATV212HD15N4 | Schneider Electric | Variable speed drive

Product Description P/N: ATV212HD15N4

Description / Specifications

Description

The Altivar 212 variable speed drive is engineered to power 3-phase asynchronous motors, offering efficient control for fluid management applications in tertiary sector buildings (HVAC). Featuring a protection index of IP21 and a built-in EMC filter, this drive operates within a rated power range of 15kW / 20hp and a rated voltage from 380V to 480V AC.

Designed for eco-energy optimization, the Altivar 212 drive boasts up to 70% reduction in energy consumption compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate, disturbance-free operation, eliminating the need for additional options like line choke or DC choke to handle current harmonics.





Technical Specifications





Device short name

ATV212

Product destination

Asynchronous motors

Network number of phases

3 phases

Motor power kW

15 kW

Motor power hp

20 hp

Supply voltage limits

323…528 V

Supply frequency

50...60 Hz - 5...5 %

Line current

22.8 A at 480 V; 28.5 A at 380 V

Range of product

Altivar 212

Product or component type

Variable speed drive

Product specific application

Pumps and fans in HVAC

Rated supply voltage

380...480 V - 15...10 %

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP21

Apparent power

23.2 kVA at 380 V

Continuous output current

30.5 A at 380 V; 30.5 A at 460 V

Maximum transient current

33.6 A for 60 s

Speed drive output frequency

0.5…200 Hz

Speed range

1…10

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Local signaling

1 LED (red) for DC bus energized

Output voltage

<= power supply voltage

Isolation

Electrical between power and control

Electrical connection

VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14 L1/R, L2/S, L3/T: terminal 25 mm² / AWG 3

Tightening torque

0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES); 4.5 N.m, 40 lb.in (L1/R, L2/S, L3/T)

Supply

Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection; Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection

Option card

Communication card for LonWorks

Power dissipation in W

625 W

Air flow

206 m3/h

Functionality

Mid

Specific application

HVAC

Motor starter type

Variable speed drive

Discrete output number

2

Analog input number

2

Analog output number

1

Physical interface

2-wire RS 485

Connector type

1 open style; 1 RJ45

Transmission rate

9600 bps or 19200 bps

Transmission frame

RTU

Number of addresses

1…247

Data format

8 bits, 1 stop, odd even or no configurable parity

Type of polarization

No impedance

Torque accuracy

+/- 15 %

Transient overtorque

120 % of nominal motor torque +/- 10 % for 60 s

Acceleration and deceleration ramps

Linear adjustable separately from 0.01 to 3200 s; Automatic based on the load

Motor slip compensation

Automatic whatever the load

Adjustability

Adjustable

Switching frequency

6...16 kHz adjustable; 12...16 kHz with derating factor

Nominal switching frequency

12 kHz

Braking to standstill

By DC injection

Network frequency

47.5...63 Hz

Prospective line Isc

22 kA

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Environmental characteristic

Classes 3C1 conforming to IEC 60721-3-3; Classes 3S2 conforming to IEC 60721-3-3

Noise level

54 dB conforming to 86/188/EEC

Operating altitude

1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m; <= 1000 m without derating

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3; 5…95 % without dripping water conforming to IEC 60068-2-3

Ambient air temperature for operation

-10…40 °C (without derating); 40…50 °C (with derating factor)

Operating position

Vertical +/- 10 degree

Regulation loop

Adjustable PI regulator

Ambient air temperature for storage

-25…70 °C





Information About ATV212HD15N4



The Altivar 212 is a variable speed drive designed to power 3-phase asynchronous motors. Featuring an IP21 protection index and a built-in EMC filter, it operates at a rated power of up to 15 kW (20 hp) and a rated voltage ranging from 380V to 480V AC.

Engineered for eco-energy efficiency, the Altivar 212 boasts a remarkable reduction in energy consumption of up to 70% compared to conventional control systems. Its innovative cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional components like line chokes or DC chokes to manage current harmonics.

With a weight of 11.65 kg and dimensions measuring 245mm in width, 330mm in height, and 190mm in depth, the Altivar 212 is optimized for fluid management applications in tertiary sector buildings, particularly in HVAC systems such as heating, ventilation, air conditioning, and pumping.

Compliant with international standards including IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the Altivar 212 also holds certifications such as CE, UL, CSA, C-Tick, and NOM.

For enhanced motor performance, optional motor chokes are available, allowing for increased maximum cable lengths between the drive and the motor while mitigating disturbances at the motor terminals.

Installation is simplified with the Altivar 212's design, featuring four fixing holes for mounting in a vertical position (+/- 10 °) on a panel. Moreover, its compatibility with various building management systems is facilitated by its integration of standard communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Altivar 212 variable speed drive is engineered to power 3-phase asynchronous motors, offering efficient control for fluid management applications in tertiary sector buildings (HVAC). Featuring a protection index of IP21 and a built-in EMC filter, this drive operates within a rated power range of 15kW / 20hp and a rated voltage from 380V to 480V AC.

Designed for eco-energy optimization, the Altivar 212 drive boasts up to 70% reduction in energy consumption compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate, disturbance-free operation, eliminating the need for additional options like line choke or DC choke to handle current harmonics.





Technical Specifications





Device short name

ATV212

Product destination

Asynchronous motors

Network number of phases

3 phases

Motor power kW

15 kW

Motor power hp

20 hp

Supply voltage limits

323…528 V

Supply frequency

50...60 Hz - 5...5 %

Line current

22.8 A at 480 V; 28.5 A at 380 V

Range of product

Altivar 212

Product or component type

Variable speed drive

Product specific application

Pumps and fans in HVAC

Rated supply voltage

380...480 V - 15...10 %

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP21

Apparent power

23.2 kVA at 380 V

Continuous output current

30.5 A at 380 V; 30.5 A at 460 V

Maximum transient current

33.6 A for 60 s

Speed drive output frequency

0.5…200 Hz

Speed range

1…10

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Local signaling

1 LED (red) for DC bus energized

Output voltage

<= power supply voltage

Isolation

Electrical between power and control

Electrical connection

VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14 L1/R, L2/S, L3/T: terminal 25 mm² / AWG 3

Tightening torque

0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES); 4.5 N.m, 40 lb.in (L1/R, L2/S, L3/T)

Supply

Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection; Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection

Option card

Communication card for LonWorks

Power dissipation in W

625 W

Air flow

206 m3/h

Functionality

Mid

Specific application

HVAC

Motor starter type

Variable speed drive

Discrete output number

2

Analog input number

2

Analog output number

1

Physical interface

2-wire RS 485

Connector type

1 open style; 1 RJ45

Transmission rate

9600 bps or 19200 bps

Transmission frame

RTU

Number of addresses

1…247

Data format

8 bits, 1 stop, odd even or no configurable parity

Type of polarization

No impedance

Torque accuracy

+/- 15 %

Transient overtorque

120 % of nominal motor torque +/- 10 % for 60 s

Acceleration and deceleration ramps

Linear adjustable separately from 0.01 to 3200 s; Automatic based on the load

Motor slip compensation

Automatic whatever the load

Adjustability

Adjustable

Switching frequency

6...16 kHz adjustable; 12...16 kHz with derating factor

Nominal switching frequency

12 kHz

Braking to standstill

By DC injection

Network frequency

47.5...63 Hz

Prospective line Isc

22 kA

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Environmental characteristic

Classes 3C1 conforming to IEC 60721-3-3; Classes 3S2 conforming to IEC 60721-3-3

Noise level

54 dB conforming to 86/188/EEC

Operating altitude

1000...3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m; <= 1000 m without derating

Relative humidity

5…95 % without condensation conforming to IEC 60068-2-3; 5…95 % without dripping water conforming to IEC 60068-2-3

Ambient air temperature for operation

-10…40 °C (without derating); 40…50 °C (with derating factor)

Operating position

Vertical +/- 10 degree

Regulation loop

Adjustable PI regulator

Ambient air temperature for storage

-25…70 °C





Information About ATV212HD15N4



The Altivar 212 is a variable speed drive designed to power 3-phase asynchronous motors. Featuring an IP21 protection index and a built-in EMC filter, it operates at a rated power of up to 15 kW (20 hp) and a rated voltage ranging from 380V to 480V AC.

Engineered for eco-energy efficiency, the Altivar 212 boasts a remarkable reduction in energy consumption of up to 70% compared to conventional control systems. Its innovative cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional components like line chokes or DC chokes to manage current harmonics.

With a weight of 11.65 kg and dimensions measuring 245mm in width, 330mm in height, and 190mm in depth, the Altivar 212 is optimized for fluid management applications in tertiary sector buildings, particularly in HVAC systems such as heating, ventilation, air conditioning, and pumping.

Compliant with international standards including IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the Altivar 212 also holds certifications such as CE, UL, CSA, C-Tick, and NOM.

For enhanced motor performance, optional motor chokes are available, allowing for increased maximum cable lengths between the drive and the motor while mitigating disturbances at the motor terminals.

Installation is simplified with the Altivar 212's design, featuring four fixing holes for mounting in a vertical position (+/- 10 °) on a panel. Moreover, its compatibility with various building management systems is facilitated by its integration of standard communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
