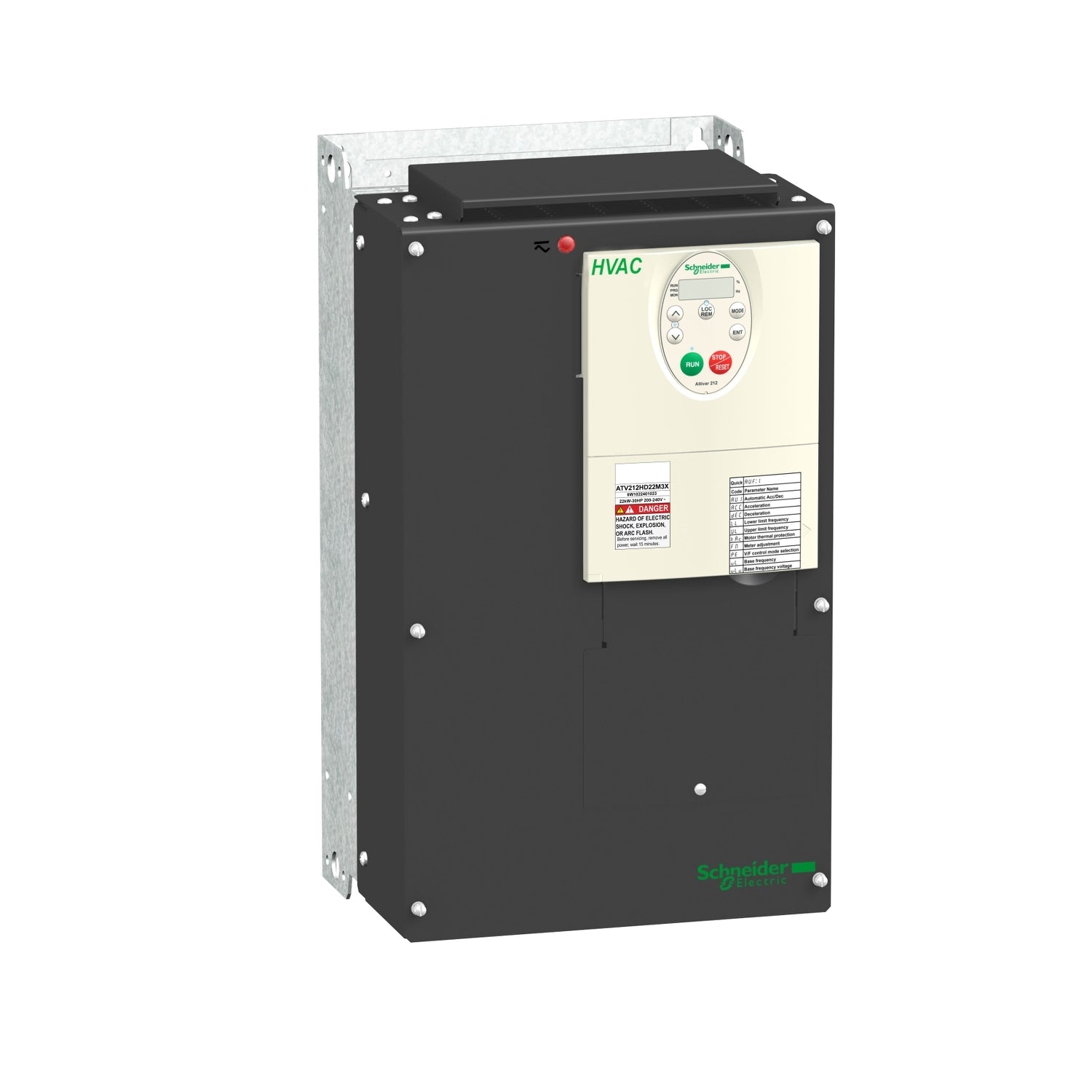

ATV212HD22N4 | Schneider Electric Variable speed drive
- Regular price
- $1,857.00
- Sale price
- $1,857.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV212HD22N4
Description
The ATV212HD22N4 is a variable speed drive from the Altivar 212 series, designed for 3-phase asynchronous motors. Featuring a protection index of IP21 and built-in EMC filter, it ensures reliable operation. With a rated power of 22kW / 30hp and rated voltage range from 380V to 480V AC, it offers efficient performance.
This drive incorporates eco-energy design, reducing energy consumption by up to 70% compared to conventional systems. Utilizing cable temperature rise reduction technology, it ensures immediate and disturbance-free operation without the need for additional options such as a line choke or DC choke for current harmonics.
Technical Specifications
|
Part # |
ATV212HD22N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Device short name |
|
Product destination |
Asynchronous motors |
|
Phase |
3 phase |
|
Motor power kW |
22 kW |
|
Maximum Horse Power Rating |
30 hp |
|
Supply voltage limits |
323…528 V |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Line current |
33.1 A 480 V |
|
|
41.6 A 380 V |
|
Range of Product |
Altivar 212 |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP21 |
|
Apparent power |
33.2 kVA 380 V |
|
Continuous output current |
43.5 A 380 V |
|
Maximum transient current |
47.9 A 60 s |
|
Speed drive output frequency |
0.5…200 Hz |
|
Speed range |
1…10 |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Local signalling |
For DC bus energized 1 LED (red) |
|
Output voltage |
<= power supply voltage |
|
Isolation |
Electrical between power and control Option card |
|
Communication card |
LonWorks |
|
Power dissipation in W |
626 W |
|
Air flow |
56533.83 Gal/hr(US) (214 m3/h) |
|
Functionality |
Mid |
|
Specific application |
HVAC |
|
Motor starter type |
Variable speed drive |
|
Discrete output number |
2 |
|
Analogue input number |
2 |
|
Transmission Rate |
9600 bps or 19200 bps |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, 1 stop, odd even or no configurable parity |
|
Type of polarization |
No impedance |
|
Torque accuracy |
+/- 15 % |
|
Transient overtorque |
120 % of nominal motor torque +/- 10 % 60 s |
|
Nominal switching frequency |
8 kHz |
|
Braking to standstill |
By DC injection |
|
Network Frequency |
47.5...63 Hz |
|
Prospective line Isc |
22 kA |
|
Regulation loop |
Adjustable PI regulator |
|
Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
Information About ATV212HD22N4
The ATV212HD22N4 is a variable speed drive from the Altivar 212 series, designed for feeding 3-phase asynchronous motors. Featuring a protection index of IP21 and a built-in EMC filter, this drive operates at a rated power of up to 22kW / 30hp and a rated voltage ranging from 380V to 480V AC.
Built on eco-energy principles, the ATV212 drive offers a substantial reduction in energy consumption, up to 70% compared to conventional control systems. Its innovative cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional options such as line chokes or DC chokes to address current harmonics.
With dimensions of 240mm wide, 420mm high, and 214mm deep, and weighing 26.4kg, this drive is specifically engineered for fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping.
The ATV212 complies with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions. Additionally, it holds certifications such as CE, UL, CSA, C-Tick, and NOM.
For added flexibility, optional motor chokes are available, which can increase the maximum cable lengths between the drive and the motor while limiting disturbances at the motor terminals.
