ATV212HD30N4 | Schneider Electric Variable speed drive
- Regular price
- $1,659.00
- Sale price
- $1,659.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

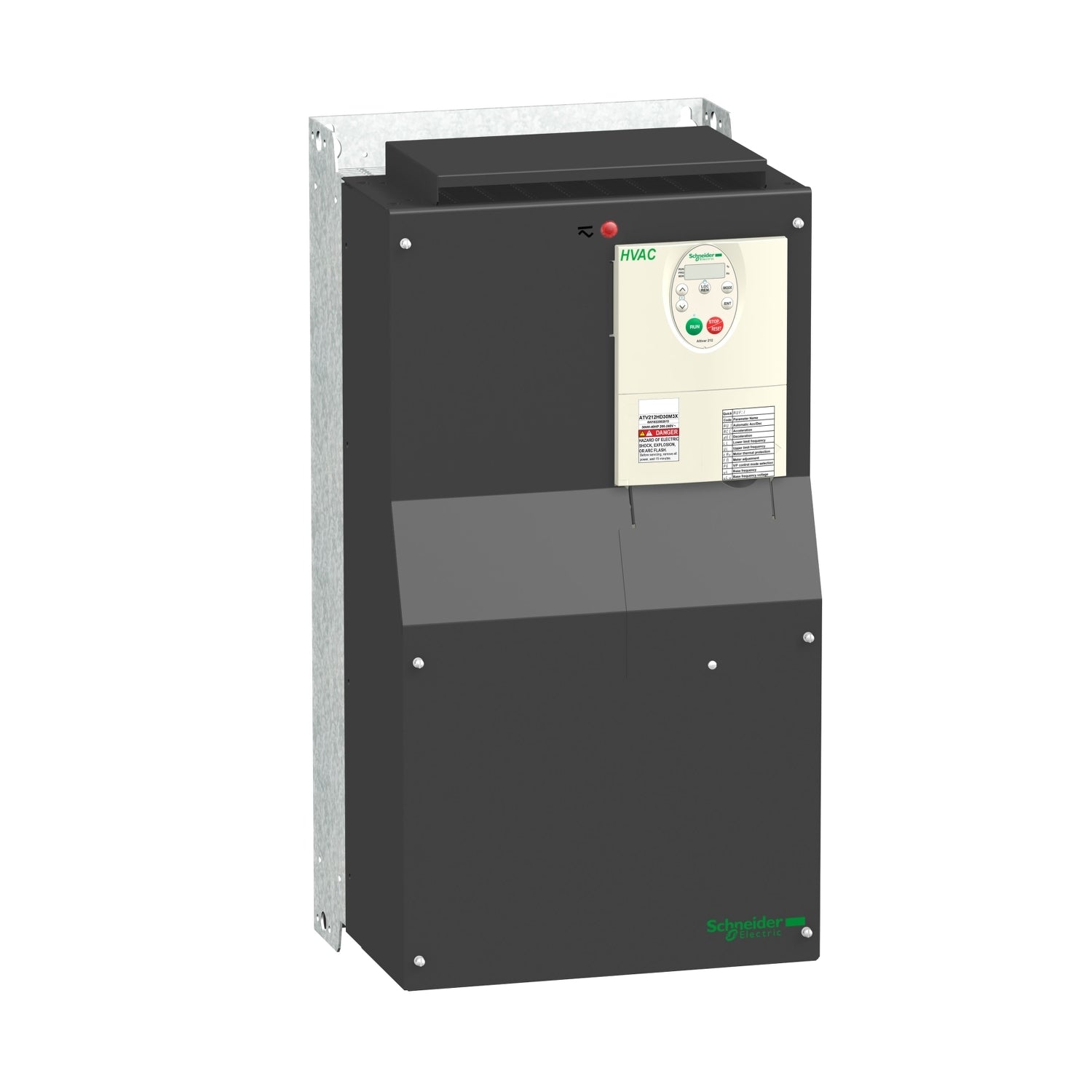

Product Description P/N: ATV212HD30N4
Description
The ATV212HD30N4 is a variable speed drive, part of the Altivar 212 series, designed for feeding 3-phase asynchronous motors. Featuring a protection index of IP21 and a built-in EMC filter, it operates within a rated power range of up to 30kW / 40hp and a rated voltage of 380V to 480V AC.
This drive is engineered with eco-energy principles, offering up to 70% reduction in energy consumption compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional options such as line or DC chokes to manage current harmonics.
Weighing 26.4kg and with dimensions of 240mm wide, 420mm high, and 214mm deep, the ATV212HD30N4 is specifically tailored for common fluid management applications in tertiary sector buildings, including heating, ventilation, air conditioning, and pumping.
Technical Specifications
|
Part # |
ATV212HD30N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
Device short name |
ATV212 |
|
Product destination |
Asynchronous motors |
|
Phase |
3 phase |
|
Motor power kW |
30 kW |
|
Maximum Horse Power Rating |
40 hp |
|
Supply voltage limits |
323…528 V |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Line current |
44.7 A 480 V |
|
Range of Product |
Altivar 212 |
|
Product or Component Type |
Variable speed drive |
|
Product Specific Application |
Pumps and fans in HVAC |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP21 |
|
Apparent power |
44.6 kVA 380 V |
|
Continuous output current |
58.5 A 380 V, 58.5 A 460 V |
|
Maximum transient current |
64.4 A 60 s |
|
Speed drive output frequency |
0.5…200 Hz |
|
Speed range |
1…10 |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Local signalling |
For DC bus energized 1 LED (red) |
|
Output voltage |
<= power supply voltage |
|
Isolation |
Electrical between power and control |
|
Insulation resistance |
>= 1 mOhm 500 V DC for 1 minute |
|
Frequency resolution |
Display unit 0.1 Hz |
|
Communication card |
LonWorks |
|
Power dissipation in W |
847 W |
|
Air flow |
76611.27 Gal/hr(US) (290 m3/h) |
|
Functionality |
Mid |
|
Specific application |
HVAC |
|
Analogue output number |
1 |
|
Physical interface |
2-wire RS 485 |
|
Connector Type |
1 open style, 1 RJ45 |
|
Transmission Rate |
9600 bps or 19200 bps |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, 1 stop, odd even or no configurable parity |
|
Type of polarization |
No impedance |
|
Torque accuracy |
+/- 15 % |
|
Transient overtorque |
120 % of nominal motor torque +/- 10 % 60 s |
|
Nominal switching frequency |
8 kHz |
|
Braking to standstill |
By DC injection |
|
Network Frequency |
47.5...63 Hz |
|
Prospective line Isc |
22 kA |
|
Regulation loop |
Adjustable PI regulator |
|
Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
Information About ATV212HD30N4
The ATV212HD30N4 is a variable speed drive from the Altivar 212 series, designed to power 3-phase asynchronous motors. Featuring an IP21 protection index and a built-in EMC filter, this drive operates within a rated power range of up to 30 kW / 40 hp and a rated voltage from 380V to 480V AC.
Notably, its design prioritizes eco-energy principles, boasting an energy consumption reduction of up to 70% compared to conventional control systems. Thanks to innovative cable temperature rise reduction technology, the Altivar 212 ensures immediate, disturbance-free operation, eliminating the need for additional options like line chokes or DC chokes to manage current harmonics.
With dimensions of 240mm width, 420mm height, and 214mm depth, weighing 26.4kg, it's tailored for common fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping.
This drive conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3, ensuring immunity and compliance with conducted and radiated EMC emissions. Additionally, it holds certifications such as CE, UL, CSA, C-Tick, and NOM.
An optional feature of the Altivar 212 includes motor chokes, enhancing cable length flexibility between the drive and motor while mitigating disturbance at the motor terminals.
