ATV212HD37N4 | Schneider Electric Variable speed drive
- Regular price
- $2,367.00
- Sale price
- $2,367.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

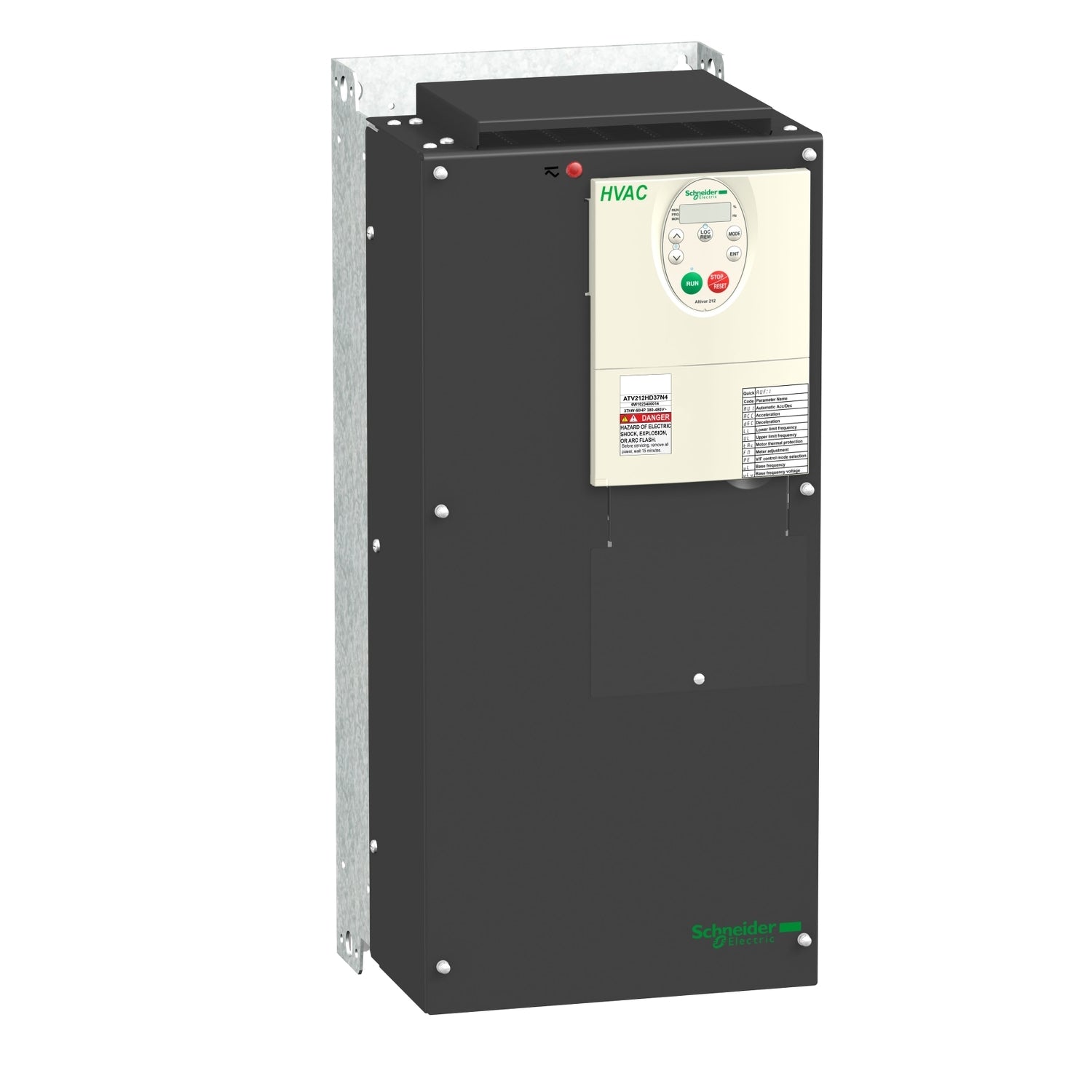

Product Description P/N: ATV212HD37N4
Description
The ATV212HD37N4 is a variable speed drive from the Altivar 212 series, designed for feeding 3-phase asynchronous motors. Featuring an IP21 protection index and built-in EMC filter, it ensures reliable operation while mitigating electromagnetic interference. With a rated power capacity of up to 37 kW / 50 hp and a rated voltage range from 380V to 480V AC, it offers versatile performance in various industrial applications.
Utilizing eco-energy design principles, the Altivar 212 drive reduces energy consumption by up to 70% compared to conventional control systems. It incorporates cable temperature rise reduction technology, enabling disturbance-free operation without the need for additional options such as line chokes or DC chokes to manage current harmonics.
Weighing 38.1 kg and measuring 240 mm wide, 550 mm high, and 244 mm deep, the drive is compact yet robust. It is specifically tailored for fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping.
Technical Specifications
|
Part # |
ATV212HD37N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
Device short name |
ATV212 |
|
Product destination |
Asynchronous motors |
|
Phase |
3 phase |
|
Motor power kW |
37 kW |
|
Maximum Horse Power Rating |
50 hp |
|
Supply voltage limits |
323…528 V |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Line current |
68.9 A 380 V |
|
Range of Product |
Altivar 212 |
|
Product Specific Application |
Pumps and fans in HVAC |
|
Us] rated supply voltage |
380...480 V - 15...10 % |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP21 |
|
Apparent power |
52 kVA 380 V |
|
Continuous output current |
79 A 380 V |
|
Maximum transient current |
86.9 A 60 s |
|
Speed drive output frequency |
0.5…200 Hz |
|
Speed range |
1…10 |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Local signalling |
For DC bus energized 1 LED (red) |
|
Output voltage |
<= power supply voltage |
|
Isolation |
Electrical between power and control |
|
Option card |
Communication card LonWorks |
|
Power dissipation in W |
976 W |
|
Air flow |
88235.05 Gal/hr(US) (334 m3/h) |
|
Functionality |
Mid |
|
Specific application |
HVAC |
|
Transmission Rate |
9600 bps or 19200 bps |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, 1 stop, odd even or no configurable parity |
|
Type of polarization |
No impedance |
|
Torque accuracy |
+/- 15 % |
|
Transient overtorque |
120 % of nominal motor torque +/- 10 % 60 s |
|
Nominal switching frequency |
8 kHz |
|
Braking to standstill |
By DC injection |
|
Network Frequency |
47.5...63 Hz |
|
Prospective line Isc |
22 kA |
|
Regulation loop |
Adjustable PI regulator |
|
Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
Information About ATV212HD37N4
The ATV212HD37N4 is a variable speed drive from the Altivar 212 series, designed to power 3-phase asynchronous motors. Featuring an IP21 protection index and a built-in EMC filter, this drive operates at a rated power of up to 37 kW (50 hp) and a rated voltage ranging from 380V to 480V AC.
Engineered for eco-energy efficiency, the Altivar 212 drive offers up to a 70% reduction in energy consumption compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate, disturbance-free operation, eliminating the need for additional accessories like line chokes or DC chokes to handle current harmonics.
With dimensions of 240mm wide, 550mm high, and 244mm deep, and weighing 38.1kg, this drive is specifically tailored for fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping.
Certified to meet international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the ATV212HD37N4 also holds certifications from CE, UL, CSA, C-Tick, and NOM.
Moreover, it offers optional motor chokes, enabling increased maximum cable lengths between the drive and the motor while limiting disturbance at the motor terminals.
