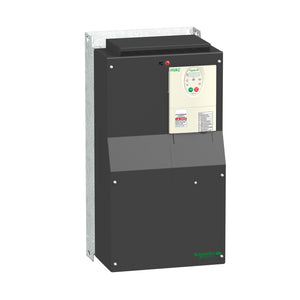

ATV212HD55N4 | Schneider Electric Variable speed drive, Altivar 212, 55kW, 75hp, 480V, 3 phases, with EMC, IP21
- Regular price
- $3,492.00
- Sale price
- $3,492.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV212HD55N4
Description
Variable Speed / Frequency Drive (VSD/VFD) / Inverter with built-in EMC filter (class C2 / class C3) + built-in heatsnk. - IP21 / UL type 1 version - Schneider Electric (Altivar 212 series) - Rated output 55kW / 75HP / 116A - Supply voltage 323-528Vac (380Vac / 400Vac / 480Vac / 500Vac nom.) (3-phase (3P)) - with Modbus / Metasys N2 / Apogee FLN / BACnet communication capability - Wall mounting
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATV212HD55N4 |
| Category | Drives |
| Subcategory | Drive |
| Amperage Rating | 116 A |
| Depth | 11.42 in |
| Display Type | LED |
| Enclosure Type | IP20/IP21/IP41/Open, Open/IP20/IP21/IP41 |
| Height | 24.8 in |
| Horsepower | 75 hp |
| Mounting type | Panel |
| Type | 3-Phase |
| Voltage Rating | 400/480 VAC |
| Width | 12.6 in |
Information About ATV212HD55N4
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 55kW / 75hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 55.4kg and its dimensions are, 320mm wide, 630mm high, 290mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Features
Centralized technical management
Centered on user-friendliness
Centered on protection
Variable torque application
Small size saves valuable panel space
Local/remote button allows quick start-up
Include a full complement of integrated building automation network
Reduced harmonic technology eliminate the need for line reactor and reduce both wire size and upstream overcurrent protection device, further saving panel space and lowering component cost
Maximum output voltage equal to input voltage 3-ph output
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
