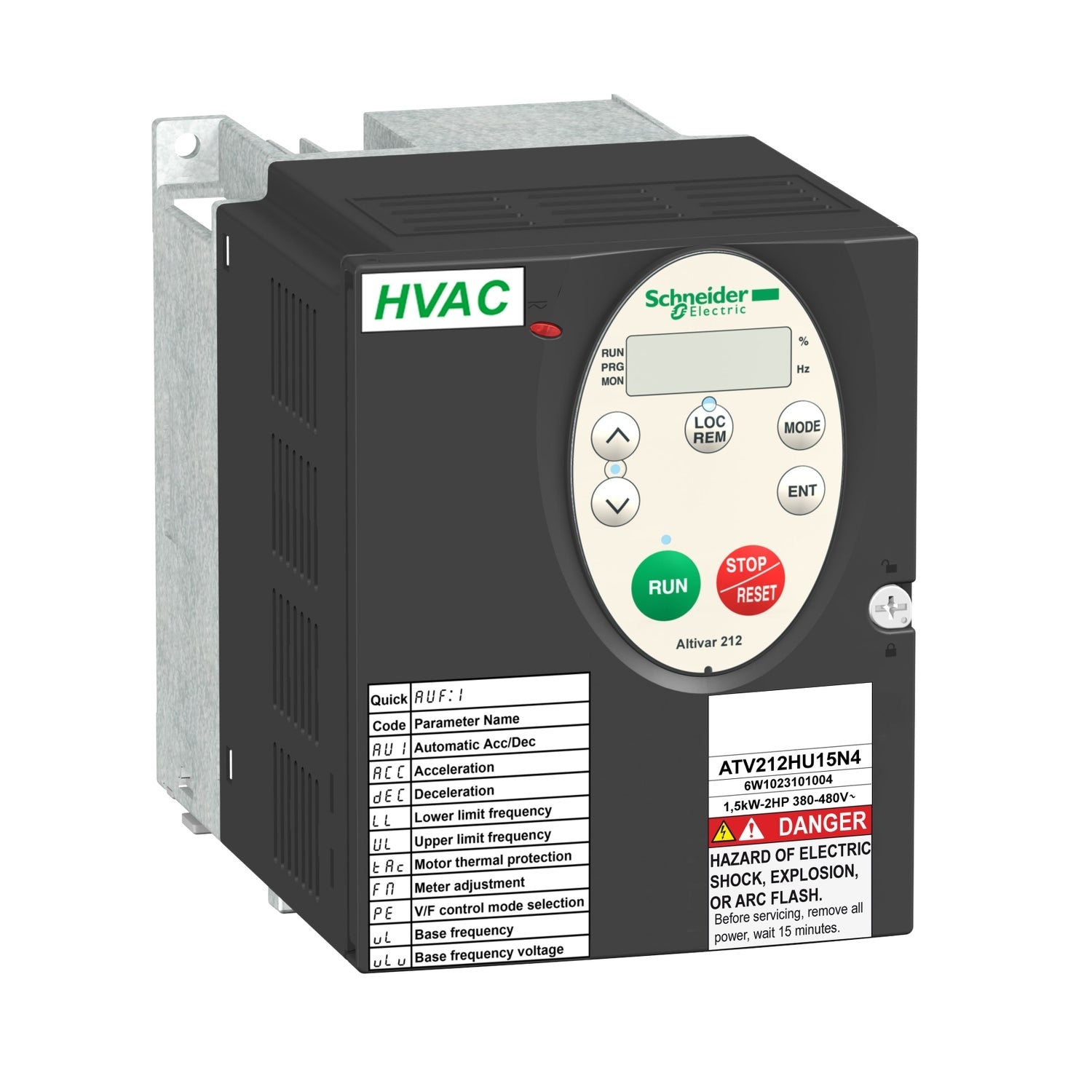

ATV212HU15N4 | Schneider Electric Variable speed drive, Altivar 212, 1.5kW, 2hp, 480V, 3 phases, with EMC, IP21

Description

Schneider Electric Altivar 212 AC Variable Speed Drive, 3-Phase, 400/480 VAC, 3.7 A, 2 hp, 107 mm Width, 150 mm Depth, 143 mm Height, IP20/IP21/IP41/Open Enclosure, LED Display, Panel Mounting.

Technical Specifications

Information About ATV212HU15N4

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 2kg and its dimensions are, 107mm wide, 143mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It can also be mounted directly on a 35 mm wide DIN rail, thanks to the kit VW3A31852, to order separately. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.

Features
Centralized technical management
Centered on user friendliness
Centered on protection
APOGEE FLN, BACnet, LonWorks, METASYS N2, Modbus optional communication card
Small size saves valuable panel space
Local/remote button allows quick-startup
Includes a full complement of integrated building automation networks
Reduced harmonic technology eliminates the need for line reactors and reduces both wire size and upstream overcurrent protection devices, further saving panel space and lowering component cost
Maximum output voltage equal to input voltage 3-phase output
Variable torque application
2.5 sq-mm/14 AWG VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal, 6 sq-mm/10 AWG L1/R, L2/S, L3/T terminal
Overheating protection drive, thermal power stage drive, short circuit between motor phases drive, input phase breaks drive, overcurrent between output phases and earth drive, overvoltage on the DC bus drive, break on the control circuit drive, against exceeding limit speed drive, line supply overvoltage and undervoltage drive, line supply undervoltage drive
Voltage/frequency ratio - 5 points, 2 points, energy saving, quadratic U/f, automatic IR compensation (U/f + automatic Uo), flux vector control without sensor, standard.
