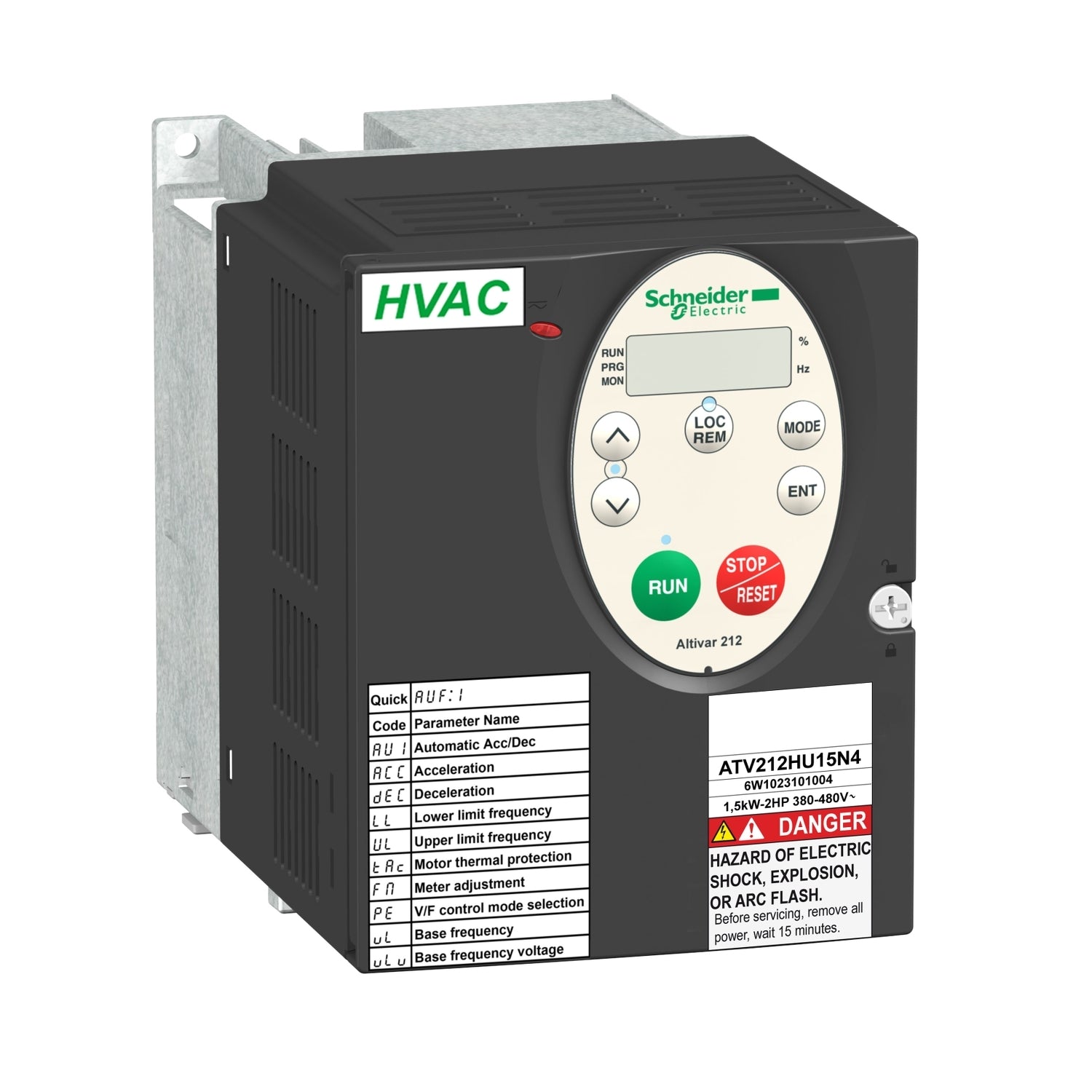

ATV212HU22N4 | Schneider Electric Variable speed drive
ATV212HU22N4 | Schneider Electric Variable speed drive
Part #: ATV212HU22N4 Manufactured by: Schneider Electric

ATV212HU22N4 | Schneider Electric Variable speed drive

Regular price
$641.00
Sale price
$641.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
The ATV212HU22N4 is a variable speed drive from the Altivar 212 series, designed to control 3-phase asynchronous motors. W...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: ATV212HU22N4
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
ATV212HU22N4 | Schneider Electric Variable speed drive
    ATV212HU22N4 | Schneider Electric Variable speed drive
ATV212HU22N4 | Schneider Electric Variable speed drive
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: ATV212HU22N4

Description / Specifications

Description

The ATV212HU22N4 is a variable speed drive from the Altivar 212 series, designed to regulate the speed of 3-phase asynchronous motors. Featuring a protection index of IP21 and a built-in EMC filter, it ensures reliable operation in industrial environments.

Operating within a rated power range of up to 2.2kW (3hp) and a rated voltage from 380V to 480V AC, the Altivar 212 drive is engineered for energy efficiency, offering up to a 70% reduction in energy consumption compared to conventional control systems.

With a weight of 2kg and dimensions measuring 107mm in width, 143mm in height, and 150mm in depth, it provides a compact solution for fluid management applications, particularly in tertiary sector buildings such as HVAC systems.


Technical Specifications

Part #

ATV212HU22N4

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive

Device short name

ATV212

Product destination

Asynchronous motors

Network number of phases

3 phases

Motor power kW

2.2 kW

Motor power hp

3 hp

Supply voltage limits

323…528 V

Supply frequency

50...60 Hz - 5...5 %

Line current

3.6 A at 480 V

Range of product

Altivar 212

[Us] rated supply voltage

380...480 V - 15...10 %

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP21

Apparent power

3.9 kVA at 380 V

Continuous output current

5.1 A at 380 V

Maximum transient current

5.6 A for 60 s

Speed drive output frequency

0.5…200 Hz

Speed range

1…10

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Local signalling

1 LED (red) for DC bus energized

Output voltage

<= power supply voltage

Isolation

Electrical between power and control Option card

Communication card for LonWorks

Power dissipation in W

Air flow

35 m3/h

Functionality

Mid

Specific application

HVAC

Motor power range AC-3

2.2…3 kW at 380…440 V 3 phases

Motor starter type

Variable speed drive

Discrete output number

2

Analogue input number

2

Analogue output number

1

Physical interface

2-wire RS 485

Connector type

1 open style

Transmission rate

9600 bps or 19200 bps

Transmission frame

RTU

Number of addresses

1…247

Data format

8 bits, 1 stop, odd even or no configurable parity

Type of polarization

No impedance

Torque accuracy

+/- 15 %

Transient overtorque

120 % of nominal motor torque +/- 10 % for 60 s

Acceleration and deceleration ramps

Automatic based on the load

Nominal switching frequency

12 kHz

Braking to standstill

By DC injection

Network frequency

47.5...63 Hz

Prospective line Isc

5 kA

Regulation loop

Adjustable PI regulator

Ambient air temperature for storage

-25…70 °C





Information About ATV212HU22N4


The ATV212HU22N4 is a variable speed drive from the Altivar 212 series, engineered to regulate the speed of 3-phase asynchronous motors. Featuring a protection index of IP21 and an integrated EMC filter, it operates at a rated power of up to 2.2kW (3hp) and a rated voltage ranging from 380V to 480V AC.

Designed with eco-energy principles, this drive boasts a remarkable reduction in energy consumption of up to 70% compared to conventional control systems. It employs cable temperature rise reduction technology to ensure immediate, disturbance-free operation, eliminating the need for additional components like line chokes or DC chokes to manage current harmonics.

With dimensions measuring 107mm in width, 143mm in height, and 150mm in depth, and weighing 2kg, the ATV212HU22N4 is specifically tailored for fluid management applications in tertiary sector buildings, particularly in heating, ventilation, air conditioning, and pumping systems.

Compliant with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity, conducted, and radiated EMC emissions, it holds certifications including CE, UL, CSA, C-Tick, and NOM.

Optional motor chokes are available to extend maximum cable lengths between the drive and the motor while mitigating disturbances at the motor terminals.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The ATV212HU22N4 is a variable speed drive from the Altivar 212 series, designed to regulate the speed of 3-phase asynchronous motors. Featuring a protection index of IP21 and a built-in EMC filter, it ensures reliable operation in industrial environments.

Operating within a rated power range of up to 2.2kW (3hp) and a rated voltage from 380V to 480V AC, the Altivar 212 drive is engineered for energy efficiency, offering up to a 70% reduction in energy consumption compared to conventional control systems.

With a weight of 2kg and dimensions measuring 107mm in width, 143mm in height, and 150mm in depth, it provides a compact solution for fluid management applications, particularly in tertiary sector buildings such as HVAC systems.


Technical Specifications

Part #

ATV212HU22N4

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Drives

Subcategory

Drive

Device short name

ATV212

Product destination

Asynchronous motors

Network number of phases

3 phases

Motor power kW

2.2 kW

Motor power hp

3 hp

Supply voltage limits

323…528 V

Supply frequency

50...60 Hz - 5...5 %

Line current

3.6 A at 480 V

Range of product

Altivar 212

[Us] rated supply voltage

380...480 V - 15...10 %

EMC filter

Class C2 EMC filter integrated

IP degree of protection

IP21

Apparent power

3.9 kVA at 380 V

Continuous output current

5.1 A at 380 V

Maximum transient current

5.6 A for 60 s

Speed drive output frequency

0.5…200 Hz

Speed range

1…10

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Local signalling

1 LED (red) for DC bus energized

Output voltage

<= power supply voltage

Isolation

Electrical between power and control Option card

Communication card for LonWorks

Power dissipation in W

Air flow

35 m3/h

Functionality

Mid

Specific application

HVAC

Motor power range AC-3

2.2…3 kW at 380…440 V 3 phases

Motor starter type

Variable speed drive

Discrete output number

2

Analogue input number

2

Analogue output number

1

Physical interface

2-wire RS 485

Connector type

1 open style

Transmission rate

9600 bps or 19200 bps

Transmission frame

RTU

Number of addresses

1…247

Data format

8 bits, 1 stop, odd even or no configurable parity

Type of polarization

No impedance

Torque accuracy

+/- 15 %

Transient overtorque

120 % of nominal motor torque +/- 10 % for 60 s

Acceleration and deceleration ramps

Automatic based on the load

Nominal switching frequency

12 kHz

Braking to standstill

By DC injection

Network frequency

47.5...63 Hz

Prospective line Isc

5 kA

Regulation loop

Adjustable PI regulator

Ambient air temperature for storage

-25…70 °C





Information About ATV212HU22N4


The ATV212HU22N4 is a variable speed drive from the Altivar 212 series, engineered to regulate the speed of 3-phase asynchronous motors. Featuring a protection index of IP21 and an integrated EMC filter, it operates at a rated power of up to 2.2kW (3hp) and a rated voltage ranging from 380V to 480V AC.

Designed with eco-energy principles, this drive boasts a remarkable reduction in energy consumption of up to 70% compared to conventional control systems. It employs cable temperature rise reduction technology to ensure immediate, disturbance-free operation, eliminating the need for additional components like line chokes or DC chokes to manage current harmonics.

With dimensions measuring 107mm in width, 143mm in height, and 150mm in depth, and weighing 2kg, the ATV212HU22N4 is specifically tailored for fluid management applications in tertiary sector buildings, particularly in heating, ventilation, air conditioning, and pumping systems.

Compliant with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity, conducted, and radiated EMC emissions, it holds certifications including CE, UL, CSA, C-Tick, and NOM.

Optional motor chokes are available to extend maximum cable lengths between the drive and the motor while mitigating disturbances at the motor terminals.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
