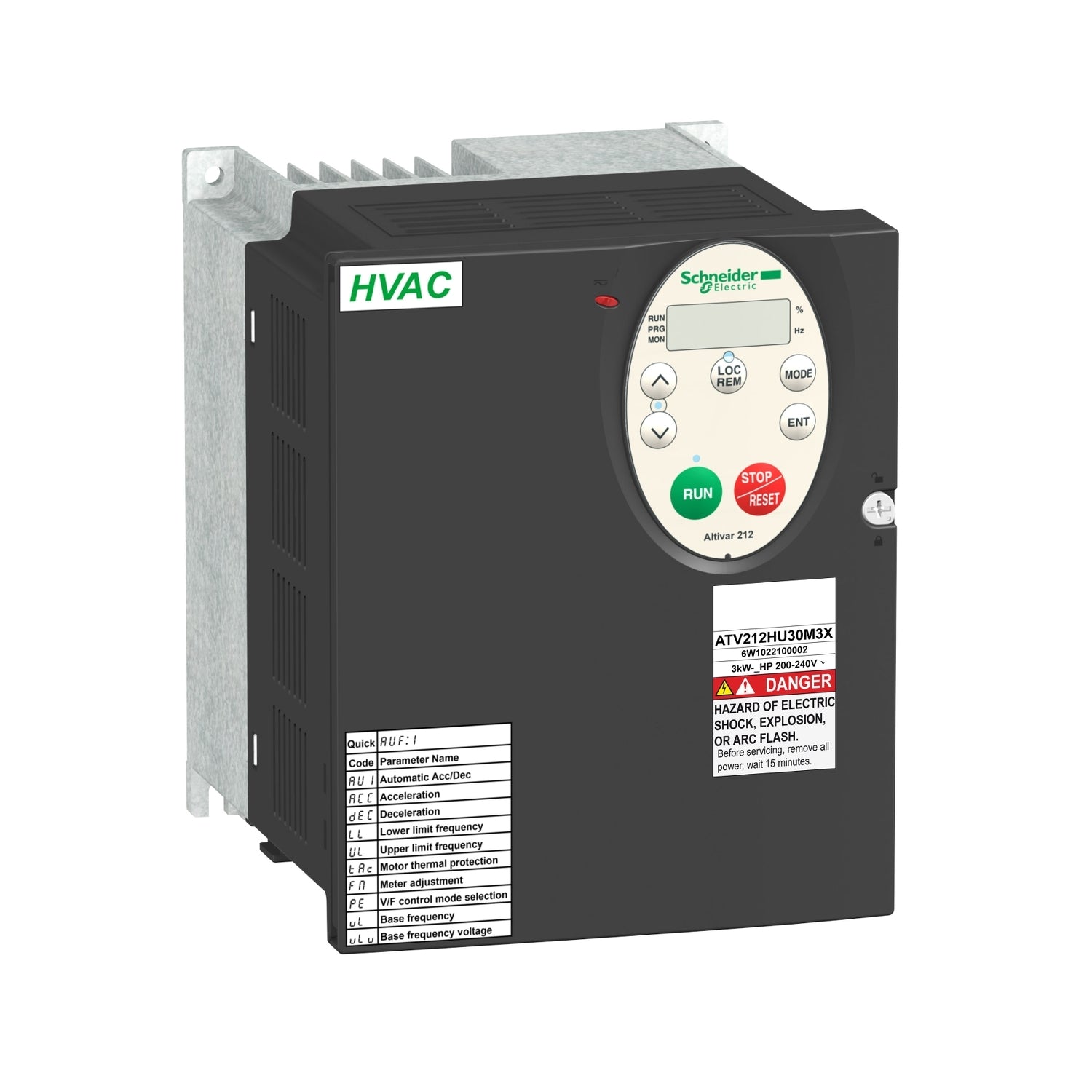

ATV212HU40M3X | Schneider Electric Variable speed drive
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Do you need help?
Product Description P/N: ATV212HU40M3X
Description
The ATV212HU40M3X is a variable speed drive from the Altivar 212 series, designed to power 3-phase asynchronous motors. With a protection index of IP21, it ensures safe operation in various industrial environments. Operating at a rated power of up to 4 kW (or 5 hp) and a rated voltage range of 200V to 240V AC, it caters to diverse fluid management applications.
This drive is engineered with eco-energy principles, boasting energy consumption reduction of up to 70% compared to conventional control systems. Its cable temperature rise reduction technology enables immediate and disturbance-free operation, eliminating the need for additional options such as line chokes or DC chokes to address current harmonics.
Technical Specifications
Part # |
ATV212HU40M3X |
Manufacturer |
SCHNEIDER ELECTRIC |
Brand |
SQUARE D |
Category |
Drives |
Subcategory |
Drive |
Device short name |
ATV212 |
Product destination |
Asynchronous motors |
Phase |
3 phase |
Motor power kW |
4 kW |
Maximum Horse Power Rating |
5 hp |
Supply voltage limits |
170…264 V |
Supply frequency |
50...60 Hz - 5...5 % [Us] rated supply voltage |
EMC filter |
Without EMC filter |
IP degree of protection |
IP21 |
Apparent power |
6.7 kVA 240 V |
Continuous output current |
17.5 A 230 V |
Maximum transient current |
19.3 A 60 s |
Speed drive output frequency |
0.5…200 Hz |
Speed range |
1…10 |
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
Local signalling |
For DC bus energized 1 LED (red) |
Output voltage |
<= power supply voltage |
Isolation |
Electrical between power and control Option card |
Communication card |
LonWorks |
Power dissipation in W |
193 W |
Air flow |
17435.67 Gal/hr(US) (66 m3/h) |
Specific application |
HVAC |
Motor power range AC-3 |
4…6 kW 200…240 V 3 phase |
Motor starter type |
Variable speed drive |
Discrete output number |
2 |
Analogue input number |
2 |
Analogue output number |
1 |
Physical interface |
2-wire RS 485 |
Connector Type |
1 RJ45, 1 open style |
Transmission Rate |
9600 bps or 19200 bps |
Transmission frame |
RTU |
Number of addresses |
1…247 |
Data format |
8 bits, 1 stop, odd even or no configurable parity |
Type of polarization |
No impedance |
Torque accuracy |
+/- 15 % |
Transient overtorque |
120 % of nominal motor torque +/- 10 % 60 s |
Nominal switching frequency |
12 kHz |
Braking to standstill |
By DC injection |
Network Frequency |
47.5...63 Hz |
Prospective line Isc |
5 kA |
Regulation loop |
Adjustable PI regulator |
Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
Information About ATV212HU40M3X
The ATV212HU40M3X is a variable speed drive from the Altivar 212 series designed to power 3-phase asynchronous motors. With a protection index of IP21, it operates at a rated power of up to 4kW / 5hp and a rated voltage ranging from 200V to 240V AC. Engineered with eco-energy principles, this drive offers a remarkable reduction in energy consumption of up to 70% compared to conventional control systems.
Featuring cable temperature rise reduction technology, the Altivar 212 ensures immediate and disturbance-free operation, eliminating the need for additional options such as line choke or DC choke to address current harmonics. Weighing 3.05kg, its dimensions are 142mm wide, 184mm high, and 150mm deep.
Primarily intended for fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping, the Altivar 212 complies with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3, ensuring immunity and compliance with EMC emissions. It holds certifications from CE, UL, CSA, C-Tick, and NOM.
The Altivar 212 offers optional motor chokes, enhancing the maximum cable lengths between the drive and the motor while limiting disturbance at the motor terminals. It is designed for vertical mounting (+/- 10 °) on a panel, facilitated by 4 fixing holes.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
