ATV212HU40N4 | Schneider Electric Variable speed drive
- Regular price
- $615.00
- Sale price
- $615.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV212HU40N4
Description

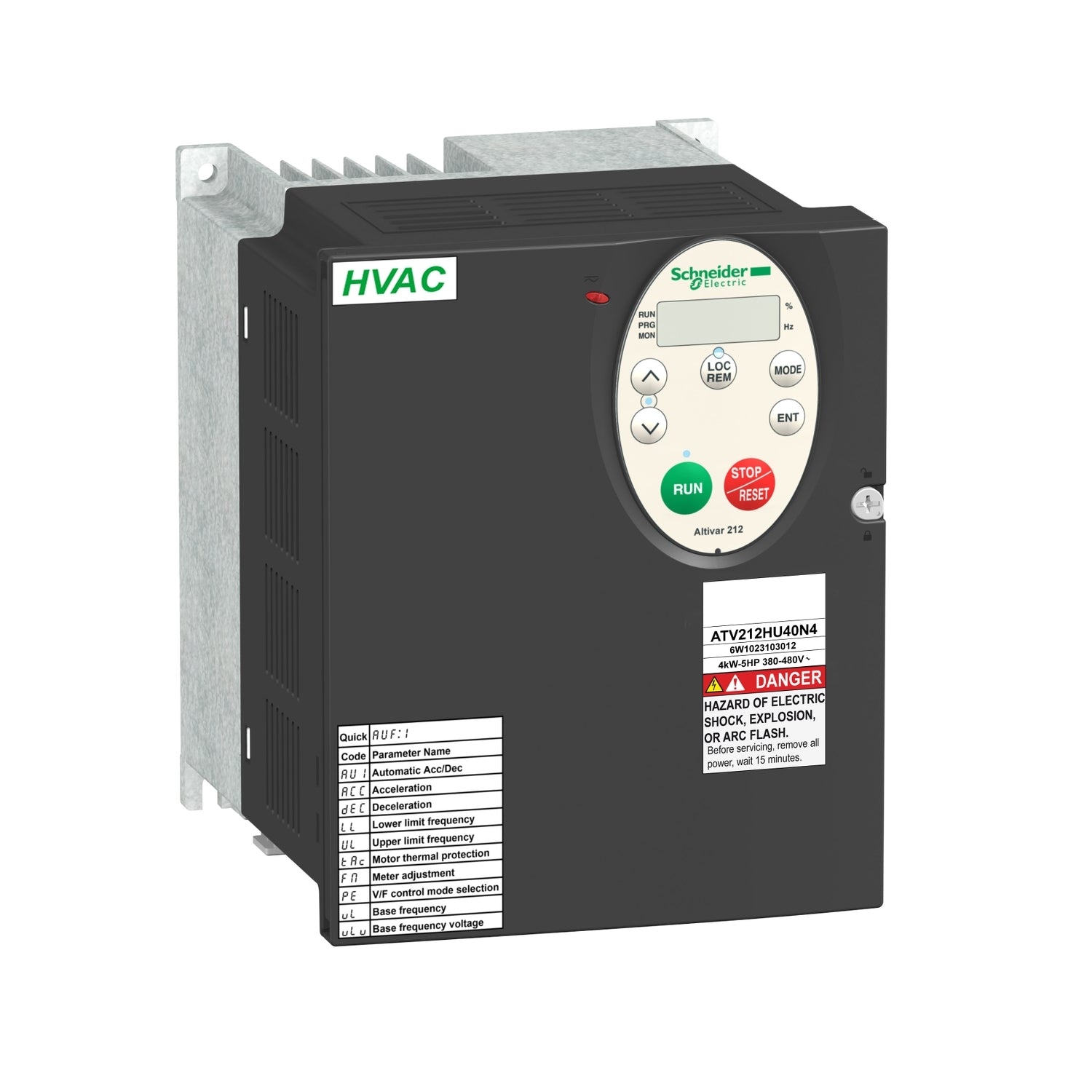

The ATV212HU40N4 is a variable speed drive from the Altivar 212 series designed for 3-phase asynchronous motors. Featuring an IP21 protection index and a built-in EMC filter, it ensures reliable operation and compliance with international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions. Operating at a rated power of up to 4kW / 5hp and a rated voltage ranging from 380V to 480V AC, it is suitable for various fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping.
With a focus on eco-energy, the Altivar 212 drive offers energy savings of up to 70% compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional options such as line chokes or DC chokes to address current harmonics. Weighing 3.35kg and measuring 142mm wide, 184mm high, and 150mm deep, it provides a compact and efficient solution for motor control applications.
Certified by CE, UL, CSA, C-Tick, and NOM, the Altivar 212 drive meets stringent quality and safety standards. It offers optional motor chokes to increase maximum cable lengths between the drive and the motor while limiting disturbances at the motor terminals. The drive is designed for vertical mounting (+/- 10 °) on a panel, featuring four fixing holes for easy installation.
Technical Specifications
|
Part # |
ATV212HU40N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
SUPPLY VOLTAGE |
380/415 VAC, 50/60 HZ |
|
Device short name |
ATV212 |
|
Product destination |
Asynchronous motors |
|
Network number of phases |
3 phases |
|
Motor power kW |
4 kW |
|
Motor power hp |
5 hp |
|
Supply voltage limits |
323…528 V |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Line current |
6.4 A at 480 V, 8.1 A at 380 V |
|
Range of product |
Altivar 212 |
|
Product specific application |
Pumps and fans in HVAC |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP21 |
|
Apparent power |
6.9 kVA at 380 V |
|
Continuous output current |
9.1 A at 380 V, 9.1 A at 460 V |
|
Maximum transient current |
10 A for 60 s |
|
Speed drive output frequency |
0.5…200 Hz |
|
Speed range |
1…10 |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Local signalling |
1 LED (red) for DC bus energized |
|
Output voltage |
<= power supply voltage |
|
Isolation |
Electrical between power and control |
|
Option card |
Communication card for LonWorks |
|
Power dissipation in W |
176 W |
|
Air flow |
60 m3/h |
|
Functionality |
Mid |
|
Specific application |
HVAC |
|
Analogue output number |
1 |
|
Physical interface |
2-wire RS 485 |
|
Connector type |
1 open style, 1 RJ45 |
|
Transmission rate |
9600 bps or 19200 bps |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, 1 stop, odd even or no configurable parity |
|
Type of polarization |
No impedance |
|
Torque accuracy |
+/- 15 % |
|
Transient overtorque |
120 % of nominal motor torque +/- 10 % for 60 s |
|
Nominal switching frequency |
12 kHz |
|
Braking to standstill |
By DC injection |
|
Network frequency |
47.5...63 Hz |
|
Prospective line Isc |
5 kA |
|
Regulation loop |
Adjustable PI regulator |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV212HU40N4
The ATV212HU40N4 is a variable speed drive from the Altivar 212 series, designed to operate 3-phase asynchronous motors. Featuring a protection index of IP21, it incorporates a built-in EMC filter. This drive is compatible with a rated power of up to 4 kW / 5 hp and operates within a rated voltage range from 380V to 480V AC.
Engineered with an eco-energy focus, the Altivar 212 drive offers significant energy savings of up to 70% compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional components such as line chokes or DC chokes to manage current harmonics.
With a weight of 3.35 kg and dimensions measuring 142mm wide, 184mm high, and 150mm deep, this drive is specifically tailored for fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping systems.
Compliant with international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, the ATV212HU40N4 drive is also certified by CE, UL, CSA, C-Tick, and NOM.
The Altivar 212 drive offers optional motor chokes, which extend the maximum cable lengths between the drive and the motor while minimizing disturbances at the motor terminals. It is designed for vertical mounting (+/- 10 °) on a panel, facilitated by four fixing holes.
