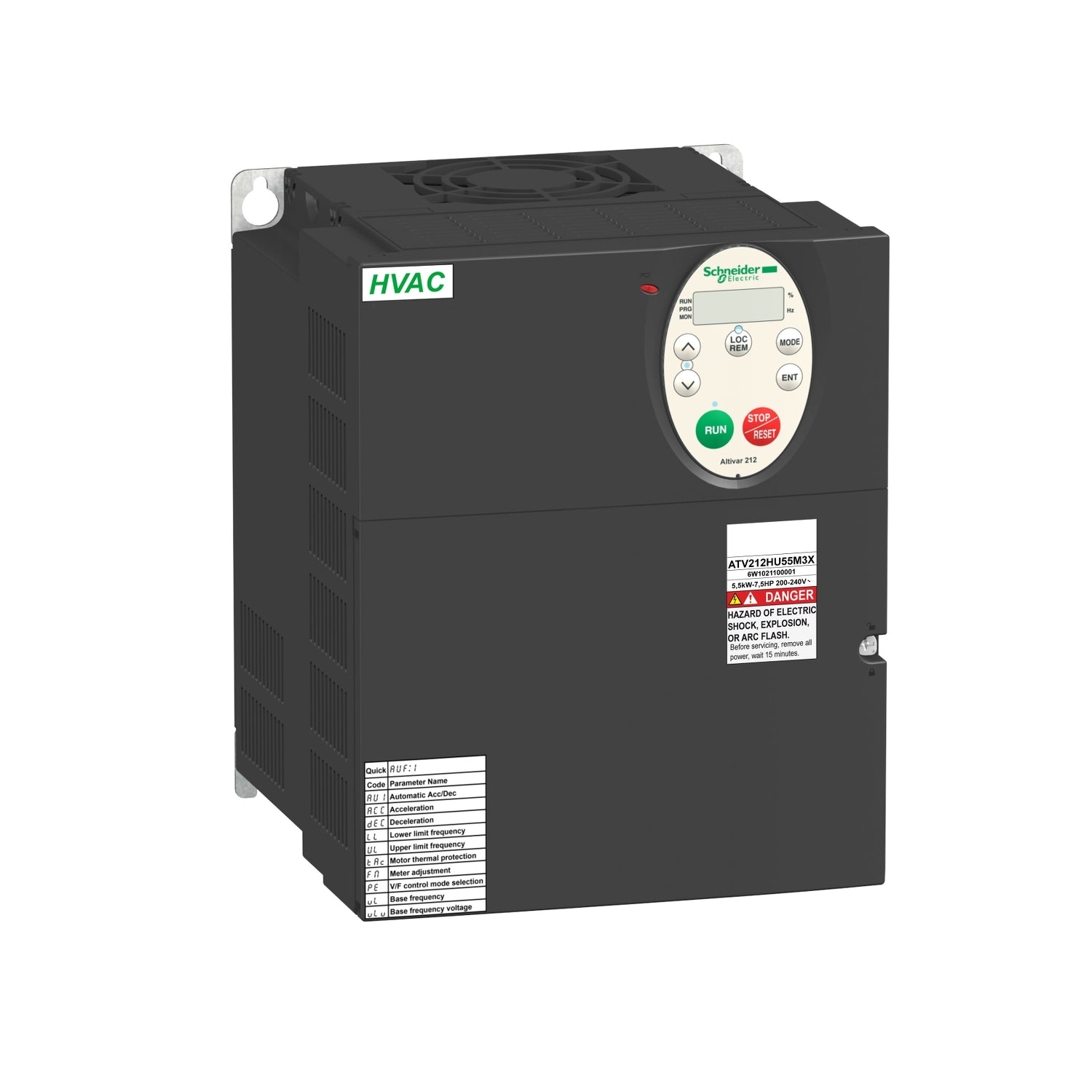

ATV212HU55M3X | Schneider Electric Variable speed drive, Altivar 212, 5.5kW, 7.5hp, 240V, 3 phases, without EMC, IP21
- Regular price
- $1,325.00
- Sale price
- $1,325.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV212HU55M3X
Description
The Schneider Electric ATV212HU55M3X is a powerful Variable Speed Drive from the Altivar 212 series. With a 5.5kW (7.5hp) capacity and 240V compatibility across 3 phases, it delivers precise motor control. Featuring an IP21 rating and without EMC, it ensures reliable performance in diverse industrial applications.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATV212HU55M3X |
| Category | Drives |
| Subcategory | Drive |
| Motor Drive Type | Variable Speed Drive - VSD |
| Operating Supply Voltage | 200 VAC to 240 VAC |
| Current Rating | 20.8 A |
| Power Rating | 5.5 kW |
| Number of Phases | 3 Phase |
| IP Rating | IP21 |
| Series | ATV212 |
| Supply frequency | 50...60 Hz (- 5...5 %) |
Information About ATV212HU55M3X
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21. It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 200V to 240V AC. Its design allows for up to 70% reduction in energy consumption compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 6.1kg and its dimensions are, 180mm wide, 232mm high, 170mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is labeled Green Premium and complies with environmental protection directives such as RoHS, WEEE, etc.
Features:
Instant viewing of the energy consumption
Detection of failures for quick intervention: belt breakage, pump running dry, phase failure, supply fault, etc.
Preventative maintenance for reducing costs and optimizing the equipment: fault alert, operating time, etc.
Connection to building supervision network using ebmedded protocol
Dedicated "Building" series functions (fire mode, register monitoring, mechanical protection function, etc.
Communication bus most commonly used on the market integrated: Modbus, METASYS N2®, APOGEE FLN P1® and BACnet®. Optional: LonWorks
Complies to international standards and certifications: UL, CSA, C-Tick and NOM
Antiharmonic technology enables a THDI < 30% to be achieved
Speed range: 1:50
Transient overtorque: 110% - 60 s.
Integrated EMC filters, categories C1 to C3 depending on model
Altivar 212 covers motor powers between 0.75 kW and 75 kW on the following supplies:
- 200...240V 3-phase, from 0.75 kW to 30 kW, IP 21
- 380...480V 3-phase, from 0.75 kW to 75 kW, IP 21
- 380...480V 3-phase, from 0.75 kW to 75 kW, UL Type 12/IP 55
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
