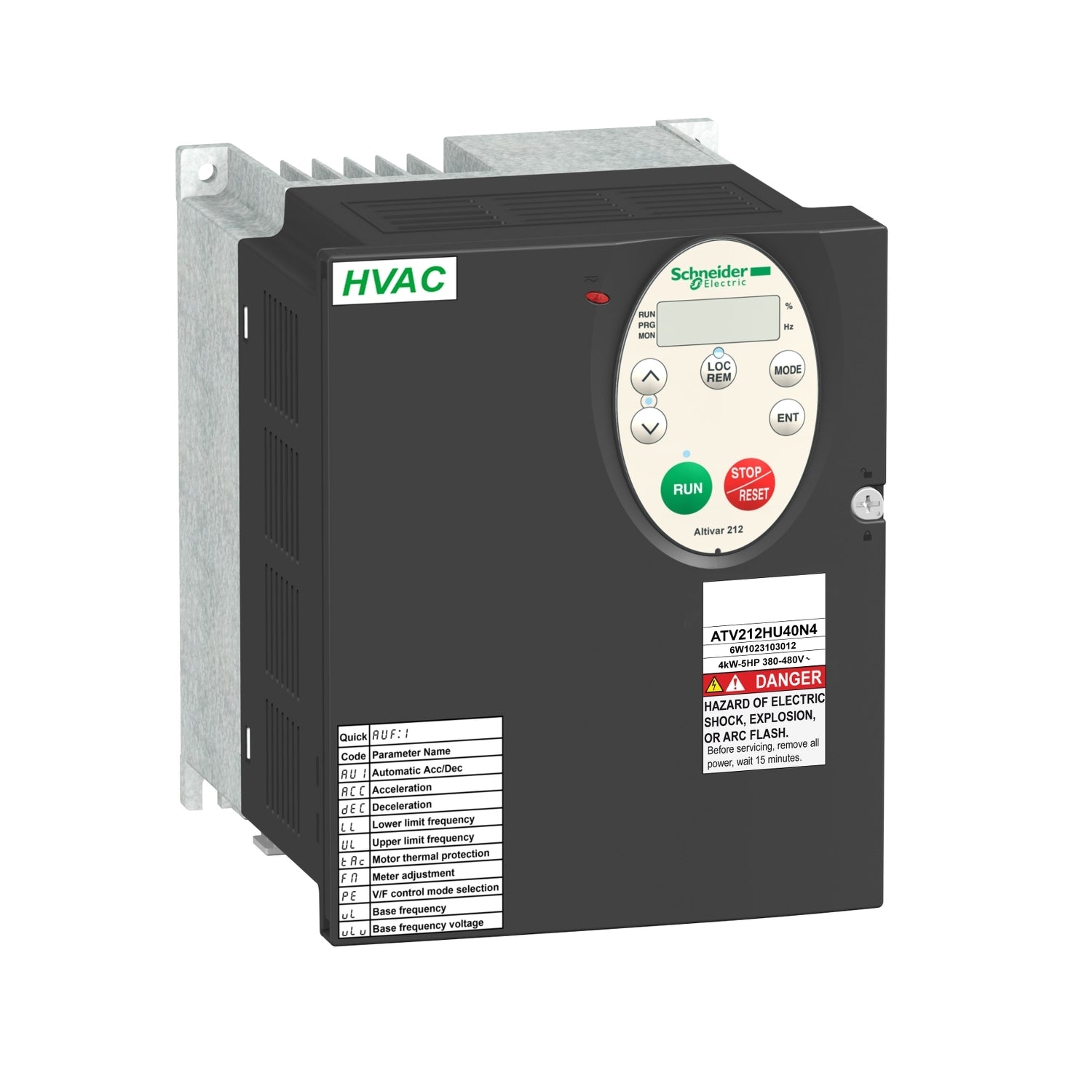

ATV212HU55N4 | Schneider Electric Variable speed drive
- Regular price
- $697.00
- Sale price
- $697.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV212HU55N4
Description
Technical Specifications
|
Part # |
ATV212HU55N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive Device short name |
|
Product destination |
Asynchronous motors |
|
Network number of phases |
3 phases |
|
Motor power kW |
5.5 kW |
|
Motor power hp |
7.5 hp |
|
Supply voltage limits |
323…528 V |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Line current |
10.9 A at 380 V |
|
Range of produc |
Altivar 212 |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Pumps and fans in HVAC |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP21 |
|
Apparent power |
9.1 kVA at 380 V |
|
Continuous output current |
12 A at 380 V |
|
Maximum transient current |
13.2 A for 60 s |
|
Speed drive output frequency |
0.5…200 Hz |
|
Speed range |
1…10 |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Local signalling |
1 LED (red) for DC bus energized |
|
Output voltage |
<= power supply voltage |
|
Isolation |
Electrical between power and control |
|
Option card |
Communication card for LonWorks |
|
Power dissipation in W |
215 W |
|
Air flow |
74 m3/h |
|
Functionality |
Mid |
|
Specific application |
HVAC |
|
Motor power range AC-3 |
4…6 kW at 380…440 V 3 phases |
|
Motor starter type |
Variable speed drive |
|
Discrete output number |
2 |
|
Analogue input number |
2 |
|
Analogue output number |
1 |
|
Physical interface |
2-wire RS 485 |
|
Connector type |
1 RJ45 |
|
Transmission rate |
9600 bps or 19200 bps |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, 1 stop, odd even or no configurable parity |
|
Type of polarization |
No impedance |
|
Torque accuracy |
+/- 15 % |
|
Transient overtorque |
120 % of nominal motor torque +/- 10 % for 60 s |
|
Nominal switching frequency |
12 kHz |
|
Braking to standstill |
By DC injection |
|
Network frequency |
47.5...63 Hz |
|
Prospective line Isc |
22 kA |
|
Regulation loop |
Adjustable PI regulator |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV212HU55N4
The ATV212HU55N4 is a variable speed drive within the Altivar 212 series, designed to power 3-phase asynchronous motors. Featuring an IP21 protection index and a built-in EMC filter, it operates at a rated power of up to 5.5kW / 7.5hp and a rated voltage ranging from 380V to 480V AC.
Engineered with eco-energy principles, it reduces energy consumption by up to 70% compared to conventional control systems. Utilizing cable temperature rise reduction technology, the Altivar 212 ensures immediate and disturbance-free operation, eliminating the need for additional options such as a line choke or DC choke to address current harmonics.
With dimensions of 142mm (width) x 184mm (height) x 150mm (depth) and weighing 3.35kg, it is specifically tailored for fluid management applications in tertiary sector buildings (HVAC), including heating, ventilation, air conditioning, and pumping.
Conforming to international standards such as IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, it holds certifications including CE, UL, CSA, C-Tick, and NOM.
The Altivar 212 offers optional motor chokes, which extend maximum cable lengths between the drive and motor, while limiting disturbances at the motor terminals. It is designed for vertical mounting on panels using four fixing holes.
Equipped with numerous functions and communication protocols as standard, including Modbus, METASYS N2, APOGEE FLN P1, and BACnet, it seamlessly integrates with building management systems.
