ATV212HU75M3X | Schneider Electric Variable speed drive
- Regular price
- $2,282.00
- Sale price
- $2,282.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV212HU75M3X
Description

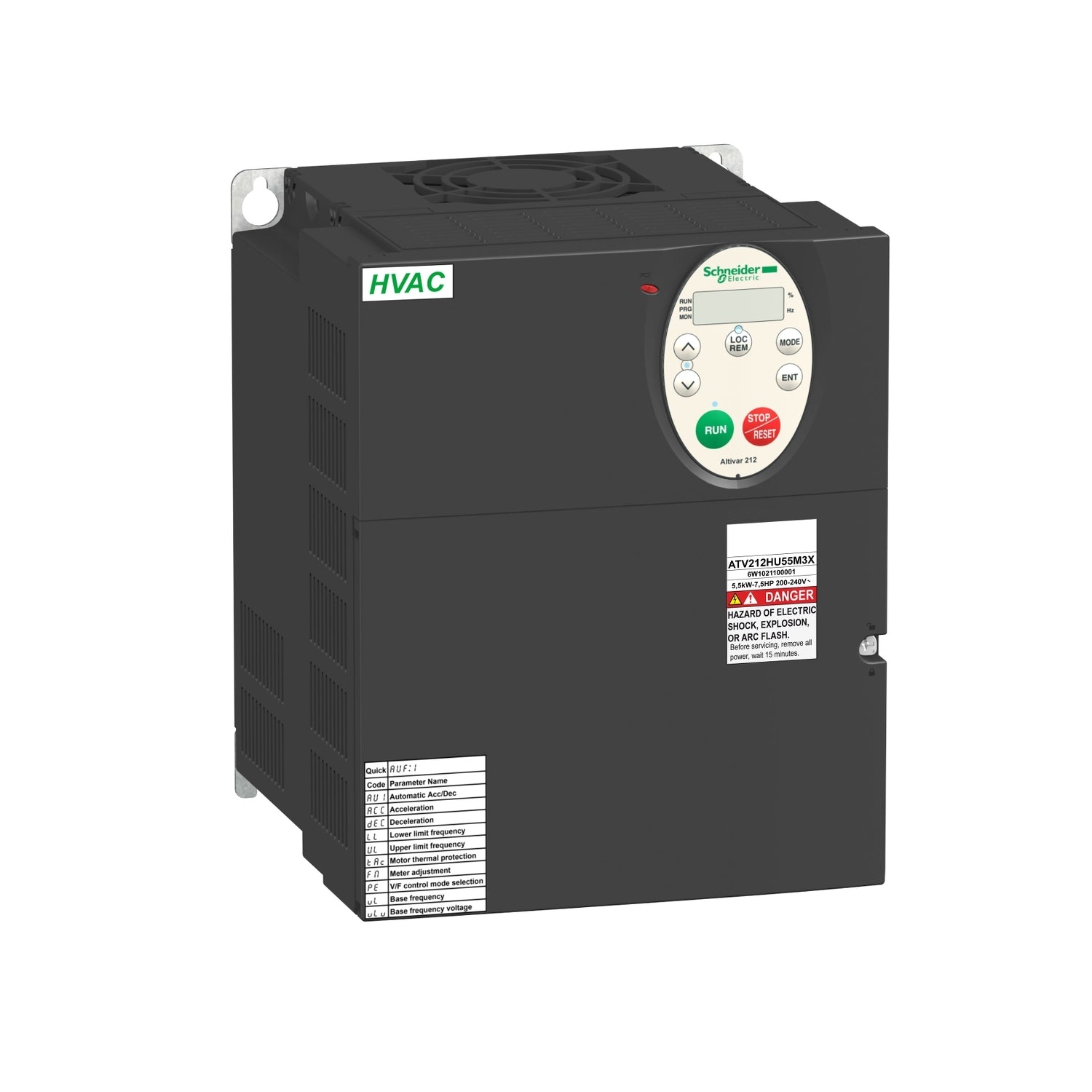

The ATV212HU75M3X is a variable speed drive from the Altivar 212 series designed for feeding 3-phase asynchronous motors. It operates at a rated power of 7.5kW / 10hp and a rated voltage ranging from 200V to 240V AC. With a protection index of IP21, it ensures reliable operation in various environments.
Featuring cable temperature rise reduction technology, this drive offers immediate, disturbance-free operation, resulting in up to 70% reduction in energy consumption compared to conventional control systems. It eliminates the need for additional options such as line choke or DC choke to handle current harmonics.
Weighing 6.1kg and with dimensions of 180mm (width) x 232mm (height) x 170mm (depth), it is specifically designed for fluid management applications in tertiary sector buildings (HVAC) including heating, ventilation, air conditioning, and pumping.
Technical Specifications
|
Part # |
ATV212HU75M3X |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
Device short name |
ATV212 |
|
Product destination |
Asynchronous motors |
|
Phase |
3 phase |
|
Motor power kW |
7.5 kW |
|
Maximum Horse Power Rating |
10 hp |
|
Supply voltage limits |
170…264 V |
|
Supply frequency |
50...60 Hz - 5...5 % Range of Product |
|
Product or Component Type |
Variable speed drive |
|
Product Specific Application |
Pumps and fans in HVAC |
|
[Us] rated supply voltage |
200...240 V - 15...10 % |
|
EMC filter |
Without EMC filter |
|
IP degree of protection |
IP21 |
|
Apparent power |
12.2 kVA 240 V |
|
Continuous output current |
32 A 230 V |
|
Maximum transient current |
35.2 A 60 s |
|
Speed drive output frequency |
0.5…200 Hz |
|
Speed range |
1…10 |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Local signalling |
For DC bus energized 1 LED (red) |
|
Output voltage |
<= power supply voltage |
|
Isolation |
Electrical between power and control Option card |
|
Communication card |
LonWorks |
|
Power dissipation in W |
346 W |
|
Air flow |
31172.86 Gal/hr(US) (118 m3/h) |
|
Specific application |
HVAC Motor power range AC-3 |
|
Motor starter type |
Variable speed drive |
|
Discrete output number |
2 |
|
Analogue input number |
2 |
|
Analogue output number |
1 |
|
Physical interface |
2-wire RS 485 |
|
Transmission Rate |
9600 bps or 19200 bps |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, 1 stop, odd even or no configurable parity |
|
Type of polarization |
No impedance |
|
Torque accuracy |
+/- 15 % |
|
Transient overtorque |
120 % of nominal motor torque +/- 10 % 60 s |
|
Nominal switching frequency |
12 kHz |
|
Braking to standstill |
By DC injection |
|
Network Frequency |
47.5...63 Hz |
|
Prospective line Isc |
22 kA |
|
Regulation loop |
Adjustable PI regulator |
|
Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
Information About ATV212HU75M3X
The ATV212HU75M3X is a variable speed drive from the Altivar 212 series manufactured by Schneider Electric. It is designed to control 3-phase asynchronous motors, offering a protection index of IP21. Operating at a rated power of up to 7.5kW / 10hp and a rated voltage ranging from 200V to 240V AC, it provides efficient power management.
With its innovative design, the Altivar 212 drive enables up to a 70% reduction in energy consumption compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional components such as line chokes or DC chokes to address current harmonics.
Weighing 6.1kg and with dimensions of 180mm (width) x 232mm (height) x 170mm (depth), the drive is specifically tailored for fluid management applications in tertiary sector buildings, including heating, ventilation, air conditioning, and pumping.
This drive complies with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions. Additionally, it holds certifications such as CE, UL, CSA, C-Tick, and NOM.
Optional motor chokes are available to extend the maximum cable lengths between the drive and the motor while limiting disturbances at the motor terminals. The drive is designed for vertical mounting (+/- 10°) on a panel, facilitated by four fixing holes.
The Altivar 212 drive integrates various functions and communication protocols as standard, including Modbus, METASYS N2, APOGEE FLN P1, and BACnet, making it compatible with a wide range of building management systems.
