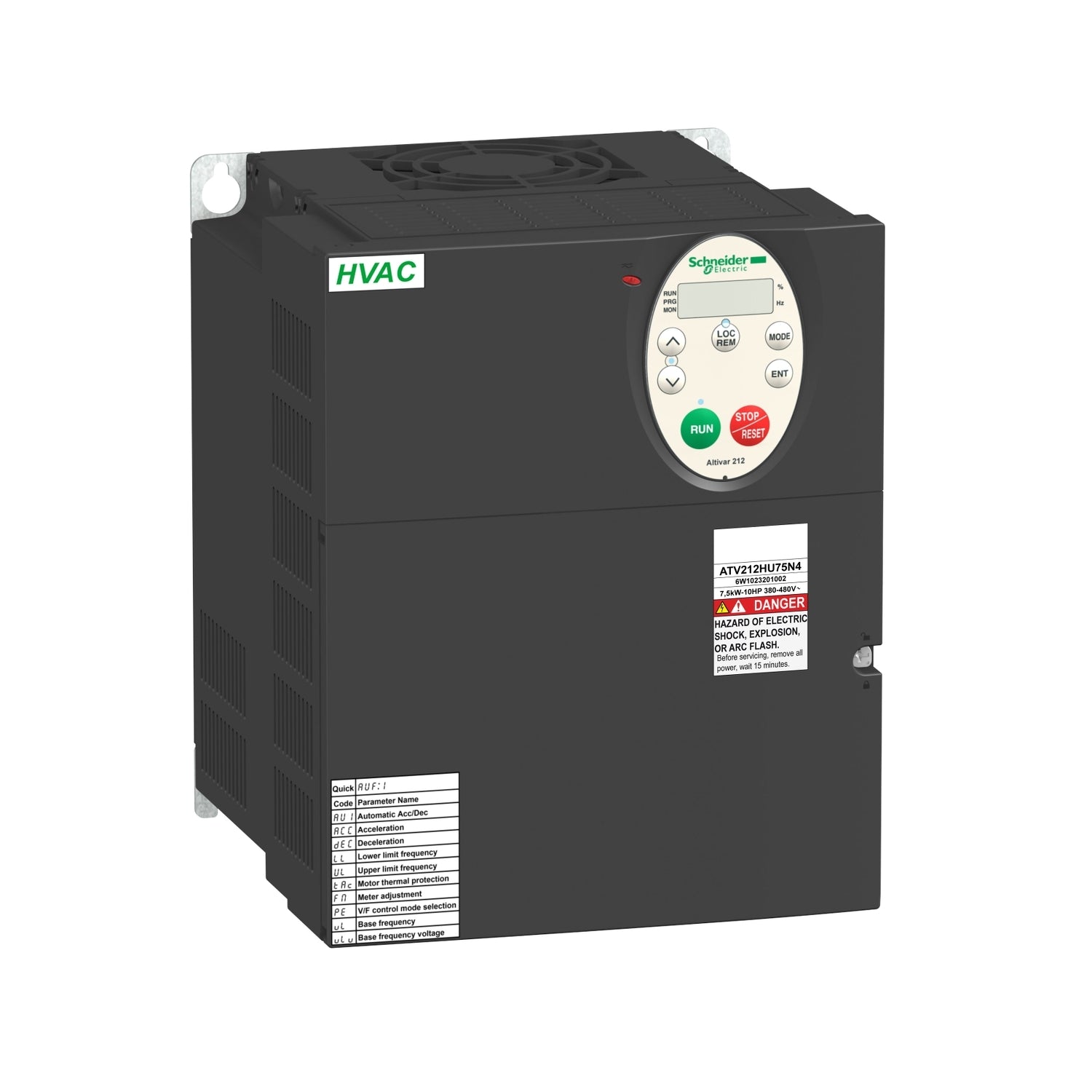

ATV212HU75N4 | Schneider Electric Variable speed drive
- Regular price
- $667.00
- Sale price
- $667.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV212HU75N4
Description
The ATV212HU75N4 is a variable speed drive within the Altivar 212 series, engineered to control 3-phase asynchronous motors. Featuring a protection index of IP21 and an integrated EMC filter, it operates at a rated power of up to 7.5kW (10hp) and a rated voltage range of 380V to 480V AC.
Designed with eco-energy principles, this drive offers a significant reduction in energy consumption, up to 70% compared to conventional control systems. Its cable temperature rise reduction technology ensures immediate and disturbance-free operation, eliminating the need for additional components like line chokes or DC chokes to manage current harmonics.
Weighing 6.45kg and measuring 180mm in width, 232mm in height, and 170mm in depth, the ATV212HU75N4 is tailored for fluid management applications in tertiary sector buildings, including heating, ventilation, air conditioning, and pumping systems.
Technical Specifications
|
Part # |
ATV212HU75N4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Drives |
|
Subcategory |
Drive |
|
Device short name |
ATV212 |
|
Product destination |
Asynchronous motors |
|
Network number of phases |
3 phases |
|
Motor power kW |
7.5 kW |
|
Motor power hp |
10 hp |
|
Supply voltage limits |
323…528 V |
|
Supply frequency |
50...60 Hz - 5...5 % |
|
Range of product |
Altivar 212 |
|
Product or component type |
Variable speed drive |
|
Product specific application |
Pumps and fans in HVAC |
|
[Us] rated supply voltage |
380...480 V - 15...10 % |
|
EMC filter |
Class C2 EMC filter integrated |
|
IP degree of protection |
IP21 |
|
Apparent power |
12.2 kVA at 380 V |
|
Continuous output current |
16 A at 380 V |
|
Maximum transient current |
17.6 A for 60 s |
|
Speed drive output frequency |
0.5…200 Hz |
|
Speed range |
1…10 |
|
Speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn |
|
Local signalling |
1 LED (red) for DC bus energized |
|
Output voltage |
<= power supply voltage |
|
Isolation |
Electrical between power and control Option card |
|
Communication card for LonWorks |
Power dissipation in W |
|
Air flow |
100 m3/h |
|
Functionality |
Mid |
|
Specific application |
HVAC |
|
Analogue output number |
1 |
|
Physical interface |
2-wire RS 485 |
|
Transmission rate |
9600 bps or 19200 bps |
|
Transmission frame |
RTU |
|
Number of addresses |
1…247 |
|
Data format |
8 bits, 1 stop, odd even or no configurable parity |
|
Type of polarization |
No impedance |
|
Torque accuracy |
+/- 15 % |
|
Transient overtorque |
120 % of nominal motor torque +/- 10 % for 60 s |
|
Nominal switching frequency |
12 kHz |
|
Braking to standstill |
By DC injection |
|
Network frequency |
47.5...63 Hz |
|
Prospective line Isc |
22 kA |
|
Regulation loop |
Adjustable PI regulator |
|
Ambient air temperature for storage |
-25…70 °C |
Information About ATV212HU75N4
The ATV212HU75N4 is a variable speed drive from the Altivar 212 series, capable of powering 3-phase asynchronous motors. Featuring an IP21 protection index and a built-in EMC filter, it operates within a rated power range of 7.5kW (10hp) and a rated voltage spanning from 380V to 480V AC.
Designed with eco-energy principles, this drive boasts a reduction in energy consumption of up to 70% compared to conventional control systems. Utilizing cable temperature rise reduction technology, it ensures immediate and disturbance-free operation, eliminating the need for additional components such as line chokes or DC chokes to manage current harmonics.
Weighing 6.45kg and measuring 180mm in width, 232mm in height, and 170mm in depth, the ATV212HU75N4 is specifically engineered for fluid management applications in tertiary sector buildings, including heating, ventilation, air conditioning, and pumping systems.
In compliance with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 for immunity and conducted and radiated EMC emissions, it holds certifications including CE, UL, CSA, C-Tick, and NOM.
Optional motor chokes are available to extend maximum cable lengths between the drive and the motor while minimizing disturbances at the motor terminals.
Installation options include vertical mounting on a panel utilizing four fixing holes. Furthermore, the Altivar 212 drive seamlessly integrates with building management systems, thanks to its comprehensive functionality and communication protocols, including Modbus, METASYS N2, APOGEE FLN P1, and BACnet, all integrated as standard features.
