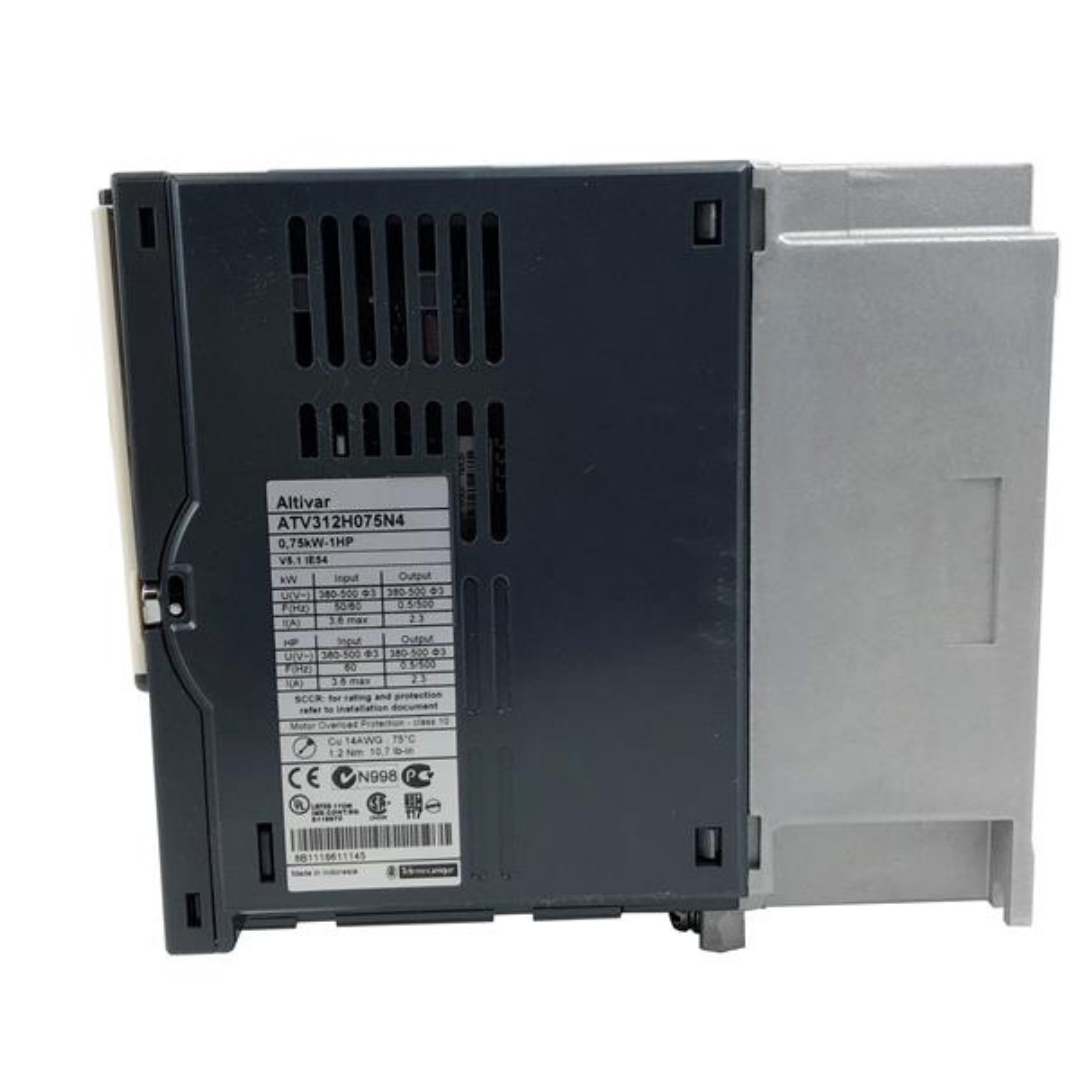

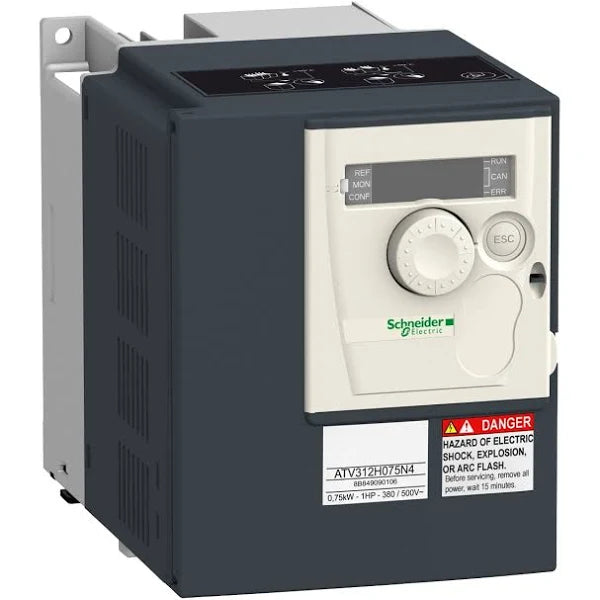

ATV312H075N4 | Schneider Electric Drive, 3-Phase, 480VAC, 2.3A, 1HP, 0.75kW, IP20, Altivar 312
- Regular price
- $404.00
- Sale price
- $404.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV312H075N4
Description
The ATV312HU75N4 is a high-performance variable frequency drive manufactured by Schneider Electric. It is part of the ATV312 series and is designed for use in industrial applications that require precise motor control and energy efficiency.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Schneider Electric |
| Part Number | ATV312H075N4 |
| Type | AC Drives |
| Component | Variable speed drive |
| Destination | Asynchronous motor |
| Application | Simple machine |
| Assembly | w/ Heat sink |
| Motor power | 7.5 kW |
| Rated HP | 10 Hp |
| Rated supply voltage | 380...500 V - 15...10 % |
| Supply freq. | 50...60 Hz - 5...5 % |
| Phases | 3 Phases |
| Line current | 27.7 A at 380 V, Isc = 22 kA 21 A at 500 V |
| EMC filter | Integrated |
| Apparent power | 18 kVA |
| Max trans current | 25.5 A for 60 s |
| Speed range | 1…50 |
| Communication | CANopen, Modbus |
| IP Protection | IP20 |
Information About ATV312H075N4
One of the key features of this drive is its ability to provide precise control over motor speed and torque. It uses a vector control algorithm to regulate motor performance, which enables it to maintain stable operation even under changing load conditions. The ATV312HU75N4 also has a built-in PID controller that allows for closed-loop control of motor speed and position.
This drive has a power rating of 7.5 kilowatts (kW) and is suitable for use with three-phase motors. It is capable of operating at a range of voltages from 380 to 500 volts AC and has a maximum output frequency of 500 hertz (Hz). The ATV312HU75N4 also has a built-in EMC filter that ensures compliance with international electromagnetic compatibility standards.
To simplify installation and configuration, the ATV312HU75N4 has a user-friendly control panel with an LCD and keypad. The display provides real-time feedback on the drive's operating status, while the keypad allows users to adjust parameters such as motor speed and acceleration/deceleration rates.
In addition to its control capabilities, the ATV312HU75N4 also incorporates a range of protection features to ensure safe and reliable operation. It has built-in overload protection that monitors motor current and automatically reduces output power if necessary to prevent damage. The drive also has short-circuit protection that can detect and respond to faults in the motor or power supply.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
