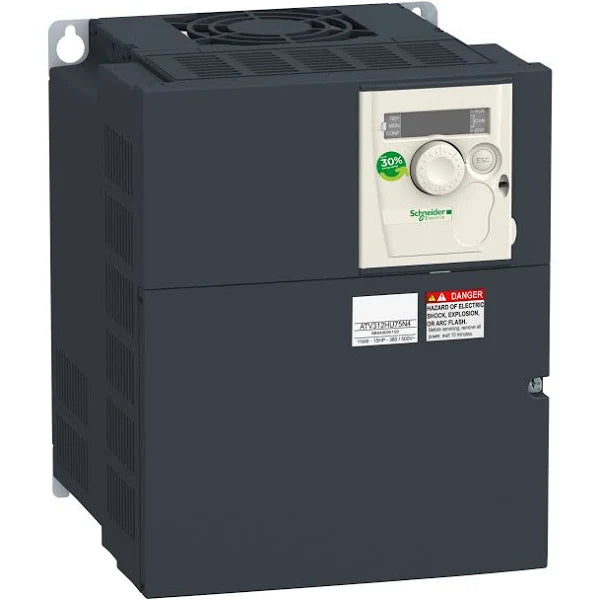

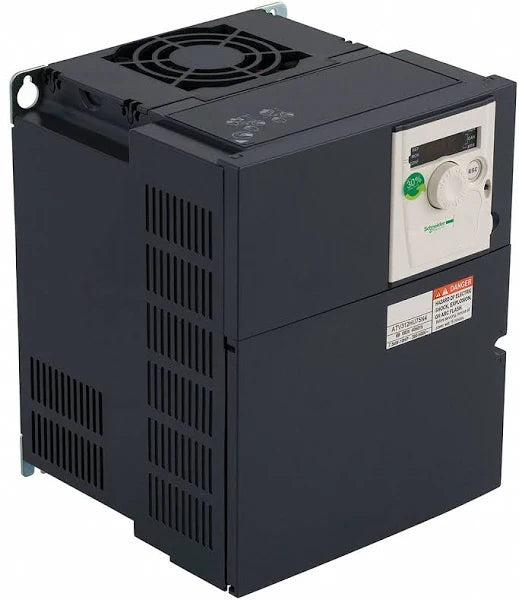

ATV312HU55M3 | Schneider Electric Variable speed drive ATV312 - 5.5kW - 12.8kVA - 292W - 200..240V- 3-phase supply
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ATV312HU55M3
Description
This Altivar 312 3-phase variable speed drive has a rated power of 5.5kW, 12.8kVA, and a 200V to 240V AC rated output voltage. It is suitable for industrial machines such as materials handling and packaging, packing, textile machines, special machines, pumps and fans. It has a compact form-factor with 180mm width, allowing for a flexible and easy installation on a mounting plate. It also offers a snap-lock seal, status and faults display and a jog dial navigation button. It offers high readability of key parameters thanks to a bright LED 4-digit display. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | ATV312HU55M3 |
| Type | AC Drives |
| Range | ATV312 |
| Component | Variabel speed drive |
| Application | Simple machine |
| Motor power | 5.5 kW |
| Destination | Asynchronous motors |
| Hp motor power | 7.5 hp |
| Phase | 3-Phase |
| Supply Voltage | 200...240 V (- 15...10 %) |
| Assembly | with Heat sink |
| Line current | 32 Afor 240 V 36.8 Afor 200 V, 22 kA |
| EMC filter | No |
| Speed range | 1…50 |
| Power dissipation | 292 W at nominal load |
| Apparent power | 12.8 kVA |
Information About ATV312HU55M3
Operation
With a motor power of 5.5 kW (equivalent to 7.5 hp), the ATV312HU55M3 operates with a rated supply voltage of 200 to 240 V with a tolerance of -15% to +10%. The supply frequency is between 50 to 60 Hz with a tolerance of -5% to +5%. It is a three-phase VSD with a line current of 32 A for 240 V and 36.8 A for 200 V. The device comes with a built-in heat sink for efficient heat dissipation.
The VSD utilizes a sensorless flux vector control with a PWM (Pulse Width Modulation) type motor control signal, which provides precise control over the speed and torque of the connected motor. The speed range of the VSD can be adjusted between 1 to 50, making it versatile for different applications.
Connections
For electrical connections, the ATV312HU55M3 has various terminals, such as Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1 to LI6, with appropriate wire sizes (AWG 14 for LI1 to LI6, and AWG 6 for other terminals). It also features an internal supply for logic inputs and a reference potentiometer.
Communication
The VSD supports communication via various protocols, including CANopen and Modbus, allowing it to integrate into industrial automation systems seamlessly. Its IP20 degree of protection on the upper part without a cover plate, IP21 on connection terminals, IP31 on the upper part, and IP41 on the upper part ensures adequate protection against dust and small particles.
Performance
In terms of performance, the ATV312HU55M3 offers a continuous output current of 27.5 A at 4 kHz and a maximum transient current of 41.3 A for 60 seconds. It has a nominal switching frequency of 4 kHz, which can be adjusted between 2 to 16 kHz. The device also provides various protection features, such as input phase breaks, line supply overvoltage and undervoltage safety circuits, motor phase breaks, and more.
Interface
To facilitate monitoring and operation, the VSD is equipped with LEDs and a four 7-segment display unit to indicate drive voltage and CANopen bus status. The parameter setting and configuration can be done through the RJ45 Modbus/CANopen interface.
Features
In terms of environmental conditions, the ATV312HU55M3 operates optimally in an ambient air temperature range of 14 to 122°F (-10 to 50°C) without derating when a protective cover is present, and up to 140°F (60°C) with derating when there's no protective cover. It is designed to withstand various environmental factors like vibration, shock, humidity, and altitude.
As part of Schneider Electric's commitment to sustainability, the ATV312HU55M3 is designated as a Green Premium product, complying with their internal standards and certifications like CSA, C-Tick, DNV, GOST, NOM, and UL.
Overall, the ATV312HU55M3 is a versatile and robust Variable Speed Drive, suitable for a wide range of applications where precise motor control and reliable performance are essential. Its advanced features, communication options, and protection mechanisms make it a valuable component in industrial automation and control systems.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
